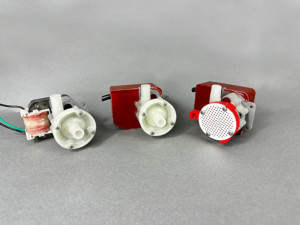

March Pump Series 1 are centrifugal magnetic drive pumps which have a maximum flow of 3GPM and a maximum head of 4.6 feet. They are available in Noryl, Polypropylene, and Kynar materials. They are available with 3/8 or 1/2 inch inlets and outlets. It has a 1/200 horsepower motor, in 115V or 230V. Submersible models are an additional option.
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 2.3 GPM | 7.5 LPM |
| Max Head | 4.6 FT | 1 M |
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 3/8"OD
Outlet: 3/8"OD
Material: Polypropylene (Front Housing, Rear Housing, Impeller), Buna N (O-Ring), Carbon/Teflon (Thrust Washer), 316 Stainless Steel (Shaft)
Submersible: Yes
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 3 GPM | 9 LPM |
| Max Head | 4.6 FT | 1 M |
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 1/2"OD
Outlet: 1/2"OD
Material: Polypropylene (Front Housing, Rear Housing, Impeller), Buna N (O-Ring), Carbon/Teflon (Thrust Washer), 316 Stainless Steel (Shaft)
Submersible: Yes
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 3 GPM | 9 LPM |
| Max Head | 4.6 FT | 1 M |
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 1/4"MPT
Outlet: 1/4"MPT
Material: Polypropylene (Front Housing, Rear Housing, Impeller), Buna N (O-Ring), Carbon/Teflon (Thrust Washer), 316 Stainless Steel (Shaft)
Submersible: Yes
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 3 GPM | 9 LPM |
| Max Head | 4.6 FT | 1 M |
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: Screen
Outlet: 1/4"MPT
Material: Polypropylene (Cover, Screen, Rear Housing, Impeller), Buna N (O-Ring), Carbon/Teflon (Thrust Washer), 316 Stainless Steel (Shaft)
Submersible: Yes
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 2.3 GPM | 7.5 LPM |
| Max Head | 4.6 FT | 1 M |
Electrical/Air: 115V 60Hz or 230V 50/60Hz
Inlet: 3/8"OD
Outlet: 3/8"OD
Material: Polypropylene (Front Housing, Rear Housing, Impeller), Buna N (O-Ring), Carbon/Teflon (Thrust Washer), 316 Stainless Steel (Shaft)
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 3 GPM | 9 LPM |
| Max Head | 4.6 FT | 1 M |
Electrical/Air: 115V 60Hz or 230V 50/60Hz
Inlet: 1/2"OD
Outlet: 1/2"OD
Material: Polypropylene (Front Housing, Rear Housing, Impeller), Buna N (O-Ring), Carbon/Teflon (Thrust Washer), 316 Stainless Steel (Shaft)
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 3 GPM | 9 LPM |
| Max Head | 4.6 FT | 1 M |
Electrical/Air: 115V 60Hz or 230V 50/60Hz
Inlet: 1/4"MPT
Outlet: 1/4"MPT
Material: Polypropylene (Front Housing, Rear Housing, Impeller), Buna N (O-Ring), Carbon/Teflon (Thrust Washer), 316 Stainless Steel (Shaft)
