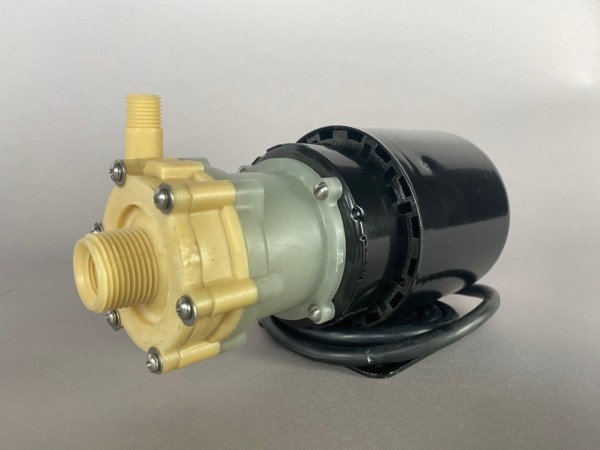

March Pump Series 2 are centrifugal magnetic drive pumps which have a maximum flow of 5GPM and a maximum head of 13 feet. They are available in Polypropylene and Glass Filled Kynar. They are available with 3/8 and 3/4 inch inlets and 1/2 inch outlets. They have a 1/35 and 1/40 horsepower motors, in 115V or 230V. Submersible models, Air Power motors, and DC motors in Brushtype and Brushless 12V or 24V are also available.
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 5 GPM | 18.5 LPM |
| Max Head | 13 FT | 2.7 M |
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 3/8"FPT & 3/4"MPT
Outlet: 1/4"MPT
Material: Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), Stainless Steel (Shaft), Ceramic (Thrust Washer), Ceramic Magnet
Submersible: Yes
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 5 GPM | 18.5 LPM |
| Max Head | 13 FT | 2.7 M |
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 3/8"FPT & 3/4"MPT
Outlet: 1/4"MPT
Material: Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), 316 Stainless Steel (Shaft, Cooling Tube), Buna N (Cooling Tube Seal), Ceramic (Thrust Washer), Ceramic Magnet
Submersible: Yes
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 5 GPM | 18.5 LPM |
| Max Head | 13 FT | 2.7 M |
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 3/4"OD
Outlet: 1/2"OD
Material: Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washer), Ceramic Magnet
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 5 GPM | 18.5 LPM |
| Max Head | 13 FT | 2.7 M |
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 3/8"FPT & 3/4"MPT
Outlet: 1/4"MPT
Material: Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washer), Ceramic Magnet
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 5 GPM | 18.5 LPM |
| Max Head | 13 FT | 2.7 M |
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 3/4"OD
Outlet: 1/2"OD
Material: Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washer)
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 5 GPM | 18.5 LPM |
| Max Head | 13 FT | 2.7 M |
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 3/8"FPT & 3/4"MPT
Outlet: 1/4"MPT
Material: Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washer)
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 5 GPM | 18.5 LPM |
| Max Head | 13 FT | 2.7 M |
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 3/8"FPT & 3/4"MPT
Outlet: 1/4"MPT
Material: Glass Filled Kynar (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washer)
| System | US | Metric |
|---|---|---|
| Max Flow | 6 GPM | 22.7 LPM |
| Max Head | 15 FT | 4.6 M |

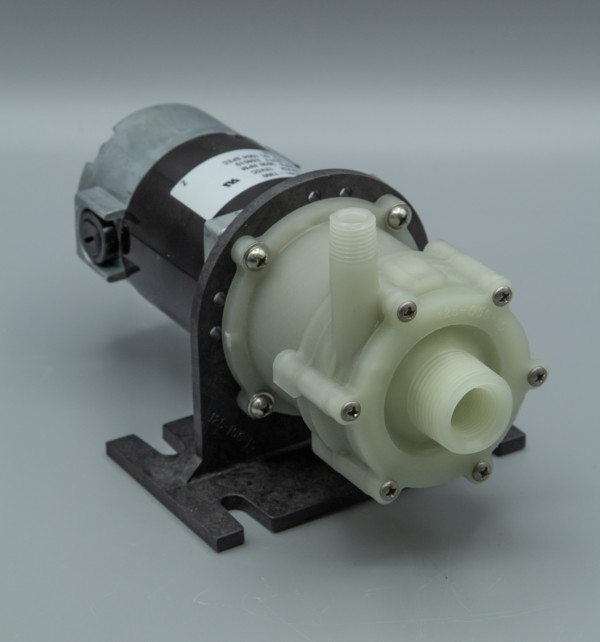

Electrical/Air: 12V (Voltage Range 0-14) or 24V (Voltage Range 0-26)
Inlet: 3/8"FPT & 3/4"MPT
Outlet: 1/4"MPT
Material: Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washer)
| System | US | Metric |
|---|---|---|
| Max Flow | 6 GPM | 22.7 LPM |
| Max Head | 29 FT | 8.8 M |
Electrical/Air: 24V (Voltage Range 14-30)
Inlet: 3/8"FPT & 3/4"MPT
Outlet: 1/4"MPT
Material: Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washer)
| System | US | Metric |
|---|---|---|
| Max Flow | 7.2 GPM | 27.2 LPM |
| Max Head | 40 FT | 12.1 M |
Electrical/Air: 23PSI and 4CFM
Inlet: 3/8"FPT & 3/4"MPT
Outlet: 1/4"MPT
Material: Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washer)
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 7.2 GPM | 27.2 LPM |
| Max Head | 40 FT | 12.1 M |
Electrical/Air: 23PSI and 4CFM
Inlet: 3/8"FPT & 3/4"MPT
Outlet: 1/4"MPT
Material: Glass Filled Kynar (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washer)
