March Chemical Pumps for DI Water
If you are seeking a pump for the liquid Deionized or DI Water, then March Pumps has many choices! From 5 GPM to 200 GPM, March Pumps has a pump for DI Water for any application.
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 5 GPM | 18.5 LPM |
| Max Head | 13 FT | 2.7 M |
| System | US | Metric |
|---|---|---|
| Max Flow | 6 GPM | 22.7 LPM |
| Max Head | 29 FT | 8.8 M |
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 8 GPM | 30 LPM |
| Max Head | 16 FT | 3.5 M |
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 8 GPM | 30 LPM |
| Max Head | 16 FT | 3.5 M |
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 10 GPM | 33 LPM |
| Max Head | 20.5 FT | 4.5 M |
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 14 GPM | 50 LPM |
| Max Head | 21.5 FT | 4.7 M |
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 18 GPM | 60.5 LPM |
| Max Head | 29 FT | 6.3 M |
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 30 GPM | 102 LPM |
| Max Head | 41 FT | 9 M |
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 38 GPM | 113.5 LPM |
| Max Head | 49 FT | 11 M |
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 53 GPM | 180 LPM |
| Max Head | 60 FT | 12.3 M |
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 82 GPM | 268 LPM |
| Max Head | 85 FT | 18 M |
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 120 GPM | 400 LPM |
| Max Head | 95 FT | 20 M |
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 200 GPM | 654 LPM |
| Max Head | 160 FT | 34.1 M |
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 3.3 GPM | 11.3 LPM |
| Max Head | 40 FT | 8.8 M |
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 12 GPM | 37.8 LPM |
| Max Head | 68 FT | 14.6 M |
Choosing a DI Water Industrial Pump
Water contains ions, or charged particles, which can add to its makeup. The ions in water can include anything from Sodium to Calcium or Magnesium. In some situations, these ions – and others like them – can be beneficial, however deionizing water is often necessary for many industrial systems and applications.
The charge of ions found within water can create a hurdle in certain chemical processes, making deionization necessary. Deionizing water can help to avoid the reactivity that is potentially caused by certain chemicals’ presence in water. Our pumps for deionization may help clients who require deionized water in a wide range of manufacturing and industrial contexts. If pumping DI Water at room temperature, it is recommended to go with a centrifugal sealless magnetic drive chemical pump made from plastic with a encapsulated impeller.
Mag Drive Pumps for DI Water

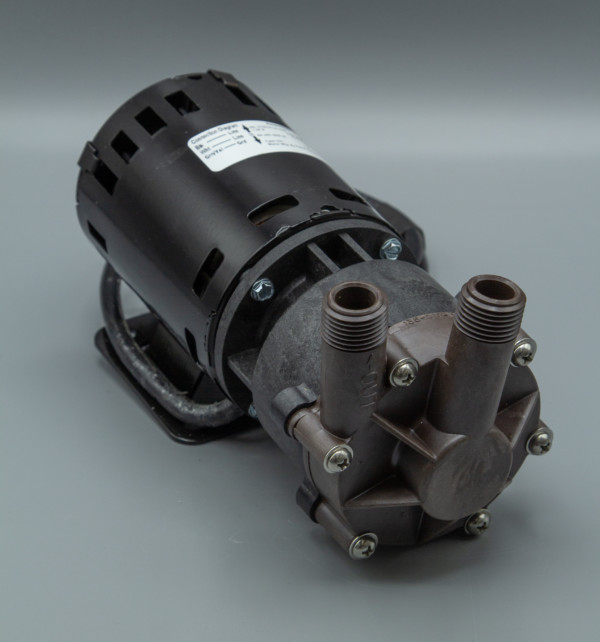

March Pump offers several options for chemical pumps that can be used to deionize water. The MDX-MT3 magnetic drive pump is a great example of a pump meant to accommodate water deionization, with a maximum flow of eight gallons per minutes and a maximum head of sixteen feet.

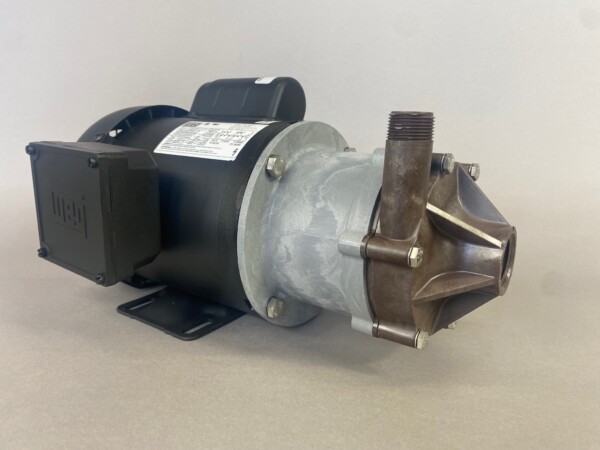

Other great options for water deionization include the BC-3CP-MD Magnetic Drive Pump and the TE-8C-MD Magnetically Coupled Pump. The team of pump experts at March regularly helps clients understand which pumps would be best for their situation and purposes. All of March’s chemical pumps used for deionization include magnetically coupled or magnetic drive pumps that have a wide range of maximum flows and heads. Of course, these are only some of the pumps that can handle these chemicals. The following chemical pumps are a good place to start looking at when pumping DI Water:
Higher concentrations and higher temperatures may make the pumps listed above unsuitable. It is highly recommended, regardless of the temperature or concentration, that you contact a local distributor or March Pump directly to review your application before ordering a pump.
What Industries and Applications Handle DI Water?
DI water is widely used across numerous industries. We learn about new applications of DI water all of the time. In general, here are some of the ways DI water is used to help improve manufacturing and other processes:
- Semiconductor manufacturing – Due to the low levels of contaminants in DI water, the semiconductor industry often uses it for manufacturing purposes. Specifically, it is used in the wafer fabrication and assembly processes. It often has other uses as well. To ensure the maximum benefit of DI water use, reliable pumps are essential. Deionized water is also commonly used in engine cooling systems as it helps prolong the life of the system.
- Plating and other chemical processing – DI water is often used for plating purposes, along with a variety of other chemical processing purposes. Specifically, it is often used for electroplating purposes. Plating helps reduce the risk of corrosion and adds decorative value. DI water (and the reliable pumping and distribution of DI water) is a key component in the electroplating process for many manufacturers and chemical processors.
- Lasers – DI water is used as an alternative to distilled water (in many cases) as a coolant for water cooled laser tubes.
- Medical equipment – DI water has sterilization benefits. Consequently, many medical providers use DI water to safely sterilize medical equipment after use. This is done by heating the DI water to high temperatures.
- Laboratory instrumentation – Similar to its use in hospitals and other medical facilities, DI water is also regularly used in laboratories to clean lab instruments. It is also used for lab instrument manufacturing in many cases.
- Pharmaceutical production – Pharmaceutical companies often use DI water to keep their production equipment clean and decontaminated. It also helps prevent corrosion of equipment to ensure its optimal longevity.
- Cosmetics – Many cosmetic providers use DI water to help ensure the quality of the finished products. It also helps maximize the shelf life of many cosmetic products.
- Food processing – In some cases, DI water is used for food processing purposes due to its cleanliness and ability to help with preservation.
What Materials can Best Handle DI Water?
We provide Polypropylene and Kynar chemical pumps. We also offer chemical pumps for DI water that are made of Ryton material as well, which may be suitable in certain situations. These materials are known to be the best in the industry. They are highly resistant to corrosion and general wear and tear. These materials can also handle all levels of concentration, temperature, and pressure. With that said, we strongly advise contacting us for assistance choosing the right model for your needs.
Pumping Considerations for DI Water
We recommend a centrifugal sealless magnetic drive chemical pump made up of Plastic with Encapsulated Impeller. As mentioned, BC-3CP-MD Magnetic Drive Pump and the TE-8C-MD Magnetically Coupled Pump are reliable solutions as well. We strongly advise speaking with one of our representatives about the specifics of your chemical pump needs. We can evaluate all pumping considerations and provide a more precise recommendation.
Why March Pumps are the Best Pumps to Transfer DI Water
March Pumps offers reliable and proven chemical pumps for DI water. This ensures you get the most benefit out of DI water, regardless of the specific purpose. We offer dozens of chemical pump models that work well for DI water use. They are highly resistant to corrosion and can handle all flow levels reliably. Reach out to us today for more information about chemical pumps for DI water. Our representatives are more than happy to answer your questions and assist you through the purchasing and installation processes.
