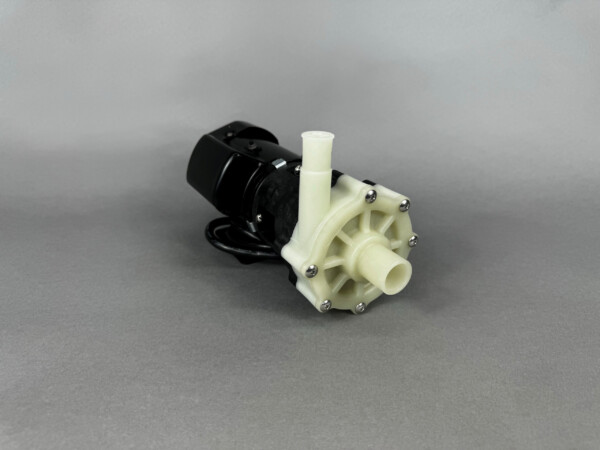

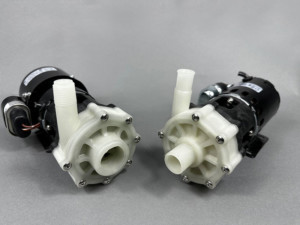

March Pump Series 4 are centrifugal magnetic drive pumps which have a maximum flow of 14GPM and a maximum head of 21.5 feet. They are available in Polypropylene and Kynar materials. They are available with 1 inch inlets and 1/2 inch outlets. They use a 1/12 horsepower motor, and are available in 115V or 230V. Air Power motors are an additional option.
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 14 GPM | 50 LPM |
| Max Head | 21.5 FT | 4.7 M |
Electrical/Air: 115V 50/60Hz
Inlet: 1"OD
Outlet: 3/4"OD
Material: Polypropylene (Front and Rear Housing, Impeller), Buna N (O-Ring), Ceramic (Shaft, Thrust Washers), Ceramic Magnet
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 14 GPM | 50 LPM |
| Max Head | 21.5 FT | 4.7 M |
Electrical/Air: 115V 50/60Hz
Inlet: 1"FPT
Outlet: 1/2"MPT
Material: Polypropylene (Front and Rear Housing, Impeller), Buna N (O-Ring), Ceramic (Shaft, Thrust Washers), Ceramic Magnet
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 14 GPM | 50 LPM |
| Max Head | 21.5 FT | 4.7 M |
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 1"OD
Outlet: 3/4"OD
Material: Polypropylene (Front and Rear Housing, Impeller), Ceramic (Shaft, Thrust Washers), Viton (O-Ring)
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 14 GPM | 50 LPM |
| Max Head | 21.5 FT | 4.7 M |
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 1"FPT
Outlet: 1/2"MPT
Material: Polypropylene (Front and Rear Housing, Impeller), Ceramic (Shaft, Thrust Washers), Viton (O-Ring)
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 14 GPM | 50 LPM |
| Max Head | 21.5 FT | 4.7 M |
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 1"FPT
Outlet: 1/2"MPT
Material: Kynar (Front and Rear Housing, Impeller), Ceramic (Shaft, Thrust Washers), Viton (O-Ring)
| System | US | Metric |
|---|---|---|
| Max Flow | 18 GPM | 68 LPM |
| Max Head | 50 FT | 15.2 M |
Electrical/Air: 65 PSI and 8CFM
Inlet: 1"FPT
Outlet: 1/2"MPT
Material: Polypropylene (Front and Rear Housing, Impeller), Ceramic (Shaft, Thrust Washers), Viton (O-Ring)
| System | US | Metric |
|---|---|---|
| Max Flow | 18 GPM | 68 LPM |
| Max Head | 50 FT | 15.2 M |
Electrical/Air: 65 PSI and 8CFM
Inlet: 1"OD
Outlet: 3/4"OD
Material: Polypropylene (Front and Rear Housing, Impeller), Ceramic (Shaft, Thrust Washers), Viton (O-Ring)
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 14 GPM | 50 LPM |
| Max Head | 21.5 FT | 4.7 M |
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 1"MPT (Self Priming Chamber)
Outlet: 1/2"MPT (Pump Outlet
Material: Polypropylene (Front and Rear Housing, Impeller), Ceramic (Shaft, Thrust Washers), Viton (O-Ring), High Density Polyethylene (750 Self Priming Chamber)
