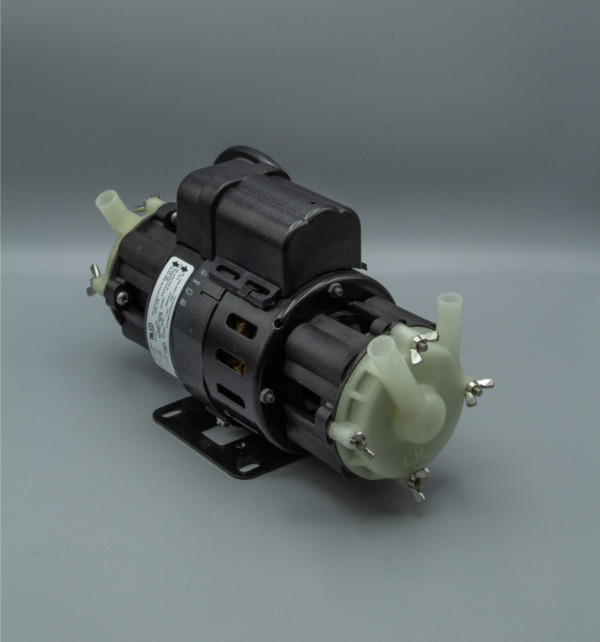

March Pump Series 802 Dual Head is centrifugal magnetic drive pumps which has a maximum flow of 8GPM and a maximum head of 16.5 feet. They are available in a combination of plastics. It has ½ inch by ½ inch connections. They use a 1/8 horsepower 230V motor.
Liters per minute (LPM) and Meters (M) are given when run at 50Hz, except when pump is equipped with Air or DC motors.
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 8 GPM | 26 LPM |
| Max Head | 16.5 FT | 3.9 M |
Electrical/Air: 1Ph 230V 50/60Hz
Inlet: 1/2"OD
Outlet: 1/2'OD
Material: Polypropylene (Front Housing, Impeller), Carbon Filled Kynar (Rear Housing), Ryton/Teflon/Carbon (Thrust Washer), Ethylene Propylene (O-Ring), 316 Stainless Steel (Screw), Ceramic Magnet
