Seeking a PVDF Pump, March Pump has many choices! The smallest PVDF pump has a maximum flow of 8GPM and the largest has a maximum flow of 200GPM. PVDF is also known as Polyvinylidene Fluoride or Kynar.
PVDF is known for its superior chemical resistance. Kynar Pumps are commonly used for chemicals such as Fresh Water, Salt Water, DI Water, Amyl Acetate, Benzene Sulfonic Acid, Citric Acid, Diesel Fuel, Fluosilicic Acid, Formaldehyde, Muratic Acid, Hydrofluoric Acid, Nitric Acid, Phosphoric Acid, Potassium Permanganate, Sodium Hypochlorite, Sulfuric Acid, and many more.

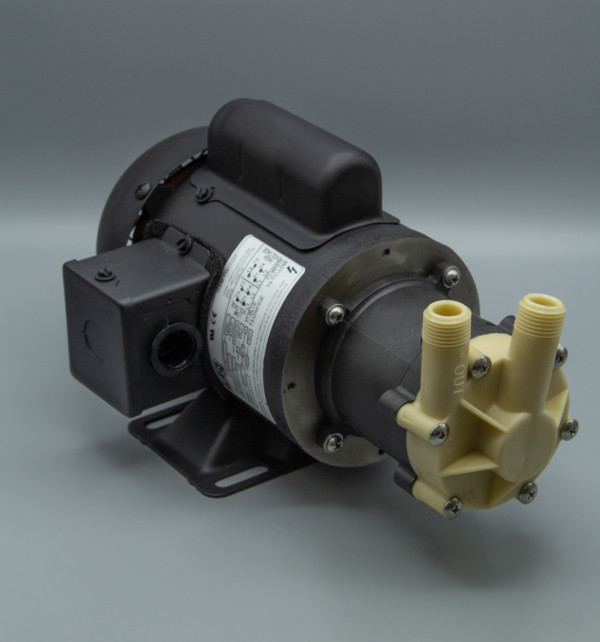

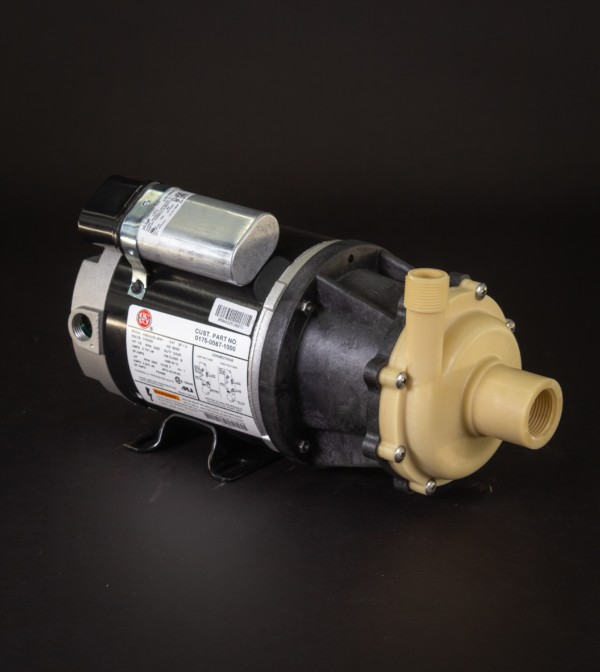

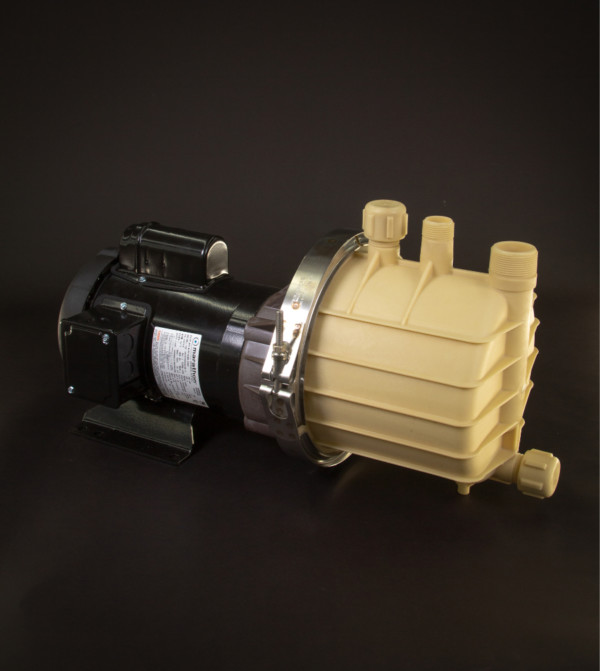

The following chemical pump housings and impellers are made from Kynar or at least partially from PVDF.
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 8 GPM | 30 LPM |
| Max Head | 16 FT | 3.5 M |
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 10 GPM | 35 LPM |
| Max Head | 17 FT | 3.7 M |
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 10 GPM | 33 LPM |
| Max Head | 20.5 FT | 4.5 M |
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 14 GPM | 50 LPM |
| Max Head | 21.5 FT | 4.7 M |
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 18 GPM | 60.5 LPM |
| Max Head | 29 FT | 6.3 M |
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 30 GPM | 102 LPM |
| Max Head | 41 FT | 9 M |
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 30 GPM | 102 LPM |
| Max Head | 41 FT | 9 M |
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 38 GPM | -- |
| Max Head | 49 FT | -- |
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 38 GPM | 113.5 LPM |
| Max Head | 49 FT | 11 M |
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 53 GPM | 180 LPM |
| Max Head | 60 FT | 12.3 M |
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 53 GPM | 180 LPM |
| Max Head | 52 FT | 11 M |
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 82 GPM | 268 LPM |
| Max Head | 85 FT | 18 M |
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 120 GPM | 400 LPM |
| Max Head | 95 FT | 20 M |
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 200 GPM | 654 LPM |
| Max Head | 160 FT | 34.1 M |
Listing of March Pump PVDF Distributors
PVDF is a registered trademark of Arkema Inc.
Warranty
March pumps are guaranteed against defects in materials or workmanship for one year from the date of manufacture. Warranty will be extended for up to one year from the date of purchase, provided that the warranty card is returned to the factory within 10 days of the purchase date.
In all events, liability is limited to the purchase price and to the replacement or repair of any pump or parts defective in materials or workmanship. All pumps for which a warranty claim is made must be returned to the factory with shipping costs prepaid. This warranty is void if the pump has been subjected to misuse or negligence. This warranty applies only to pumps used to pump water. For applications with all other solutions, contact the factory for verification of warranty terms before the pump is installed.
