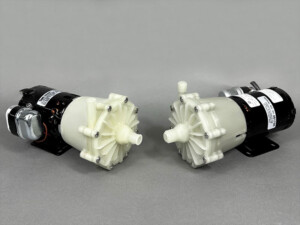

March Pump Series 320 are centrifugal magnetic drive pumps which have a maximum flow of 3.3GPM and a maximum head of 40 feet. They are available in Polypropylene. They are available with 1/2 inch inlets and a 3/8 inch outlets. They use a 1/12 horsepower motor, and are available in 115V or 230V.
Liters per minute (LPM) and Meters (M) are given when run at 50Hz, except when pump is equipped with Air or DC motors.

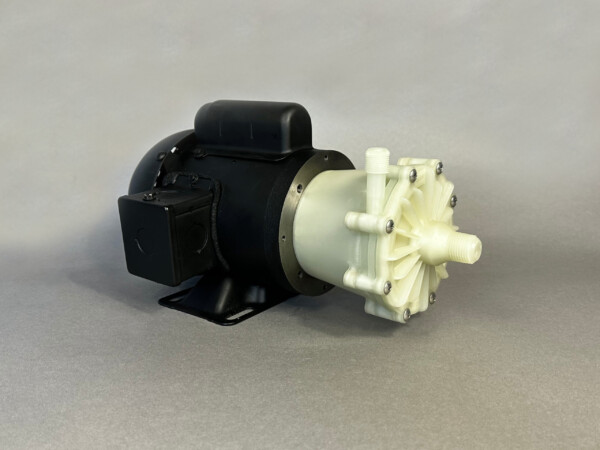

320-CP-MD Magnetic Drive Pump
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 3.3 GPM | 11.3 LPM |
| Max Head | 40 FT | 8.8 M |
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Material: Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft and Thrust Washer)

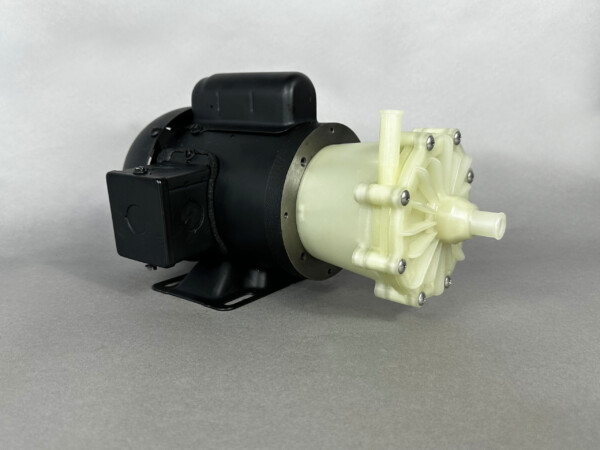

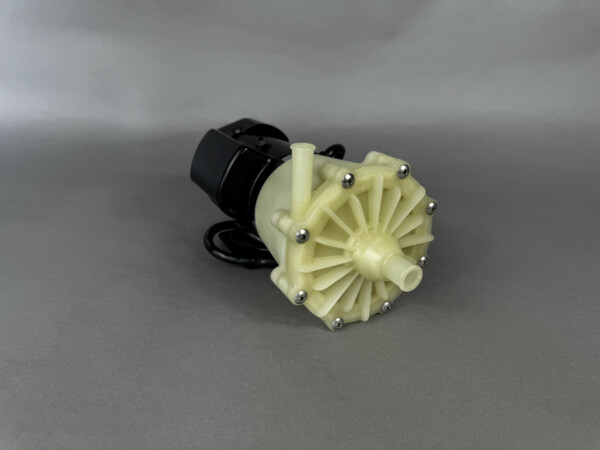

320-AP-MD Magnetic Drive Pump
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 3.3 GPM | 11.3 LPM |
| Max Head | 40 FT | 8.8 M |
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Material: Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft and Thrust Washer)
