March Pump Less Motor Help

Video:

How to Assemble a March Pump

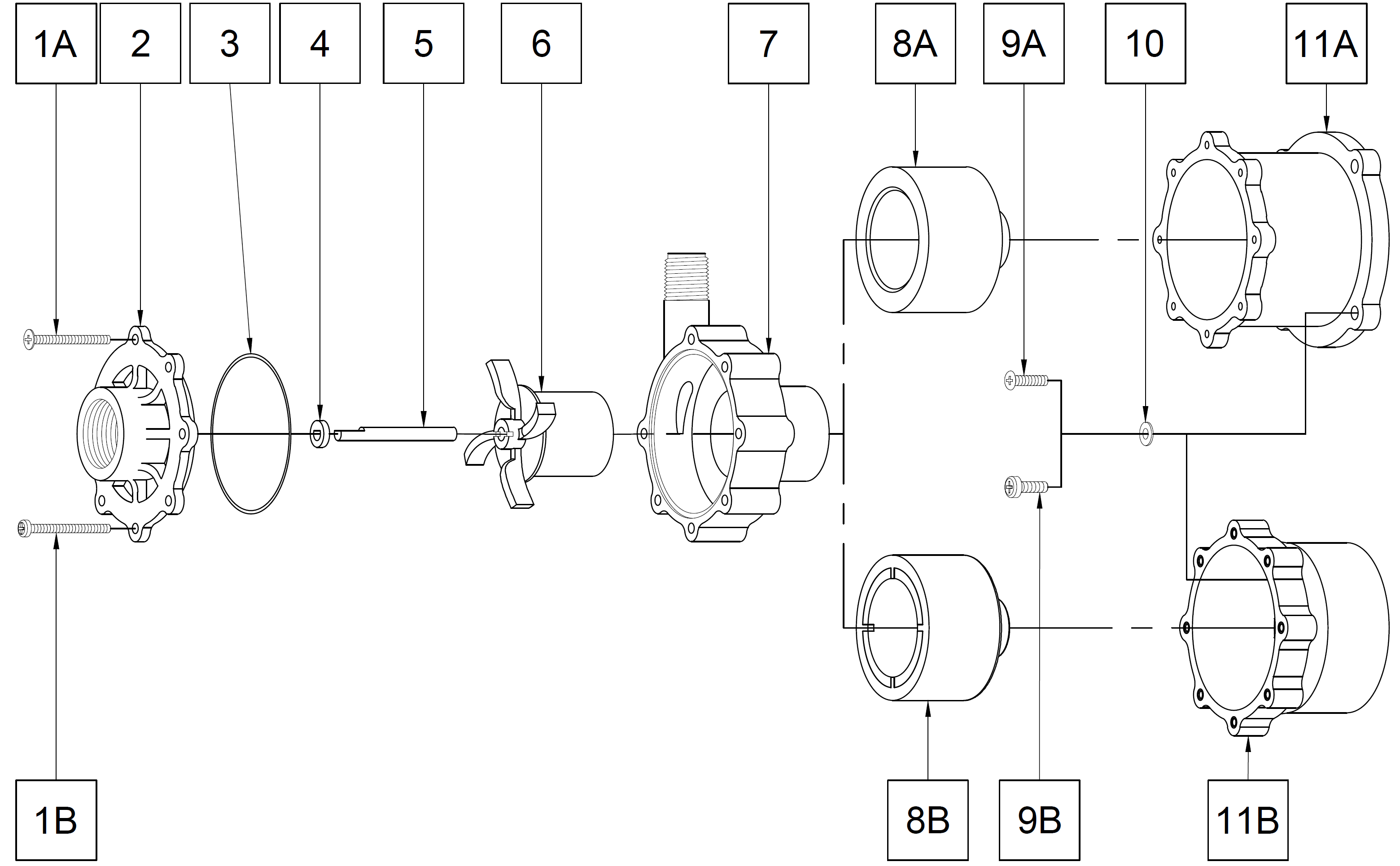

TE-5C-MD Pump Less Motor

TE-5 Plastic Pump Less Motor

Item	Part Number	Qty	Description
Option 1	0150-0224-0100	1	TE-5C-MD Pump Less Motor (NEMA Motor Bracket and NEMA Drive Magnet) Items: 1A, 2, 3, 4, 5, 6, 7, 8A, 9A, 10, 11A
Option 2	0150-0225-0100	1	TE-5C-MD Pump Less Motor (IEC Motor Bracket and NEMA Drive Magnet) Items: 1B, 2, 3, 4, 5, 6, 7, 8A, 9B, 10, 11B
Option 3	0150-0226-0100	1	TE-5C-MD Pump Less Motor (NEMA Motor Bracket and IEC Drive Magnet) Items: 1A, 2, 3, 4, 5, 6, 7, 8B, 9A, 10, 11A
Option 4	0150-0227-0100	1	TE-5C-MD Pump Less Motor (IEC Motor Bracket and IEC Drive Magnet) Items: 1B, 2, 3, 4, 5, 6, 7, 8B, 9B, 10, 11B
1A	0150-0021-1000	7	#8-32 x 1-3/4” Long Screw (Stainless)
1B	Not Supplied by March	7	M4-0.7 X 45 Long Screw (Stainless) for IEC Motor
2	0150-0032-1000	1	Cover with 1” FPT Inlet (Polypropylene)
3	0750-0986-1000	1	0.078” CS x 2.834” ID “O” Ring (Viton)
4	0130-0028-1000	1	Thrust Washer (Ceramic)
5	0130-0024-1000	1	Shaft (Ceramic)
6	0150-0098-0200	1	Encapsulated Impeller (Polypropylene)
7	0150-0031-0100	1	Rear Housing with 1/2" MPT Outlet & Ceramic Thrust Washer (Polypropylene)
8A	0150-0176-0300	1	Drive Magnet (0.375 Inch Bore) for NEMA Motor
8B	0150-0178-0200	1	Drive Magnet (9MM) for IEC Motor
9A	0150-0050-1000	4	#10-32 x 3/4" Long Screw (Stainless)
9B	Not Supplied by March	4	M5-.08 x 16 Long Screw (Stainless) for IEC Motor
10	0150-0051-1000	4	#10 Washer (Stainless)
11A	0150-0070-0100	1	NEMA Motor Bracket (Plastic)
11B	0150-0177-1000	1	IEC Motor Bracket (Plastic)
NEMA Motor	Not Supplied by March	1	42/48C Hybrid Frame with Feet, 1.093 Inch Length and 0.375 Inch Diameter Shaft
IEC Motor	Not Supplied by March	1	56 Frame, B3 Feet and B14 Face, 27.7MM Length and 9MM Diameter Shaft
			Minimum HP: 0.2 for 50Hz and 60Hz, Minimum KW 0.149 for 50Hz and 60Hz
			Motor should be soft starting.

TE-5K-MD Pump Less Motor

TE-5 Plastic Pump Less Motor

Item	Part Number	Qty	Description
Option 1	0150-0228-0100	1	TE-5K-MD Pump Less Motor (NEMA Motor Bracket and NEMA Drive Magnet) Items: 1A, 2, 3, 4, 5, 6, 7, 8A, 9A, 10, 11A
Option 2	0150-0229-0100	1	TE-5K-MD Pump Less Motor (IEC Motor Bracket and NEMA Drive Magnet) Items: 1B, 2, 3, 4, 5, 6, 7, 8A, 9B, 10, 11B
Option 3	0150-0230-0100	1	TE-5K-MD Pump Less Motor (NEMA Motor Bracket and IEC Drive Magnet) Items: 1A, 2, 3, 4, 5, 6, 7, 8B, 9A, 10, 11A
Option 4	0150-0231-0100	1	TE-5K-MD Pump Less Motor (IEC Motor Bracket and IEC Drive Magnet) Items: 1B, 2, 3, 4, 5, 6, 7, 8B, 9B, 10, 11B
1A	0150-0021-1000	7	#8-32 x 1-3/4” Long Screw (Stainless)
1B	Not Supplied by March	7	M4-0.7 X 45 Long Screw (Stainless) for IEC Motor
2	0150-0124-1000	1	Cover with 1” FPT Inlet (Glass Filled Kynar)
3	0750-0986-1000	1	0.078” CS x 2.834” ID “O” Ring (Viton)
4	0130-0028-1000	1	Thrust Washer (Ceramic)
5	0130-0024-1000	1	Shaft (Ceramic)
6	0150-0125-0200	1	Impeller (Glass Filled Kynar)
7	0150-0123-0100	1	Rear Housing with 1/2" MPT Outlet & Ceramic Thrust Washer (Glass Filled Kynar)
8A	0150-0176-0300	1	Drive Magnet (0.375 Inch Bore) for NEMA Motor
8B	0150-0178-0200	1	Drive Magnet (9MM) for IEC Motor
9A	0150-0050-1000	4	#10-32 x 3/4" Long Screw (Stainless)
9B	Not Supplied by March	4	M5-.08 x 16 Long Screw (Stainless) for IEC Motor
10	0150-0051-1000	4	#10 Washer (Stainless)
11A	0150-0070-0100	1	NEMA Motor Bracket (Plastic)
11B	0150-0177-0100	1	IEC Motor Bracket (Plastic)
NEMA Motor	Not Supplied by March	1	42/48C Hybrid Frame with Feet, 1.093 Inch Length and 0.375 Inch Diameter Shaft
IEC Motor	Not Supplied by March	1	56 Frame, B3 Feet and B14 Face, 27.7MM Length and 9MM Diameter Shaft
			Minimum HP: 0.2 for 50Hz and 60Hz, Minimum KW 0.149 for 50Hz and 60Hz
			Motor should be soft starting.

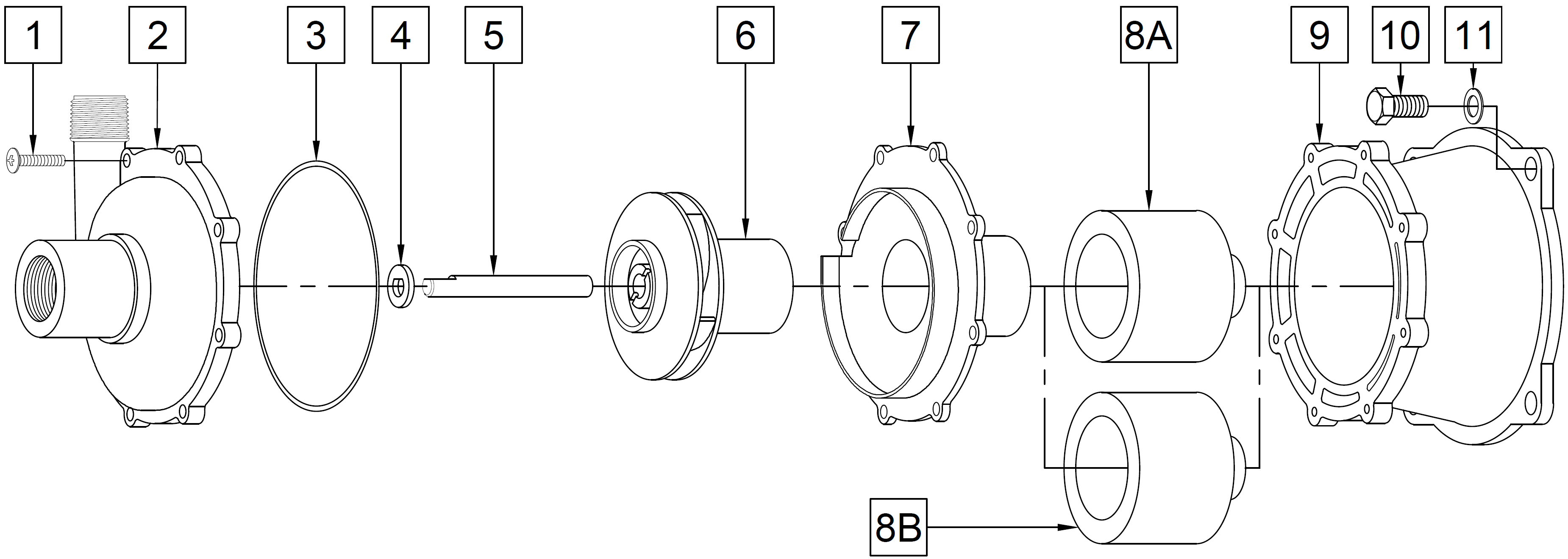

TE-5.5C-MD Pump Less Motor

TE-5.5 Plastic Pump Less Motor

Item	Part Number	Qty	Description
Option 1	0151-0103-0100	1	TE-5.5C-MD Pump Less Motor (NEMA Motor Bracket and NEMA Drive Magnet) Items: 1, 2, 3, 4, 5, 6, 7, 8A, 9, 10, 11 * This Pump Less Motor Kit cannot be used on a TE-5.5 when the motor has been supplied by March. See Items 8
1	0135-0180-1000	8	#10-32 x 1” Long Screw (Stainless)
2	0151-0027-1000	1	Front Housing with 1” FPT Inlet & 3/4" MPT Outlet (Polypropylene)
3	0153-0015-1000	1	3/32" CS x 4-7/16” ID “O” Ring (Viton)
4	0155-0009-1000	1	Thrust Washer (Ceramic)
5	0153-0007-1000	1	Shaft (Ceramic)
6	0151-0029-0500	1	Impeller (Polypropylene)
7	0151-0028-0100	1	Rear Housing with Ceramic Thrust Washer (Polypropylene)
8A	0151-0101-0100	1	Drive Magnet (0.625 Inch Bore) for NEMA Motor *This Drive Magnet will not fit on motor supplied by March
8B	0151-0061-0200	1	Drive Magnet (0.375 Inch Bore) for NEMA Motor *This Drive Magnet is used when the motor is supplied by March
9	0151-0090-0100	1	NEMA Motor Bracket (Plastic)
10	0155-0017-1000	4	3/8"-16 x 3/4" Long Screw (Stainless)
11	0155-0019-1000	4	3/8" ID x 5/8" OD Washer (Stainless)
NEMA Motor	Not Supplied by March	1	56C with Feet, 0.88 Inch Shaft Length and 0.625 Inch Diameter
			Minimum HP: 0.33 for 50Hz and 60Hz, Minimum KW 0.246 for 50Hz and 60Hz
			Motor should be soft starting.

TE-5.5K-MD Pump Less Motor

Item	Part Number	Qty	Description
Option 1	0151-0104-0100	1	TE-5.5K-MD Pump Less Motor (NEMA Motor Bracket and NEMA Drive Magnet) Items: 1, 2, 3, 4, 5, 6, 7, 8A, 9, 10, 11 * This Pump Less Motor Kit cannot be used on a TE-5.5 when the motor has been supplied by March. See Items 8
1	0135-0180-1000	8	#10-32 x 1” Long Screw (Stainless)
2	0151-0044-1000	1	Front Housing with 1” FPT Inlet & 3/4" MPT Outlet (Glass Filled Kynar)
3	0153-0015-1000	1	3/32" CS x 4-7/16” ID “O” Ring (Viton)
4	0155-0009-1000	1	Thrust Washer (Ceramic)
5	0153-0007-1000	1	Shaft (Ceramic)
6	0151-0046-0300	1	Impeller (Glass Filled Kynar)
7	0151-0045-0100	1	Rear Housing with Ceramic Thrust Washer (Glass Filled Kynar)
8A	0151-0101-0100	1	Drive Magnet (0.625 Inch Bore) for NEMA Motor *This Drive Magnet will not fit on motor supplied by March
8B	0151-0061-0200	1	Drive Magnet (0.375 Inch Bore) for NEMA Motor *This Drive Magnet is used when the motor is supplied by March
9	0151-0090-0100	1	NEMA Motor Bracket (Plastic)
10	0155-0017-1000	4	3/8"-16 x 3/4" Long Screw (Stainless)
11	0155-0019-1000	4	3/8" ID x 5/8" OD Washer (Stainless)
NEMA Motor	Not Supplied by March	1	56C with Feet, 0.88 Inch Shaft Length and 0.625 Inch Diameter
			Minimum HP: 0.33 for 50Hz and 60Hz, Minimum KW 0.246 for 50Hz and 60Hz
			Motor should be soft starting.

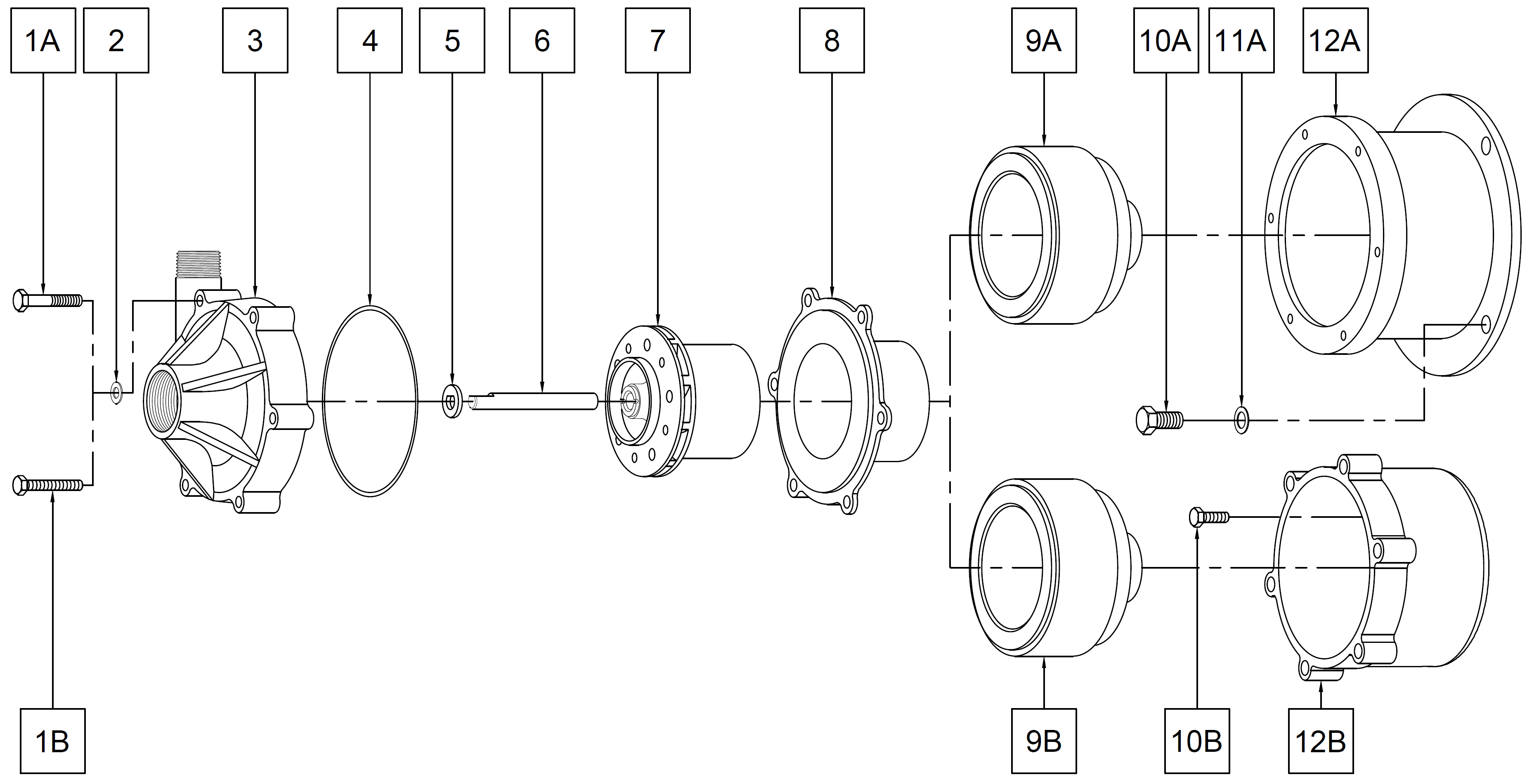

TE-6P-MD Pump Less Motor

TE-6 Pump Less Motor

Item	Part Number	Qty	Description
Option 1	0153-0099-0100	1	TE-6P-MD Pump Less Motor (NEMA Motor Bracket and NEMA Drive Magnet) Items: 1A, 2, 3, 4, 5, 6, 7, 8, 9A, 10A, 11A, 12A
Option 2	0153-0100-0100	1	TE-6P-MD Pump Less Motor (IEC Motor Bracket and NEMA Drive Magnet) Items:1B, 2, 3, 4, 5, 6, 7, 8, 9A, 10B, 12B
Option 3	0153-0101-0100	1	TE-6P-MD Pump Less Motor (NEMA Motor Bracket and IEC Drive Magnet) Items: 1A, 2, 3, 4, 5, 6, 7, 8, 9B, 10A, 11A, 12A
Option 4	0153-0102-0100	1	TE-6P-MD Pump Less Motor (IEC Motor Bracket and IEC Drive Magnet) Items: 1B, 2, 3, 4, 5, 6, 7, 8, 9B, 10B, 12B
1A	0153-0064-1000	6	1/4"-20 x 1-3/4" Long Screw (Stainless)
1B	Not Supplied by March	6	M6 x 40 Screw
2	0155-0021-1000		1/4" ID x 1/2" OD Washer (Stainless)
3	0153-0052-1000	1	Front Housing with 1” FPT Inlet & 3/4" MPT Outlet (Polypropylene)
4	0153-0015-1000	1	3/32" CS x 4-7/16” ID “O” Ring (Viton)
5	0155-0009-1000	1	Thrust Washer (Ceramic)
6	0153-0007-1000	1	Shaft (Ceramic)
7	0153-0003-0400	1	Impeller with Ryton/Teflon/Carbon Bushing (Polypropylene)
8	0153-0072-0100	1	Rear Housing with Ceramic Thrust Washer (Polypropylene)
9A	0153-0035-0100	1	Drive Magnet (0.625 Inch Bore) for NEMA Motor
9B	0153-0035-0200	1	Drive Magnet (14 MM Bore) for IEC Motor
10A	0155-0017-1000	4	3/8-16 x 3/4" Long Screw (Stainless)
10B	Not Supplied by March	4	M6 x 16 Screw
11A	0155-0019-1000	4	3/8" ID x 5/8" OD Washer (Stainless)
12A	0153-0147-0100	1	NEMA Motor Bracket (Noryl)
12B	0153-0071-1000	1	IEC Motor Bracket (Plastic)
NEMA Motor	Not Supplied by March	1	56C with Feet, 1.38 Inch Shaft Length and 0.625 Inch Diameter
IEC Motor	Not Supplied by March	1	71 Frame, B3 Feet and B5 Face, 35MM Shaft Length and 14MM Diameter
			Minimum HP: 0.5 for 50Hz and 60Hz, Minimum KW 0.372 for 50Hz and 60Hz
			Motor should be soft starting.

TE-6K-MD Pump Less Motor

TE-6 Pump Less Motor

Item	Part Number	Qty	Description
Option 1	0153-0103-0100	1	TE-6K-MD Pump Less Motor (NEMA Motor Bracket and NEMA Drive Magnet) Items: 1A, 2, 3, 4, 5, 6, 7, 8, 9A, 10A, 11A, 12A
Option 2	0153-0104-0100	1	TE-6K-MD Pump Less Motor (IEC Motor Bracket and NEMA Drive Magnet) Items: 1B, 2, 3, 4, 5, 6, 7, 8, 9A, 10B, 12B
Option 3	0153-0105-0100	1	TE-6K-MD Pump Less Motor (NEMA Motor Bracket and IEC Drive Magnet) Items: 1A, 2, 3, 4, 5, 6, 7, 8, 9B, 10A, 11A, 12A
Option 4	0153-0106-0100	1	TE-6K-MD Pump Less Motor (IEC Motor Bracket and IEC Drive Magnet) Items: 1B, 2, 3, 4, 5, 6, 7, 8, 9B, 10B, 12B
1A	0153-0064-1000	6	1/4"-20 x 1-3/4" Long Screw (Stainless)
1B	Not Supplied by March	6	M6 x 40 Screw
2	0155-0021-1000		1/4" ID x 1/2" OD Washer (Stainless)
3	0153-0042-1000	1	Front Housing with 1” FPT Inlet & 3/4" MPT Outlet (Glass Filled Kynar)
4	0153-0015-1000	1	3/32" CS x 4-7/16” ID “O” Ring (Viton)
5	0155-0009-1000	1	Thrust Washer (Ceramic)
6	0153-0007-1000	1	Shaft (Ceramic)
7	0153-0043-0500	1	Impeller with Carbon Bushing (Carbon Filled Kynar)
8	0153-0041-0100	1	Rear Housing with Ceramic Thrust Washer (Glass Filled Kynar)
9A	0153-0035-0100	1	Drive Magnet (0.625 Inch Bore) for NEMA Motor
9B	0153-0035-0200	1	Drive Magnet (14 MM Bore) for IEC Motor
10A	0155-0017-1000	4	3/8-16 x 3/4" Long Screw (Stainless)
10B	Not Supplied by March	4	M6 x 16 Screw
11A	0155-0019-1000	4	3/8" ID x 5/8" OD Washer (Stainless)
12A	0153-0093-0010	1	NEMA Motor Bracket (Noryl)
12B	0153-0071-1000	1	IEC Motor Bracket (Plastic)
NEMA Motor	Not Supplied by March	1	56C with Feet, 1.38 Inch Shaft Length and 0.625 Inch Diameter
IEC Motor	Not Supplied by March	1	71 Frame, B3 Feet and B5 Face, 35MM Shaft Length and 14MM Diameter
			Minimum HP: 0.5 for 50Hz and 60Hz, Minimum KW 0.372 for 50Hz and 60Hz
			Motor should be soft starting.

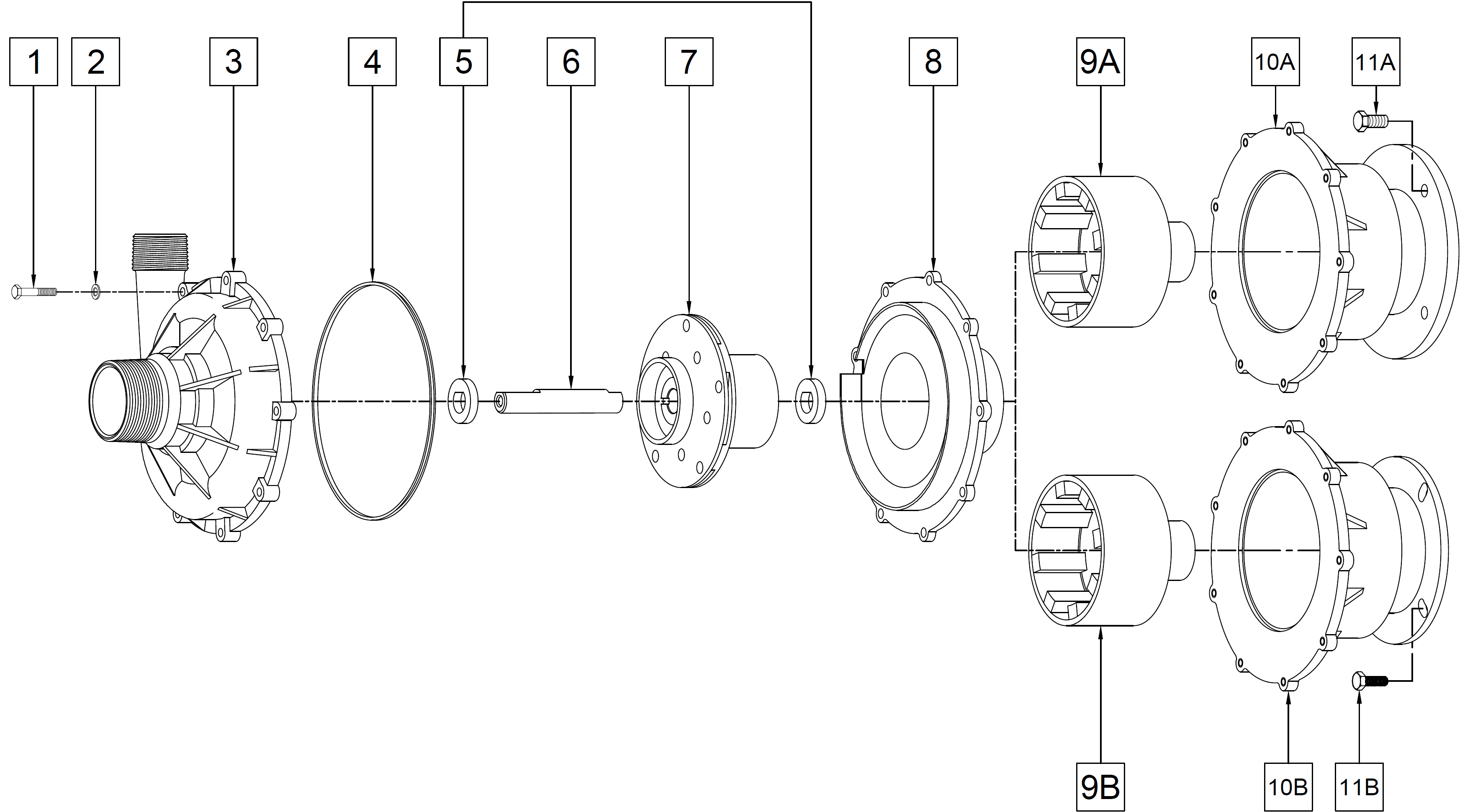

TE-7P-MD Pump Less Motor

TE-7-MD Plastic Pump Less Motor Breakdown

Item	Part Number	Qty	Description
Option 1	0155-0265-0100	1	TE-7P-MD Pump Less Motor (NEMA Motor Bracket and NEMA Drive Magnet) Items: 1A, 2A, 3, 4, 5, 6, 7, 8, 9A, 10A, 11A, 12
Option 2	0155-0266-0100	1	TE-7P-MD Pump Less Motor (IEC Motor Bracket and NEMA Drive Magnet) Items: 1B, 2B, 3, 4, 5, 6, 7, 8, 9A, 10B ,11B
Option 3	0155-0267-0100	1	TE-7P-MD Pump Less Motor (NEMA Motor Bracket and IEC Drive Magnet) Items: 1A, 2A, 3, 4, 5, 6, 7, 8, 9B, 10A, 11A, 12
Option 4	0155-0268-0100	1	TE-7P-MD Pump Less Motor (IEC Motor Bracket and IEC Drive Magnet) Items: 1B, 2B, 3, 4, 5, 6, 7, 8, 9B, 10B, 11B
1A	0155-0014-1000	6	1/4"-20 x 2" Long Screw (Stainless)
1B	Not Supplied by March	6	M6 x 50 Screw
2	0155-0021-1000	6	1/4" ID x 1/2" OD Washer (Stainless)
3	0155-0011-1000	1	Front Housing (Polypropylene)
4	0155-0010-1000	1	1/8" CS x 4-3/8" OD "O" Ring (Viton)
5	0155-0009-1000	1	Thrust Washer (Ceramic)
6	0155-0039-1000	1	4.070" Long Shaft (Ceramic)
7	0155-0159-0500	1	Impeller w/Teflon/Ryton/Carbon Bushing (Polypropylene)
8	0155-0091-0100	1	Rear Housing w/Ceramic Thrust Washer (Polyproylene)
9A	0155-0130-0200	1	Drive Magnet (0.625 Inch Bore) for NEMA Motor
9B	0155-0131-0200	1	Drive Magnet (14 MM Bore) for IEC Motor
10A	0155-0340-0100	1	NEMA Motor Bracket (Noryl)
10B	0155-0184-1000	1	IEC Motor Bracket (Plastic)
11A	0155-0017-1000	4	3/8”-16 x 3/4” Long Screw (Stainless)
11B	Not Supplied by March	4	M6 X 16 Screw
12	0155-0019-1000	4	3/8” ID x 5/8” OD Washer (Stainless)
NEMA Motor	Not Supplied by March	1	56C with Feet, 1.5 Inch Shaft Length and 0.625 Inch Diameter
IEC Motor	Not Supplied by March	1	71 Frame, B3 Feet and B5 Face, 38.1MM Shaft Length and 14MM Diameter
			Minimum HP: 0.75 for 50Hz and 60Hz, Minimum KW 0.559 for 50Hz and 60Hz
			Motor should be soft starting.

TE-7K-MD Pump Less Motor

TE-7-MD Plastic Pump Less Motor Breakdown

Item	Part Number	Qty	Description
Option 1	0155-0269-0100	1	TE-7K-MD Pump Less Motor (NEMA Motor Bracket and NEMA Drive Magnet) Items: 1A, 2A, 3, 4, 5, 6, 7, 8, 9A, 10A, 11A, 12
Option 2	0155-0270-0100	1	TE-7K-MD Pump Less Motor (IEC Motor Bracket and NEMA Drive Magnet) Items: 1B, 2B, 3, 4, 5, 6, 7, 8, 9A, 10B, 11B
Option 3	0155-0271-0100	1	TE-7K-MD Pump Less Motor (NEMA Motor Bracket and IEC Drive Magnet) Items: 1A, 2A, 3, 4, 5, 6, 7, 8, 9B, 10A, 11A, 12
Option 4	0155-0272-0100	1	TE-7K-MD Pump Less Motor (IEC Motor Bracket and IEC Drive Magnet) Items: 1B, 2B, 3, 4, 5, 6, 7, 8, 9B, 10B, 11B
1A	0155-0014-1000	6	1/4"-20 x 2" Long Screw (Stainless)
1B	Not Supplied by March	6	M6 x 50 Screw
2	0155-0021-1000	6	1/4" ID x 1/2" OD Washer (Stainless)
3	0155-0125-1000	1	Front Housing (Glass Filled Kynar)
4	0155-0010-1000	1	1/8" CS x 4-3/8" OD "O" Ring (Viton)
5	0155-0009-1000	1	Thrust Washer (Ceramic)
6	0155-0039-1000	1	4.070" Long Shaft (Ceramic)
7	0155-0160-0200	1	Impeller w/Carbon Bushing (Glass Filled Kynar)
8	0155-0124-0100	1	Rear Housing w/Ceramic Thrust Washer (Glass Filled Kynar)
9A	0155-0130-0200	1	Drive Magnet (0.625 Inch Bore) for NEMA Motor
9B	0155-0131-0200	1	Drive Magnet (14 MM Bore) for IEC Motor
10A	0155-0340-0100	1	NEMA Motor Bracket (Noryl)
10B	0155-0184-1000	1	IEC Motor Bracket (Plastic)
11A	0155-0017-1000	4	3/8”-16 x 3/4” Long Screw (Stainless)
11B	Not Supplied by March	4	M6 X 16 Screw
12	0155-0019-1000	4	3/8” ID x 5/8” OD Washer (Stainless)
NEMA Motor	Not Supplied by March	1	56C with Feet, 1.5 Inch Shaft Length and 0.625 Inch Diameter
IEC Motor	Not Supplied by March	1	71 Frame, B3 Feet and B5 Face, 38.1MM Shaft Length and 14MM Diameter
			Minimum HP: 0.75 for 50Hz and 60Hz, Minimum KW 0.559 for 50Hz and 60Hz
			Motor should be soft starting.

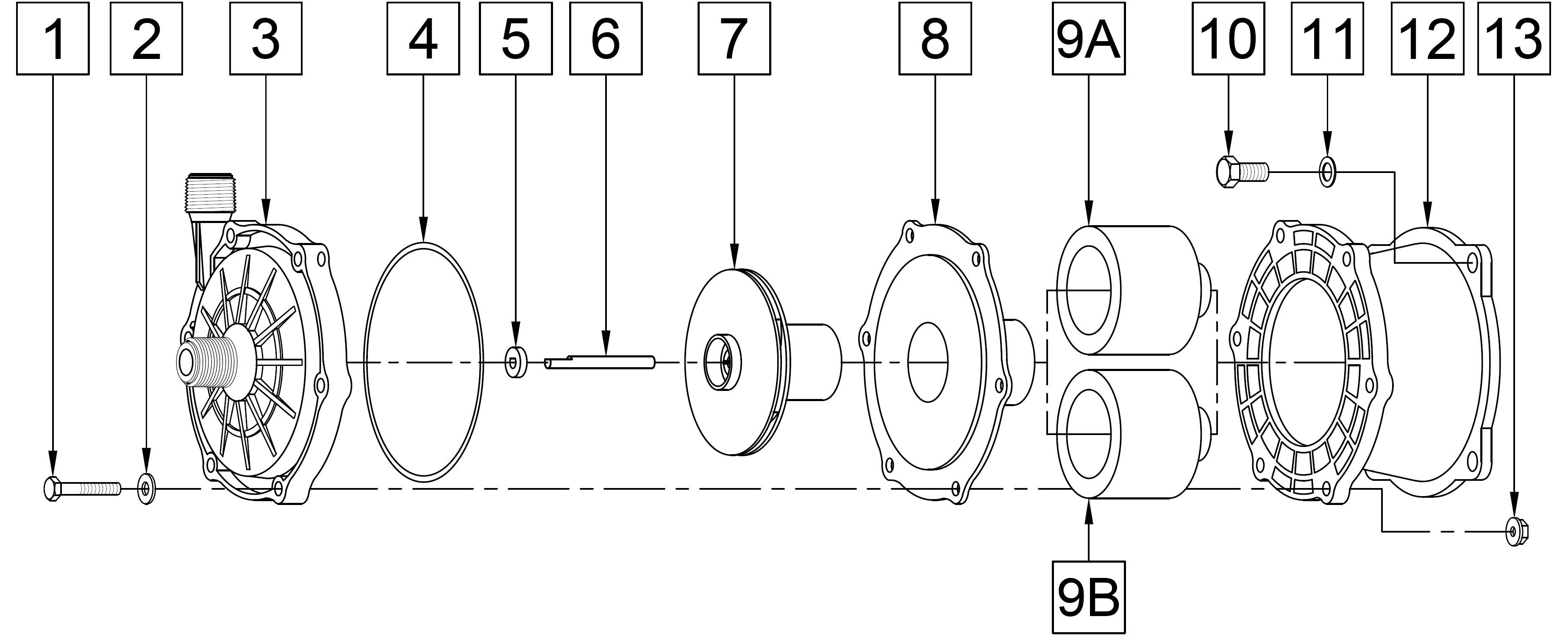

TE-7.5P-MD Pump Less Motor

TE-7.5 Pump Less Motor Breakdown

Item	Part Number	Qty	Description
Option 1	0156-0067-0100	1	TE-7.5P-MD Pump Less Motor (NEMA Motor Bracket and NEMA Drive Magnet) Items: 1, 2, 3, 4, 5, 6, 7, 8, 9A, 10A, 11A, 12, 13
Option 2	0156-0080-0100	1	TE-7.5P-MD Pump Less Motor (IEC Motor Bracket and NEMA Drive Magnet) Items: 1, 2, 3, 4, 5, 6, 7, 8, 9A, 10B, 11B, 13
Option 3	0156-0081-0100	1	TE-7.5P-MD Pump Less Motor (NEMA Motor Bracket and IEC Drive Magnet) Items: 1, 2, 3, 4, 5, 6, 7, 8, 9B, 10A, 11A, 12, 13
Option 4	0156-0076-0100	1	TE-7.5P-MD Pump Less Motor (IEC Motor Bracket and IEC Drive Magnet) Items: 1, 2, 3, 4, 5, 6, 7, 8, 9B, 10B, 11B, 13
1	0153-0011-1000	8	1/4"-20 x 1-1/2" Long Screw (Stainless)
2	0157-0023-1000	8	1/4" ID x 5/8" OD Washer (Stainless)
3	0156-0060-1000	1	Front Housing with 2” FPT Inlet & 1-1/2" MPT Outlet (Polypropylene)
4	0156-0010-1000	1	0.157” CS x 6.457” ID “O” Ring (Viton)
5	0156-0016-1000	2	Front & Rear Thrust Washer (Ceramic)
6	0156-0007-1000	1	Shaft (Ceramic)
7	0156-0064-0200	1	Impeller with Carbon Bushings (Polypropylene)
8	0156-0061-1000	1	Rear Housing (Polypropylene)
9A	0156-0009-0100	1	Drive Magnet (0.875 Inch Bore) for NEMA Motor
9B	0156-0040-0100	1	Drive Magnet (24MM Bore) for IEC Motor
10A	0156-0067-0100	1	NEMA Motor Bracket (Aluminum)
10B	0156-0074-0010	1	IEC Motor Bracket (Cast Iron)
11A	0155-0017-1000	4	3/8"-16 x 1" Long Screw (Stainless)
11B	Not Supplied by March	4	M12 x 20 Screw
12	0155-0019-1000	4	3/8" ID x 5/8" OD Washer (Stainless)
13	0156-0053-1000	8	1/4"-20 Hex Nut (Stainless)
NEMA Motor	Not Supplied by March	1	143TC, 145TC, 182C, or 184C Frame, with Feet, 2.12 Inch Shaft Length and 0.875 Inch Diameter. Also requires Motor Rails.
IEC Motor	Not Supplied by March	1	90S or 90L Frame, B3 Feet and B5 Face, 50MM Shaft Length and 24MM Diameter. Also requires Motor Rails.
			Minimum HP: 2 for 60Hz and 1.5 for 50Hz, Minimum KW 1.491 for 60Hz and 1.118 for 50Hz
			Motor should be soft starting.

TE-7.5K-MD Pump Less Motor

TE-7.5 Pump Less Motor Breakdown

Item	Part Number	Qty	Description
Option 1	0156-0051-0100	1	TE-7.5K-MD Pump Less Motor (NEMA Motor Bracket and NEMA Drive Magnet) Items: 1, 2, 3, 4, 5, 6, 7, 8, 9A, 10A, 11A, 12, 13
Option 2	0156-0078-0100	1	TE-7.5K-MD Pump Less Motor (IEC Motor Bracket and NEMA Drive Magnet) Items: 1, 2, 3, 4, 5, 6, 7, 8, 9A, 10B, 11B, 13
Option 3	0156-0079-0100	1	TE-7.5K-MD Pump Less Motor (NEMA Motor Bracket and IEC Drive Magnet) Items: 1, 2, 3, 4, 5, 6, 7, 8, 9B, 10A, 11A, 12, 13
Option 4	0156-0077-0100	1	TE-7.5K-MD Pump Less Motor (IEC Motor Bracket and IEC Drive Magnet) Items: 1, 2, 3, 4, 5, 6, 7, 8, 9B, 10B, 11B, 13
1	0153-0011-1000	8	1/4"-20 x 1-1/2" Long Screw (Stainless)
2	0157-0023-1000	8	1/4" ID x 5/8" OD Washer (Stainless)
3	0156-0001-1000	1	Front Housing with 2” FPT Inlet & 1-1/2" MPT Outlet (Natural Kynar)
4	0156-0010-1000	1	0.157” CS x 6.457” ID “O” Ring (Viton)
5	0156-0016-1000	2	Front & Rear Thrust Washer (Ceramic)
6	0156-0007-1000	1	Shaft (Ceramic)
7	0156-0004-0200	1	Impeller with Carbon Bushings (Natural Kynar)
8	0156-0002-1000	1	Rear Housing (Natural Kynar)
9A	0156-0009-0100	1	Drive Magnet (0.875 Inch Bore) for NEMA Motor
9B	0156-0040-0100	1	Drive Magnet (24MM Bore) for IEC Motor
10A	0156-0067-0100	1	NEMA Motor Bracket (Aluminum)
10B	0156-0074-0010	1	IEC Motor Bracket (Cast Iron)
11A	0155-0017-1000	4	3/8"-16 x 1" Long Screw (Stainless)
11B	Not Supplied by March	4	M12 x 20 Screw
12	0155-0019-1000	4	3/8" ID x 5/8" OD Washer (Stainless)
13	0156-0053-1000	8	1/4"-20 Hex Nut (Stainless)
NEMA Motor	Not Supplied by March	1	143TC, 145TC, 182C, or 184C Frame, with Feet, 2.12 Inch Shaft Length and 0.875 Inch Diameter. Also requires Motor Rails.
IEC Motor	Not Supplied by March	1	90S or 90L Frame, B3 Feet and B5 Face, 50MM Shaft Length and 24MM Diameter. Also requires Motor Rails.
			Minimum HP: 2 for 60Hz and 1.5 for 50Hz, Minimum KW 1.491 for 60Hz and 1.118 for 50Hz
			Motor should be soft starting.

TE-8C-MD Pump Less Motor

TE-8 Plastic Less Motor

Item	Part Number	Qty	Description
Option 1	0157-0095-0100	1	TE-8C-MD Pump Less Motor (NEMA Motor Bracket and NEMA Drive Magnet) Items: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10A, 11A, 12, 13A
Option 2	0157-0119-0100	1	TE-8C-MD Pump Less Motor (IEC Motor Bracket and NEMA Drive Magnet) Items: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10A, 11B, 13B
Option 3	0157-0120-0100	1	TE-8C-MD Pump Less Motor (NEMA Motor Bracket and IEC Drive Magnet) Items: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10B, 11A, 12, 13A
Option 4	0157-0117-0100	1	TE-8C-MD Pump Less Motor (IEC Motor Bracket and IEC Drive Magnet) Items: 1, 2, 3, 4, 5, 6, 7, 8, 9 10B, 11B, 13B
1	0157-0014-1000	8	1/4"-20 x 1" Long Screw (Stainless)
2	0157-0023-1000	8	1/4" ID x 5/8" OD Washer (Stainless)
3	0157-0007-1000	1	Pump Housing with 2” MPT Inlet & 1-1/2" MPT Outlet (Polypropylene)
4	0157-0011-1000	1	0.157” CS x 7.244” ID “O” Ring (Viton)
5	0157-0001-1000	1	Front Thrust Washer (Ceramic)
6	0157-0099-1000	1	3 Flats Shaft (Ceramic)
7	0157-0004-0200	1	Impeller with Ryton Bushing (Polypropylene)
8	0157-0009-1000	1	Rear Thrust Washer (Ceramic)
9	0157-0006-1000	1	Rear Housing (Polypropylene)
10A	0157-0005-0100	1	Drive Magnet (1.125 Inch Bore) for NEMA Motor
10B	0157-0091-0100	1	Drive Magnet (24MM Bore) for IEC Motor
11A	0160-0031-1000	4	1/2"-13 x 1" Long Screw (Stainless)
11B	Not Supplied by March	4	M12 x 25 Screw
12	0160-0032-1000	4	1/2" ID x 1-1/4" OD Washer (Stainless)
13A	0157-0008-0010	1	NEMA Motor Bracket (Ductile Iron)
13B	0157-0100-0000	1	IEC Motor Bracket (Plastic)
NEMA Motor	Not Supplied by March	1	182TC, 184TC, 213C, or 215C Frame, with Feet, 2.625 Inch Shaft Length and 1.125 Inch Diameter
IEC Motor	Not Supplied by March	1	90 Frame, B3 Feet and B5 Face, 50MM Shaft Length and 24MM Diameter. Also requires Motor Rails.
			Minimum HP: 3 for 60Hz and 2 for 50Hz, Minimum KW 2.237 for 60Hz and 1.491 for 50Hz
			Motor should be soft starting.

TE-8K-MD Pump Less Motor

TE-8 Plastic Less Motor

Item	Part Number	Qty	Description
Option 1	0157-0096-0100	1	TE-8K-MD Pump Less Motor (NEMA Motor Bracket and NEMA Drive Magnet) Items: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10A, 11A, 12, 13A
Option 2	0157-0121-0100	1	TE-8K-MD Pump Less Motor (IEC Motor Bracket and NEMA Drive Magnet) Items: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10A, 11B, 13B
Option 3	0157-0122-0100	1	TE-8K-MD Pump Less Motor (NEMA Motor Bracket and IEC Drive Magnet) Items: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10B, 11A, 12, 13A
Option 4	0157-0123-0100	1	TE-8K-MD Pump Less Motor (IEC Motor Bracket and IEC Drive Magnet) Items: 1, 2, 3, 4, 5, 6, 7, 8, 9 10B, 11B, 13B
1	0157-0014-1000	8	1/4"-20 x 1" Long Screw (Stainless)
2	0157-0023-1000	8	1/4" ID x 5/8" OD Washer (Stainless)
3	0157-0052-1000	1	Pump Housing with 2” MPT Inlet & 1-1/2" MPT Outlet (Glass Filled Kynar)
4	0157-0011-1000	1	0.157” CS x 7.244” ID “O” Ring (Viton)
5	0157-0001-1000	1	Front Thrust Washer (Ceramic)
6	0157-0099-1000	1	3 Flats Shaft (Ceramic)
7	0157-0050-0500	1	Impeller with Carbon Bushing (Glass Filled Kynar)
8	0157-0009-1000	1	Rear Thrust Washer (Ceramic)
9	0157-0053-1000	1	Rear Housing (Glass Filled Kynar)
10A	0157-0005-0100	1	Drive Magnet (1.125 Inch Bore) for NEMA Motor
10B	0157-0091-0100	1	Drive Magnet (24MM Bore) for IEC Motor
11A	0160-0031-1000	4	1/2"-13 x 1" Long Screw (Stainless)
11B	Not Supplied by March	4	M12 x 25 Screw
12	0160-0032-1000	4	1/2" ID x 1-1/4" OD Washer (Stainless)
13A	0157-0008-0010	1	NEMA Motor Bracket (Ductile Iron)
13B	0157-0100-0000	1	IEC Motor Bracket (Plastic)
NEMA Motor	Not Supplied by March	1	182TC, 184TC, 213C, or 215C Frame, with Feet, 2.625 Inch Shaft Length and 1.125 Inch Diameter
IEC Motor	Not Supplied by March	1	90 Frame, B3 Feet and B5 Face, 50MM Shaft Length and 24MM Diameter. Also requires Motor Rails.
			Minimum HP: 3 for 60Hz and 2 for 50Hz, Minimum KW 2.237 for 60Hz and 1.491 for 50Hz
			Motor should be soft starting.

TE-10P-MD Pump Less Motor

TE-10 Pump Less Motor

Item	Part Number	Qty	Description
Option 1	0161-0064-0100	1	TE-10P-MD Pump Less Motor (NEMA Motor Bracket and NEMA Drive Magnet) Items: 1, 2, 3, 4, 5, 6, 7, 8, 9A, 10A, 11A
Option 2	0161-0067-0100	1	TE-10P-MD Pump Less Motor (IEC Motor Bracket and NEMA Drive Magnet) Items: 1, 2, 3, 4, 5, 6, 7, 8, 9A, 10B, 11B
Option 3	0161-0068-0100	1	TE-10P-MD Pump Less Motor (NEMA Motor Bracket and IEC Drive Magnet) Items: 1, 2, 3, 4, 5, 6, 7, 8, 9B, 10A, 11A
Option 4	0161-0062-0100	1	TE-10P-MD Pump Less Motor (IEC Motor Bracket and IEC Drive Magnet) Items: 1, 2, 3, 4, 5, 6, 7, 8, 9B, 10B, 11B
1	0160-0029-1000	9	5/16”-18 x 1-3/4” Long Screw (Stainless)
2	0160-0030-1000	9	5/16” ID x 5/8” OD Washer (Stainless)
3	0161-0056-1000	1	Pump Housing with 3" MPT Inlet & 2" MPT Outlet (Polypropylene)
4	0161-0043-1000	1	9.750” ID x 10” OD Gasket (Viton)
5	0161-0001-1000	2	Front & Rear Thrust Washer (Ceramic)
6	0161-0002-1000	1	Shaft (Ceramic)
7	0161-0053-0300	1	Impeller w/Carbon Bushings (Polypropylene)
8	0161-0057-1000	1	Rear Housing (Polypropylene)
9A	0161-0031-0100	1	Drive Magnet (1.375 Inch Bore) for NEMA Motor
9B	0161-0031-0200	1	Drive Magnet (38 MM Bore) for IEC Motor
10A	0161-0007-0010	1	NEMA Motor Bracket (Metal)
10B	0161-0048-0100	1	IEC Motor Bracket (Metal)
11A	0160-0031-1000	4	1/2"-13 x 1" Long Screw (Stainless)
11B	Not Supplied by March	4	Screw (Hexagon) M10 X 30 (DIN 933) Also suggested Washer 10.5 (DIN 125A) Spring Washer (DIN 127A)
NEMA Motor	Not Supplied by March	1	213TC, 215TC, 254UC, or 256UC Frame, with Feet, 3.13 Inch Shaft Length and 1.375 Inch Diameter. Also requires Motor Rails.
IEC Motor	Not Supplied by March	1	132 Frame, B3 Feet and B14 Face, 79.5MM Shaft Length and 38MM Diameter. Also requires Motor Rails.
			Minimum HP: 10 for 60Hz and 7.5 for 50Hz, Minimum KW 7.457 for 60Hz and 5.592 for 50Hz
			Motor should be soft starting.

TE-10K-MD Pump Less Motor

TE-10 Pump Less Motor

Item	Part Number	Qty	Description
Option 1	0161-0036-0100	1	TE-10K-MD Pump Less Motor (NEMA Motor Bracket and NEMA Drive Magnet) Items: 1, 2, 3, 4, 5, 6, 7, 8, 9A, 10A, 11A
Option 2	0161-0066-0100	1	TE-10K-MD Pump Less Motor (IEC Motor Bracket and NEMA Drive Magnet) Items: 1, 2, 3, 4, 5, 6, 7, 8, 9A, 10B, 11B
Option 3	0161-0050-0100	1	TE-10K-MD Pump Less Motor (NEMA Motor Bracket and IEC Drive Magnet) Items: 1, 2, 3, 4, 5, 6, 7, 8, 9B, 10A, 11A
Option 4	0161-0065-0100	1	TE-10K-MD Pump Less Motor (IEC Motor Bracket and IEC Drive Magnet) Items: 1, 2, 3, 4, 5, 6, 7, 8, 9B, 10B, 11B
1	0160-0029-1000	9	5/16”-18 x 1-3/4” Long Screw (Stainless)
2	0160-0030-1000	9	5/16” ID x 5/8” OD Washer (Stainless)
3	0161-0008-1000	1	Pump Housing with 3" MPT Inlet & 2" MPT Outlet (Kynar)
4	0161-0043-1000	1	9.750” ID x 10” OD Gasket (Viton)
5	0161-0001-1000	2	Front & Rear Thrust Washer (Ceramic)
6	0161-0002-1000	1	Shaft (Ceramic)
7	0161-0005-0400	1	Impeller w/Carbon Bushings (Glass Filled Kynar)
8	0161-0009-1000	1	Rear Housing (Kynar)
9A	0161-0031-0100	1	Drive Magnet (1.375 Inch Bore) for NEMA Motor
9B	0161-0031-0200	1	Drive Magnet (38 MM Bore) for IEC Motor
10A	0161-0007-0010	1	NEMA Motor Bracket (Metal)
10B	0161-0048-0100	1	IEC Motor Bracket (Metal)
11A	0160-0031-1000	4	1/2"-13 x 1" Long Screw (Stainless)
11B	Not Supplied by March	4	Screw (Hexagon) M10 X 30 (DIN 933) Also suggested Washer 10.5 (DIN 125A) Spring Washer (DIN 127A)
NEMA Motor	Not Supplied by March	1	213TC, 215TC, 254UC, or 256UC Frame, with Feet, 3.13 Inch Shaft Length and 1.375 Inch Diameter. Also requires Motor Rails.
IEC Motor	Not Supplied by March	1	132 Frame, B3 Feet and B14 Face, 79.5MM Shaft Length and 38MM Diameter. Also requires Motor Rails.
			Minimum HP: 10 for 60Hz and 7.5 for 50Hz, Minimum KW 7.457 for 60Hz and 5.592 for 50Hz
			Motor should be soft starting.

335-CP Pump Less Motor

335-CP-MD Pump Less Motor

Item	Part Number	Qty	Description
Option 1	0335-0020-0100	1	335-CP-MD Pump Less Motor (NEMA Motor Bracket and NEMA Drive Magnet) Items: 1, 2, 3, 4, 5, 6, 7, 8, 9A, 10, 11, 12, 13 * This Pump Less Motor Kit cannot be used on a 335-CP-MD when the motor has been supplied by March. See Items 9
1	0153-0011-1000	6	1/4"-20 x 1-1/2" Long Screw (Stainless)
2	0157-0023-1000	6	1/4" ID x 5/8" OD Washer (Stainless)
3	0335-0002-1000	1	Front Housing with 3/4" MPT Inlet & Outlet (Polypropylene)
4	0335-0009-1000	1	1/8" CS x 5" ID "O" Ring (Viton)
5	0821-0079-1000	1	Thrust Washer (Ceramic)
6	0130-0024-1000	1	Shaft (Ceramic)
7	0335-0005-0200	1	Impeller (Polypropylene)
8	0335-0004-0100	1	Rear Housing with Ceramic Thrust Washer (Polypropylene)
9A	0335-0019-0000	1	Drive Magnet (0.625 Inch Bore) for NEMA Motor *This Drive Magnet will not fit on motor supplied by March
9B	0335-0017-0000	1	Drive Magnet (0.375 Inch Bore) for NEMA Motor *This Drive Magnet is used when the motor is supplied by March
10	0155-0017-1000	4	3/8"-16 x 3/4" Long Screw (Stainless)
11	0155-0019-1000	4	3/8" ID x 5/8" OD Washer (Stainless)
12	0335-0010-1000	1	NEMA Motor Bracket (Plastic)
13	0156-0053-1000	6	1/4"-20 Hex Nut
NEMA Motor	Not Supplied by March	1	56C Frame, with Feet, 0.88 Inch Shaft Length and 0.625 Inch Diameter
			Minimum HP: 0.33 for 60Hz and 50Hz, Minimum KW 0.246 for 60Hz and 50Hz
			Motor should be soft starting.
