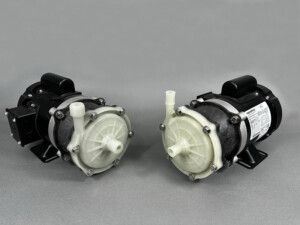

March Pump Series 335 are centrifugal magnetic drive pumps which have a maximum flow of 12GPM and a maximum head of 68 feet. They are available in Polypropylene and Glass Filled Kynar. They are available with a 3/4 inch inlet and a 3/4 inch outlet. They use 1/3 and 1/2 horsepower motors.
Unit System | 60Hz | 50Hz |
---|---|---|
Max Flow | 12 GPM | 37.8 LPM |
Max Head | 68 FT | 14.6 M |
Electrical/Air: 1Ph 115/230V 60Hz, 110/220V 50Hz or 3Ph 230/460V 60Hz, 190/220/380/415 50Hz, or 3Ph 575V 60Hz
Inlet: 3/4"MPT
Outlet: 3/4"MPT
Material: Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft and Thrust Washer)
Unit System | 60Hz | 50Hz |
---|---|---|
Max Flow | 12 GPM | 37.8 LPM |
Max Head | 68 FT | 14.6 M |
Electrical/Air: 1Ph 115/230V 60Hz, 110/220V 50Hz or 3Ph 230/460V 60Hz, 190/220/380/415 50Hz, , or 3Ph 575V 60Hz
Inlet: 3/4"OD
Outlet: 3/4"OD
Material: Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft and Thrust Washer)
Unit System | 60Hz | 50Hz |
---|---|---|
Max Flow | 12 GPM | 37.8 LPM |
Max Head | 68 FT | 14.6 M |
Electrical/Air: 1Ph 115/230V 60Hz, 110/220V 50Hz or 3Ph 230/460V 60Hz, 190/220/380/415 50Hz, or 3Ph 575V 60Hz
Inlet: 3/4"MPT
Outlet: 3/4"MPT
Material: Glass Filled Kynar (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft and Thrust Washer)
