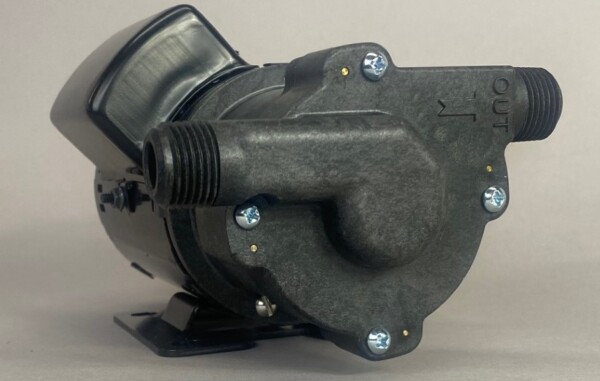

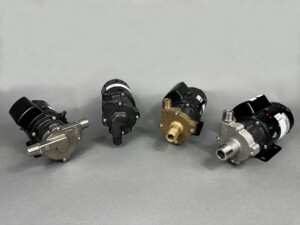

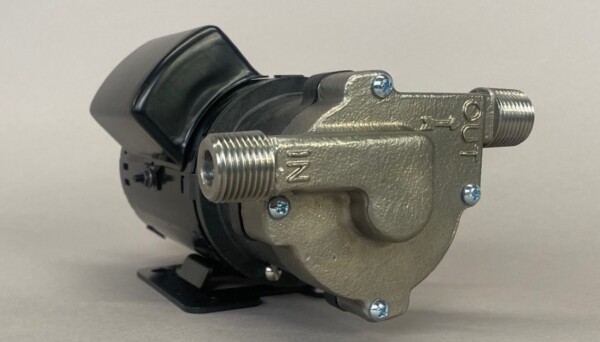

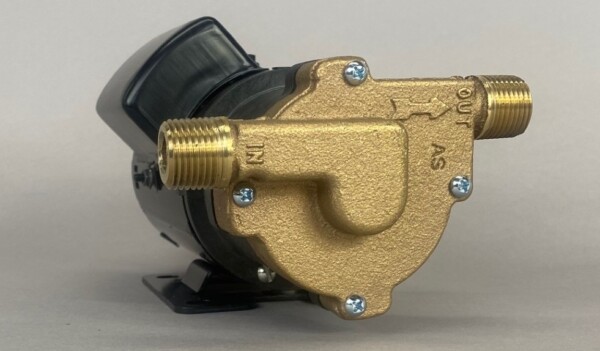

March Pump Series 815 are centrifugal magnetic drive pumps which have a maximum flow of 8GPM and a maximum head of 18.6 feet. They are available in Polysulfone, Stainless Steel, and Bronze materials. They are available with 1/2 and 3/4 inch inlets inch inlets and 1/2 inch outlets. The horsepower of the motor is 1/25. They are available in AC 115V or 230V.
Unit System | 60Hz | 50Hz |
---|---|---|
Max Flow | 7 GPM | 22.7 LPM |
Max Head | 18.6 FT | 4.1 M |
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 1/2"MPT
Outlet: 1/2"MPT
Material: Polysulfone (Front Housing), Stainless Steel (Rear Housing and Shaft), Teflon (Thrust Washer), Silicone (O-Ring), Ryton/Teflon/Glass (Impeller)
Unit System | 60Hz | 50Hz |
---|---|---|
Max Flow | 8 GPM | 30 LPM |
Max Head | 18.6 FT | 4.1 M |
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 3/8"FPT & 3/4"MPT
Outlet: 1/2"MPT
Material: Polysulfone (Front Housing), Stainless Steel (Rear Housing and Shaft), Teflon (Thrust Washer), Silicone (O-Ring), Ryton/Teflon/Glass (Impeller)
Unit System | 60Hz | 50Hz |
---|---|---|
Max Flow | 7 GPM | 22.7 LPM |
Max Head | 18.6 FT | 4.1 M |
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 1/2"MPT
Outlet: 1/2"MPT
Material: Bronze (Front Housing), Stainless Steel (Rear Housing and Shaft), Teflon (Thrust Washer), Silicone (O-Ring), Ryton/Teflon/Glass (Impeller)
Unit System | 60Hz | 50Hz |
---|---|---|
Max Flow | 8 GPM | 30 LPM |
Max Head | 18.6 FT | 4.1 M |
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 3/4"MPT
Outlet: 1/2"MPT
Material: Bronze (Front Housing), Stainless Steel (Rear Housing, Shaft), Teflon (Thrust Washer), Silicone (O-Ring), Ryton/Teflon/Glass (Impeller)
Unit System | 60Hz | 50Hz |
---|---|---|
Max Flow | 7 GPM | 22.7 LPM |
Max Head | 18.6 FT | 4.1 M |
Electrical/Air: 115 50/60Hz or 230V 50/60Hz
Inlet: 1/2"MPT
Outlet: 1/2"MPT
Material: Stainless Steel (Front and Rear Housing, Shaft), Teflon (Thrust Washer), Silicone (O-Ring), Ryton/Teflon/Glass (Impeller)
Unit System | 60Hz | 50Hz |
---|---|---|
Max Flow | 8 GPM | 30 LPM |
Max Head | 18.6 FT | 4.1 M |
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 3/4"MPT
Outlet: 1/2"MPT
Material: Stainless Steel (Front and Rear Housing, Shaft), Teflon (Thrust Washer), Silicone (O-Ring), Ryton/Teflon/Glass (Impeller)
Unit System | 60Hz | 50Hz |
---|---|---|
Max Flow | 7 GPM | 26.5 LPM |
Max Head | 18.6 FT | 5.7 M |
Electrical/Air: 115V 50/60Hz
Inlet: 1/2"MPT
Outlet: 1/2"MPT
Material: Polysulfone (Front Housing), Stainless Steel (Rear Housing and Shaft), Teflon (Thrust Washer), Silicone (O-Ring), Ryton/Teflon/Glass (Impeller)
Unit System | 60Hz | 50Hz |
---|---|---|
Max Flow | 7 GPM | 26.5 LPM |
Max Head | 18.6 FT | 5.7 M |
Electrical/Air: 115V 50/60Hz
Inlet: 1/2"MPT
Outlet: 1/2"MPT
Material: Stainless Steel (Front and Rear Housing, Shaft), Teflon (Thrust Washer), Silicone (O-Ring), Ryton/Teflon/Glass (Impeller)
