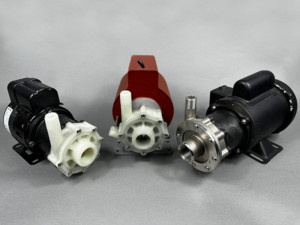

March Pump Series 5 are centrifugal magnetic drive pumps which have a maximum flow of 15GPM and a maximum head of 29 feet. They are available in Polypropylene, Glass Filled Kynar, Carbon Filled Kynar, and 316 Stainless Steel materials. They are available with 1 inch inlets and 1/2 inch outlets. They use 1/8 and 1/5 horsepower motors, and are available in 115V or 230V, 115/230V single phase, or 230/460V three phase. Submersible models, explosion proof motors for hazardous locations, and Air Power motors are additional options.
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 14.5 GPM | 54.8 LPM |
| Max Head | 27 FT | 6 M |
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 1"FPT
Outlet: 1/2"MPT
Material: Polypropylene (Front and Rear Housing, Impeller), Buna N (O-Ring), Ceramic (Shaft, Thrust Washers), Ceramic Magnet
Submersible: Yes
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 14.5 GPM | 54.8 LPM |
| Max Head | 27 FT | 6 M |
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 1"FPT
Outlet: 1/2"MPT
Material: Polypropylene (Front and Rear Housing, Impeller), Buna N (O-Ring, Cooling Tube Seal), 316 Stainless Steel (Cooling Tube), Ceramic (Shaft, Thrust Washers), Ceramic Magnet
Submersible: Yes
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 17 GPM | 60 LPM |
| Max Head | 27 FT | 6 M |
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 1"OD
Outlet: 3/4"OD
Material: Polypropylene (Front and Rear Housing, Impeller), Buna N (O-Ring), Ceramic (Shaft, Thrust Washers), Ceramic Magnet
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 17 GPM | 60 LPM |
| Max Head | 27 FT | 6 M |
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 1"FPT
Outlet: 1/2"MPT
Material: Polypropylene (Front and Rear Housing, Impeller), Buna N (O-Ring), Ceramic (Shaft, Thrust Washers), Ceramic Magnet
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 17 GPM | 60 LPM |
| Max Head | 27 FT | 6 M |
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 1"FPT
Outlet: 1/2"MPT
Material: Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers)
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 17 GPM | 60 LPM |
| Max Head | 27 FT | 6 M |
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 1"FPT
Outlet: 1/2"MPT
Material: Glass Filled Kynar (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers)
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 18 GPM | 60.5 LPM |
| Max Head | 29 FT | 6.3 M |
Electrical/Air: 1Ph 115/230V 60Hz, 1Ph 110/220V 50Hz or 3Ph 230/460V 50/60Hz
Inlet: 1"OD
Outlet: 3/4"OD
Material: Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers)
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 18 GPM | 60.5 LPM |
| Max Head | 29 FT | 6.3 M |
Electrical/Air: 1Ph 115/230V 60Hz, 1Ph 110/220V 50Hz, or 3Ph 230/460V 50/60Hz
Inlet: 1"FPT
Outlet: 1/2"MPT
Material: Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers)
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 18 GPM | 60.5 LPM |
| Max Head | 29 FT | 6.3 M |
Electrical/Air: 1Ph 115/230V 60Hz, 1Ph 110/220V 50Hz, or 3Ph 230/460V 50/60Hz
Inlet: 1"FPT
Outlet: 1/2"MPT
Material: Glass Filled Kynar (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers)
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 18 GPM | 60.5 LPM |
| Max Head | 29 FT | 6.3 M |
Electrical/Air: 1Ph 115/230V 60Hz, 1Ph 110/220V 50Hz, or 3Ph 230/460V 50/60Hz
Inlet: 1"FPT
Outlet: 1/2"MPT
Material: Carbon Filled Kynar (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers)
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 18 GPM | 60.5 LPM |
| Max Head | 29 FT | 6.3 M |
Electrical/Air: 1Ph 115/230V 60Hz, 1Ph 110/220V 50Hz, or 3Ph 230/460V 50/60Hz
Inlet: 1"FPT
Outlet: 1/2"MPT
Material: Ryton (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers)
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 18 GPM | 60 LPM |
| Max Head | 29 FT | 6.3 M |
Electrical/Air: 1Ph 115/230V 60Hz, 1Ph 110/220V 50Hz, or 3Ph 230/460V 50/60Hz
Inlet: 1"FPT
Outlet: 1/2"MPT
Material: 316 Stainless Steel (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing)
| System | US | Metric |
|---|---|---|
| Max Flow | 18 GPM | 68 LPM |
| Max Head | 50 FT | 15.2 M |
Electrical/Air: 60PSI and 7CFM
Inlet: 1"FPT
Outlet: 1/2"MPT
Material: Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers)
| System | US | Metric |
|---|---|---|
| Max Flow | 18 GPM | 68 LPM |
| Max Head | 50 FT | 15.2 M |
Electrical/Air: 60PSI and 7CFM
Inlet: 1"FPT
Outlet: 1/2"MPT
Material: Glass Filled Kynar (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers)
| System | US | Metric |
|---|---|---|
| Max Flow | 18 GPM | 68 LPM |
| Max Head | 50 FT | 15.2 M |
Electrical/Air: 60PSI and 7CFM
Inlet: 1"FPT
Outlet: 1/2"MPT
Material: 316 Stainless Steel (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing)
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 17 GPM | 64.4 LPM |
| Max Head | 27 FT | 8.2 M |
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 1"FPT
Outlet: 1/2"MPT
Material: Polysulfone (Front and Rear Housing, Impeller), Stainless Steel (Magnet Shell, Shaft), Buna N (O-Ring), Ceramic (Thrust Washers)
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 17 GPM | 64.4 LPM |
| Max Head | 27 FT | 8.2 M |
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 1"FPT
Outlet: 1/2"MPT
Material: Polysulfone (Impeller), 316 Stainless Steel (Front and Rear Housing, Magnet Shell, Shaft), Buna N (O-Ring), Ceramic (Thrust Washers), Carbon (Bushing)
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 18 GPM | 60 LPM |
| Max Head | 29 FT | 8.9 M |
Electrical/Air: 1Ph 115/230V 60Hz, 1Ph 110/220V 50Hz
Inlet: 1"FPT
Outlet: 1/2"MPT
Material: Polysulfone (Impeller), 316 Stainless Steel (Front and Rear Housing, Magnet Shell, Shaft), Buna N (O-Ring), Ceramic (Thrust Washers), Carbon (Bushing)
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 18 GPM | 60.5 LPM |
| Max Head | 29 FT | 6.3 M |
Electrical/Air: 1Ph 115/230V 60Hz, 1Ph 110/220V 50Hz, or 3Ph 230/460V 50/60Hz, or 3Ph 575V 60Hz
Inlet: 1"MPT (750 Self Priming Chamber)
Outlet: 1/2"MPT (Pump Outlet)
Material: Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), High Density Polyethylene (Self Priming Chamber)
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 18 GPM | 60.5 LPM |
| Max Head | 29 FT | 6.3 M |
Electrical/Air: 1Ph 115/230V 60Hz, 1Ph 110/220V 50Hz, or 3Ph 230/460V 50/60Hz, or 3Ph 575V 60Hz
Inlet: 1"MPT (750 Self Priming Chamber)
Outlet: 1/2"MPT (Pump Outlet)
Material: Glass Filled Kynar (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), High Density Polyethylene (Self Priming Chamber)
| System | US | Metric |
|---|---|---|
| Max Flow | 18 GPM | 68 LPM |
| Max Head | 50 FT | 15.2 M |
Electrical/Air: 60PSI and 7CFM
Inlet: 1"MPT (750 Self Priming Chamber)
Outlet: 1/2"MPT
Material: Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers)
