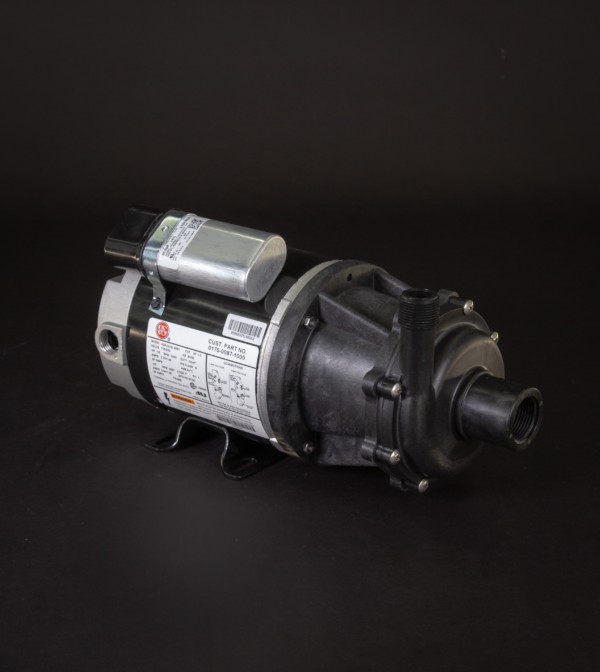

March Pump Series 5.5 are centrifugal magnetic drive pumps which have a maximum flow of 30GPM and a maximum head of 41 feet. They are available in Polypropylene, Kynar, Virgin Kynar, and Stainless Steel materials. The inlet is 1 inch and the outlet is 3/4 inch. They come with 1/5 and 1/3 horsepower motors, in both single (115V/230V) and three phase (230V/460V). Explosion proof motors for hazardous locations and 575V motors are additional options.
Unit System | 60Hz | 50Hz |
---|---|---|
Max Flow | 30 GPM | 102 LPM |
Max Head | 41 FT | 9 M |
Electrical/Air: 1Ph 115/230V 50/60Hz
Inlet: 1"FPT
Outlet: 3/4"MPT
Material: Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers)
Unit System | 60Hz | 50Hz |
---|---|---|
Max Flow | 30 GPM | 102 LPM |
Max Head | 41 FT | 9 M |
Electrical/Air: 1Ph 115/230V 50/60Hz
Inlet: 1"FPT
Outlet: 3/4"MPT
Material: Glass Filled Kynar (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers)
Unit System | 60Hz | 50Hz |
---|---|---|
Max Flow | 30 GPM | 102 LPM |
Max Head | 41 FT | 9 M |
Electrical/Air: 1Ph 115/208/230V 60Hz & 110/220V 50Hz or 3Ph 230/460V 60Hz & 190/220/380/415V 50Hz, or 3Ph 575V 60Hz
Inlet: 1"FPT
Outlet: 3/4"MPT
Material: Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers)
Unit System | 60Hz | 50Hz |
---|---|---|
Max Flow | 30 GPM | 102 LPM |
Max Head | 41 FT | 9 M |
Electrical/Air: 1Ph 115/208/230V 60Hz & 110/220V 50Hz or 3Ph 230/460V 60Hz & 190/220/380/415V 50Hz, or 3Ph 575V 60Hz
Inlet: 1"FPT
Outlet: 3/4"MPT
Material: Glass Filled Kynar (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers)
Unit System | 60Hz | 50Hz |
---|---|---|
Max Flow | 30 GPM | 102 LPM |
Max Head | 41 FT | 9 M |
Electrical/Air: 1Ph 115/208/230V 60Hz & 110/220V 50Hz or 3Ph 230/460V 60Hz & 190/220/380/415V 50Hz, or 3Ph 575V 60Hz
Inlet: 1"FPT
Outlet: 3/4"MPT
Material: 316 Stainless Steel (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing)
