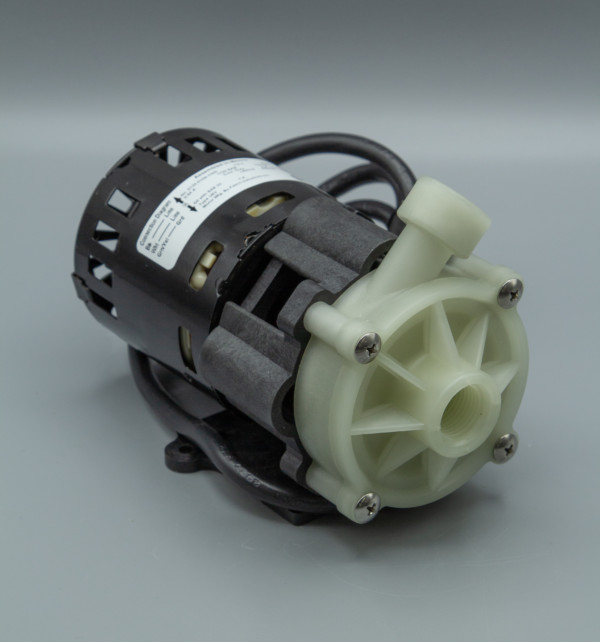

March Pump Series MDX are centrifugal magnetic drive pumps which have a maximum flow of 10GPM and a maximum head of 17 feet. They are available in Polypropylene, Ryton, and Kynar materials. There are multiple inlet and outlet connections. The horsepower ranges from 1/40 to 1/5 horsepower, and are available in 115V or 230V. Air Power motors are an additional option.
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 6 GPM | 22 LPM |
| Max Head | 7 FT | 1.6 M |
Electrical/Air: 115V 60Hz or 230V 50/60Hz
Inlet: 1/2"OD
Outlet: 1/2"OD
Material: Polypropylene (Front Housing, Impeller), Carbon Filled Kynar (Rear Housing, Shaft), Buna N (O-Ring), Ceramic Magnet
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 6 GPM | 22 LPM |
| Max Head | 7 FT | 1.6 M |
Electrical/Air: 115V 60Hz or 230V 50/60Hz
Inlet: 5/8"OD
Outlet: 5/8"OD
Material: Polypropylene (Front Housing, Impeller), Carbon Filled Kynar (Rear Housing, Shaft), Buna N (O-Ring), Ceramic Magnet
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 8.5 GPM | 30 LPM |
| Max Head | 19 FT | 4 M |
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 1/2"OD
Outlet: 1/2"OD
Material: Polypropylene (Front Housing and Impeller), Carbon filled Kynar (Rear Housing, Shaft), Ryton (Thrust Washer), Buna N (O-Ring), Stainless Steel (Screw) Ceramic Magnet
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 8.5 GPM | 30 LPM |
| Max Head | 19 FT | 4 M |
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 5/8"OD
Outlet: 5/8"OD
Material: Polypropylene (Front Housing and Impeller), Carbon filled Kynar (Rear Housing, Shaft), Ryton (Thrust Washer), Buna N (O-Ring), Stainless Steel (Screw) Ceramic Magnet
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 7 GPM | 22 LPM |
| Max Head | 7 FT | 1.6 M |
Electrical/Air: 115V 60Hz or 230V 50/60Hz
Inlet: 1/2"FPT
Outlet: 3/8"FPT
Material: Polypropylene (Front and Rear Housing, Impeller), Ceramic (Shaft, Thrust Washer), Buna N (O-Ring), Ceramic Magnet
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 8.5 GPM | 30 LPM |
| Max Head | 19 FT | 4 M |
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 1/2"FPT
Outlet: 3/8"FPT
Material: Polypropylene (Front and Rear Housing, Impeller), Ceramic (Shaft, Thrust Washer), Buna N (O-Ring), Ceramic Magnet
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 8 GPM | 30 LPM |
| Max Head | 16 FT | 3.5 M |
Electrical/Air: 115V 50/60Hz
Inlet: 1/2"MPT
Outlet: 1/2"MPT
Material: Ryton (Front and Rear Housing, Impeller), Ceramic (Shaft, Thrust Washer), Viton (O-Ring)
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 8 GPM | 30 LPM |
| Max Head | 16 FT | 3.5 M |
Electrical/Air: 115V 50/60Hz
Inlet: 1/2"MPT
Outlet: 1/2"MPT
Material: Glass filled Kynar (Front and Rear Housing, Impeller), Ceramic (Shaft, Thrust Washer), Viton (O-Ring)
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 10 GPM | 35 LPM |
| Max Head | 17 FT | 3.7 M |
Electrical/Air: 1Ph 115/230V 50/60Hz
Inlet: 1/2"MPT
Outlet: 1/2"MPT
Material: Ryton (Front and Rear Housing, Impeller), Ceramic (Shaft, Thrust Washer), Viton (O-Ring)
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 10 GPM | 35 LPM |
| Max Head | 17 FT | 3.7 M |
Electrical/Air: 1Ph 115/230V 50/60Hz
Inlet: 1/2"MPT
Outlet: 1/2"MPT
Material: Glass filled Kynar (Front and Rear Housing, Impeller), Ceramic (Shaft, Thrust Washer), Viton (O-Ring)
| System | US | Metric |
|---|---|---|
| Max Flow | 9 GPM | 34 LPM |
| Max Head | 28 FT | 8.8 M |
Electrical/Air: 21PSI and 3CFM
Inlet: 1/2"MPT
Outlet: 1/2"MPT
Material: Ryton (Front and Rear Housing, Impeller), Ceramic (Shaft, Thrust Washer), Viton (O-Ring)
| System | US | Metric |
|---|---|---|
| Max Flow | 9 GPM | 34 LPM |
| Max Head | 28 FT | 8.5 M |
Electrical/Air: 21PSI and 3CFM
Inlet: 1/2"MPT
Outlet: 1/2"MPT
Material: Carbon filled Kynar (Front and Rear Housing, Impeller), Ceramic (Shaft, Thrust Washer), Viton (O-Ring)
