March Pump Series 809-HS are centrifugal magnetic drive pumps which have a maximum flow of 8GPM and a maximum head of 15.5 feet. They are available in Polysulfone, Stainless Steel, and Bronze materials. They are available with 1/2 and 3/4 inch inlets inch inlets and 1/2 inch outlets. The horsepower of the motor is 1/25. They are available in AC 115V or 230V, and DC Brushtype and Brushless 12V or 24V.
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 6 GPM | 18.9 LPM |
| Max Head | 12.1 FT | 2.5 M |
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 1/2"MPT
Outlet: 1/2"MPT
Material: Polysulfone (Front Housing), Stainless Steel (Rear Housing, Shaft), Teflon (Thrust Washer), Silicone (O-Ring), Ryton/Teflon/Glass (Impeller)

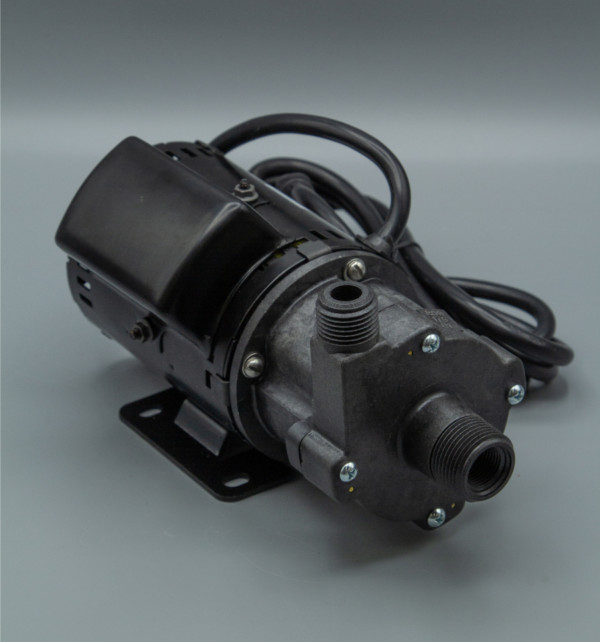

| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 7.5 GPM | 26.4 LPM |
| Max Head | 12.1 FT | 2.5 M |
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 3/8"FPT & 3/4"MPT
Outlet: 1/2"MPT
Material: Polysulfone (Front Housing), Stainless Steel (Rear Housing, Shaft), Teflon (Thrust Washer), Silicone (O-Ring), Ryton/Teflon/Glass (Impeller)

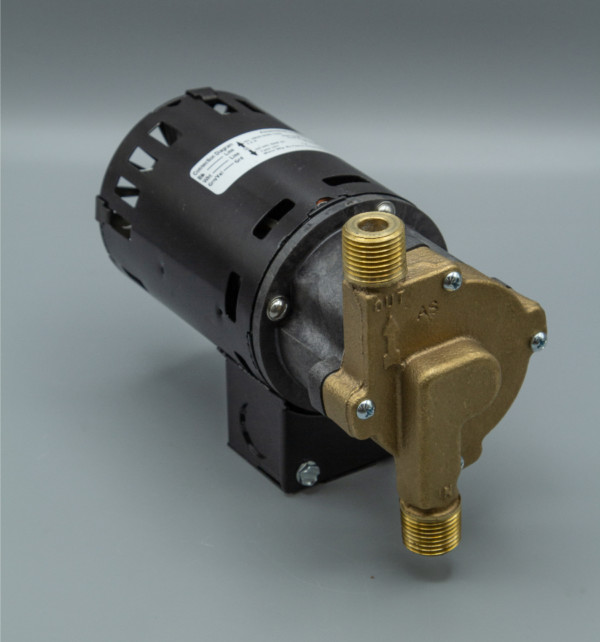

| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 6 GPM | 18.9 LPM |
| Max Head | 12.1 FT | 2.5 M |
Electrical/Air: 115V 50/60HZ or 230V 50/60HZ
Inlet: 1/2"MPT
Outlet: 1/2"MPT
Material: Bronze (Front Housing), Stainless Steel (Rear Housing, Shaft), Teflon (Thrust Washer), Silicone (O-Ring), Ryton/Teflon/Glass (Impeller)

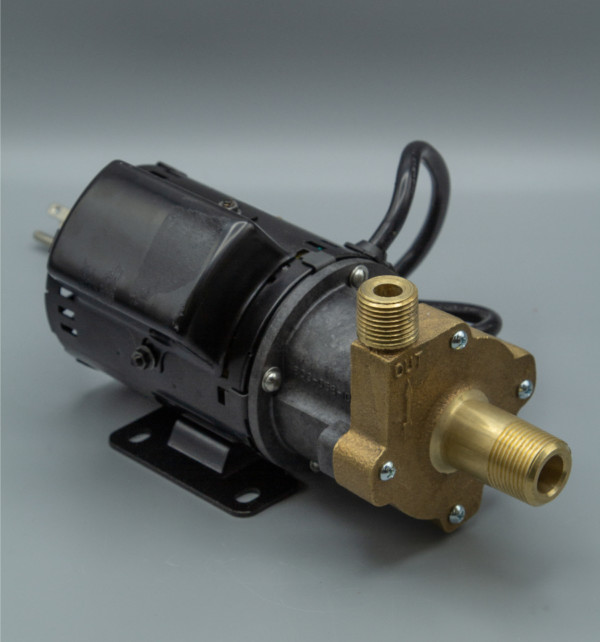

| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 7.5 GPM | 26.4 LPM |
| Max Head | 12.1 FT | 2.5 M |
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 3/4"MPT
Outlet: 1/2"MPT
Material: Bronze (Front Housing), Stainless Steel (Rear Housing, Shaft), Teflon (Thrust Washer), Silicone (O-Ring), Ryton/Teflon/Glass (Impeller)

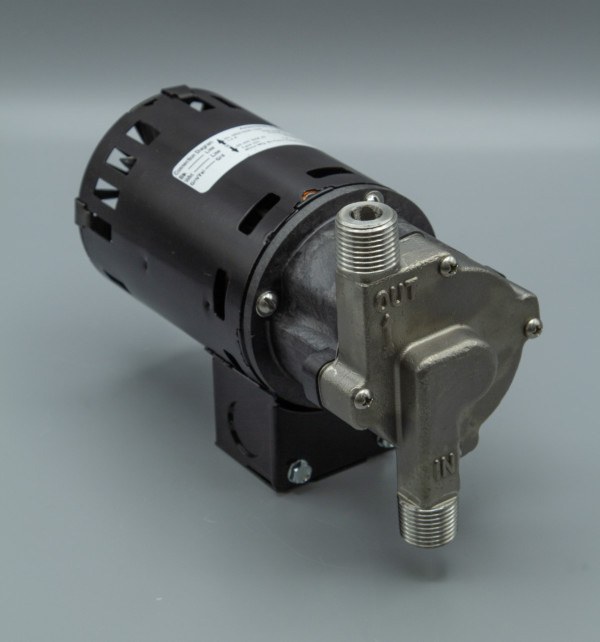

| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 6 GPM | 18.9 LPM |
| Max Head | 12.1 FT | 2.5 M |
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 1/2"MPT
Outlet: 1/2"MPT
Material: Stainless Steel (Front and Rear Housing, Shaft), Teflon (Thrust Washer), Silicone (O-Ring), Ryton/Teflon/Glass (Impeller)

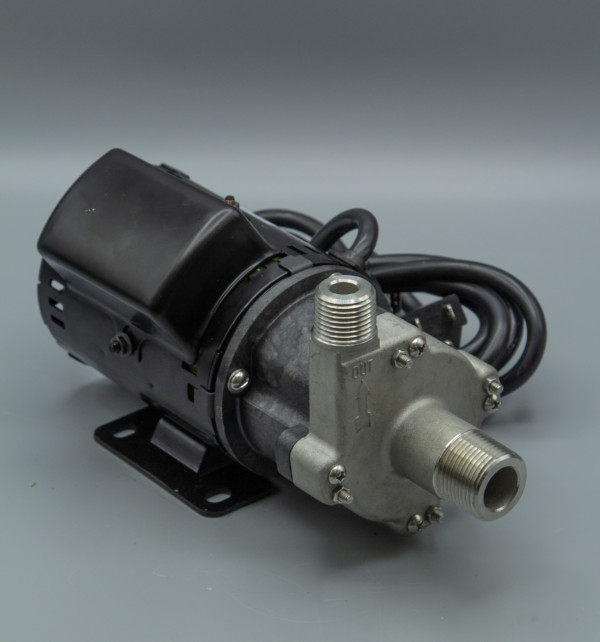

| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 7.5 GPM | 26.4 LPM |
| Max Head | 12.1 FT | 2.5 M |
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 3/4"MPT
Outlet: 1/2"MPT
Material: Stainless Steel (Front and Rear Housing, Shaft), Teflon (Thrust Washer), Silicone (O-Ring), Ryton/Teflon/Glass (Impeller)
| System | US | Metric |
|---|---|---|
| Max Flow | 6 GPM | 22.7 LPM |
| Max Head | 15.5 FT | 4.7 M |
Electrical/Air: 12V (Voltage Range 0-14) or 24V (Voltage Range 0-26)
Inlet: 1/2"MPT
Outlet: 1/2"MPT
Material: Polysulfone (Front Housing), Stainless Steel (Rear Housing. Shaft), Teflon (Thrust Washer), Silicone (O-Ring), Ryton/Teflon/Glass (Impeller)
| System | US | Metric |
|---|---|---|
| Max Flow | 8 GPM | 30.2 LPM |
| Max Head | 15.5 FT | 4.7 M |
Electrical/Air: 12V (Voltage Range 0-14) or 24V (Voltage Range 0-26)
Inlet: 3/8"FPT & 3/4"MPT
Outlet: 1/2"MPT
Material: Polysulfone (Front Housing), Stainless Steel (Rear Housing, Shaft), Teflon (Thrust Washer), Silicone (O-Ring), Ryton/Teflon/Glass (Impeller)
| System | US | Metric |
|---|---|---|
| Max Flow | 6 GPM | 22.7 LPM |
| Max Head | 15.5 FT | 4.7 M |
Electrical/Air: 12V (Voltage Range 0-14) or 24V (Voltage Range 0-26)
Inlet: 1/2"MPT
Outlet: 1/2"MPT
Material: Bronze (Front Housing), Stainless Steel (Rear Housing, Shaft), Teflon (Thrust Washer), Silicone (O-Ring), Ryton/Teflon/Glass (Impeller)
| System | US | Metric |
|---|---|---|
| Max Flow | 8 GPM | 30.2 LPM |
| Max Head | 15.5 FT | 4.7 M |
Electrical/Air: 12V (Voltage Range 0-14) or 24V (Voltage Range 0-26)
Inlet: 3/4"MPT
Outlet: 1/2"MPT
Material: Bronze (Front Housing), Stainless Steel (Rear Housing, Shaft), Teflon (Thrust Washer), Silicone (O-Ring), Ryton/Teflon/Glass (Impeller)
| System | US | Metric |
|---|---|---|
| Max Flow | 6 GPM | 22.7 LPM |
| Max Head | 15.5 FT | 4.7 M |
Electrical/Air: 12V (Voltage Range 0-14) or 24V (Voltage Range 0-26)
Inlet: 1/2"MPT
Outlet: 1/2"MPT
Material: Stainless Steel ( Front and Rear Housing, Shaft), Teflon (Thrust Washer), Silicone (O-Ring), Ryton/Teflon/Glass (Impeller)
| System | US | Metric |
|---|---|---|
| Max Flow | 8 GPM | 30.2 LPM |
| Max Head | 15.5 FT | 4.7 M |
Electrical/Air: 12V (Voltage Range 0-14) or 24V (Voltage Range 0-26)
Inlet: 3/4"MPT
Outlet: 1/2"MPT
Material: Stainless Steel (Front Housing, Rear Housing, Shaft), Teflon (Thrust Washer), Silicone (O-Ring), Ryton/Teflon/Glass (Impeller)
| System | US | Metric |
|---|---|---|
| Max Flow | 7.5 GPM | 28.3 LPM |
| Max Head | 25 FT | 7.6 M |
Electrical/Air: 24V (Voltage Range 14-30)
Inlet: 3/8"FPT & 3/4"MPT
Outlet: 1/2"MPT
Material: Polysulfone (Front Housing), Stainless Steel (Rear Housing, Shaft), Teflon (Thrust Washer), Silicone (O-Ring), Ryton/Teflon/Glass (Impeller)
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 7.5 GPM | 28.3 LPM |
| Max Head | 25 FT | 7.6 M |
Electrical/Air: 24V (Voltage Range 14-30)
Inlet: 3/4"MPT
Outlet: 1/2"MPT
Material: Stainless Steel (Front and Rear Housing, Shaft), Teflon (Thrust Washer), Silicone (O-Ring), Ryton/Teflon/Glass (Impeller)
