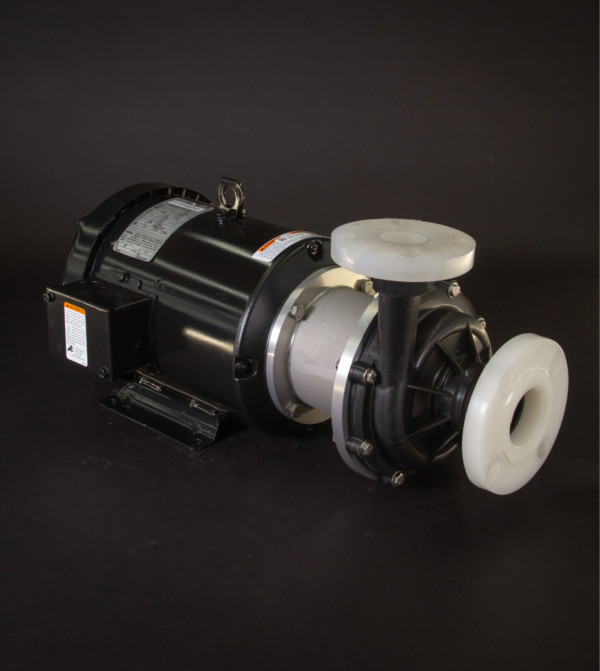

March Pump Series 7.5 are centrifugal magnetic drive pumps which have a maximum flow of 82GPM and a maximum head of 85 feet. They are available in Polypropylene and Virgin Kynar. The inlet is 2 inch and the outlet is 1.5 inch. They use a 2 horsepower three phase (230V/460V) motors. Explosion proof motors for hazardous locations and 575V motors are additional options.
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 82 GPM | 268 LPM |
| Max Head | 85 FT | 18 M |
Electrical/Air: 1Ph 115/208/230V 60Hz & 100/200V 50Hz or 3Ph 230/460V 60Hz & 190/380V 50Hz, or 3Ph 575V 60Hz
Inlet: 2"MPT
Outlet: 1-1/2"MPT
Material: Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing)
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 82 GPM | 268 LPM |
| Max Head | 85 FT | 18 M |
Electrical/Air: 1Ph 115/208/230V 60Hz & 100/200V 50Hz, or 3Ph 230/460V 60Hz & 190/380V 50Hz, or 3Ph 575V 60Hz
Inlet: 2"MPT
Outlet: 1-1/2"MPT
Material: Natural Kynar (Front Housing, Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing)
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 82 GPM | 268 LPM |
| Max Head | 85 FT | 18 M |
Electrical/Air: 1Ph 115/208/230V 60Hz & 100/200V 50Hz or 3Ph 208/230/460V 60Hz & 190/380V 50Hz, or 3Ph 575V 60Hz
Inlet: 2" ANSI Class 150 Flange
Outlet: 1.5" ANSI Class 150 Flange
Material: Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing)
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 82 GPM | 268 LPM |
| Max Head | 85 FT | 18 M |
Electrical/Air: 1Ph 115/208/230V 60Hz & 100/200V 50Hz or 3Ph 208/230/460V 60Hz & 190/380V 50Hz, or 3Ph 575V 60Hz
Inlet: 2" ANSI Class 150 Flange
Outlet: 1.5" ANSI Class 150 Flange
Material: Natural Kynar (Front Housing, Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing)
| System | US | Metric |
|---|---|---|
| Max Flow | 68 GPM | 257 LPM |
| Max Head | 65 FT | 19.8 M |
Electrical/Air: 62PSI and 130CFM
Inlet: 2"MPT
Outlet: 1-1/2"MPT
Material: Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing)
| System | US | Metric |
|---|---|---|
| Max Flow | 68 GPM | 257 LPM |
| Max Head | 65 FT | 19.8 M |
Electrical/Air: 62PSI and 130CFM
Inlet: 2"MPT
Outlet: 1-1/2"MPT
Material: Natural Kynar (Front Housing, Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing)
