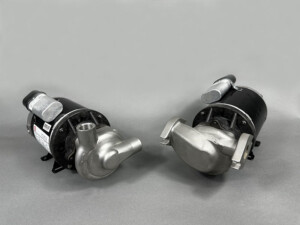

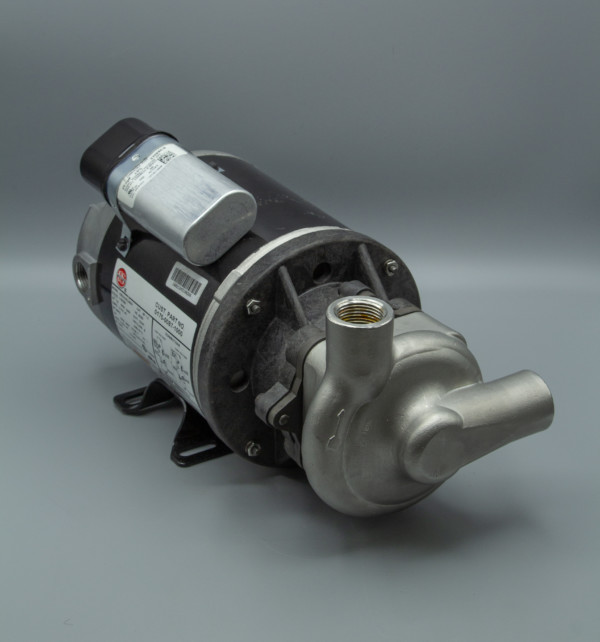

March Pump Series 830 are centrifugal magnetic drive pumps which have a maximum flow of 29GPM and a maximum head of 30.5 feet. They are available in 304 Stainless Steel or Brass materials. They are available with 3/4 inch inlets or flange connections and 3/4 inch or flange outlets. They use a 1/5 horsepower motor, and are available in single phase (115/230V).
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 30 GPM | 83.2 LPM |
| Max Head | 30.5 FT | 6.5 M |
Electrical/Air: 115/230V 50/60Hz
Inlet: Flange
Outlet: Flange
Material: Bronze (Front Housing), Stainless Steel (Rear Housing, Shaft), Ceramic (Thrust Washer), Ryton/Teflon/Carbon (Impeller), Nitrile/Fibre (Gasket)
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 30 GPM | 83.2 LPM |
| Max Head | 30.5 FT | 6.5 M |
Electrical/Air: 115/230V 50/60Hz
Inlet: Flange
Outlet: Flange
Material: 304 Stainless Steel (Front Housing, Rear Housing, Shaft), Ceramic (Thrust Washer), Ryton/Teflon/Carbon (Impeller), Nitrile/Fibre (Gasket)
| Unit System | 60Hz | 50Hz |
|---|---|---|
| Max Flow | 27 GPM | 94.6 LPM |
| Max Head | 25.3 FT | 5.4 M |
Electrical/Air: 115/230V 50/60Hz
Inlet: 3/4"FPT
Outlet: 3/4"FPT
Material: 304 Stainless Steel (Front Housing, Rear Housing, Shaft), Ceramic (Thrust Washer), Ryton/Teflon/Carbon (Impeller), Nitrile/Fibre (Gasket)
