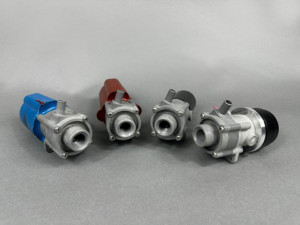

March Pump Series 893 are centrifugal magnetic drive pumps which have a maximum flow of 2.7GPM and a maximum head of 10.6 feet. They are available in Noryl, Polypropylene, and Kynar materials. They are available with 3/8 or 1/2 inch inlets and 3/8 or 1/2 inch outlets. It has a 1/200 horsepower motor, in Brushtype and Brushless DC, 12V and 24V. Submersible models are an additional option.
System | US | Metric |
---|---|---|
Max Flow | 2.7 GPM | 11 LPM |
Max Head | 10.6 FT | 3.3 M |
Electrical/Air: 24V (Voltage Range 0-26)
Inlet: 3/8"FPT
Outlet: 3/8"OD
Material: Noryl (Front and Rear Housings), Nylon (Impeller), Carbon/Teflon (Thrust Washer), Buna N (O-Ring), 316 Stainless Steel (Shaft), Ceramic Magnet
Submersible: Yes
System | US | Metric |
---|---|---|
Max Flow | 2.7 GPM | 11 LPM |
Max Head | 10.6 FT | 3.3 M |
Electrical/Air: 12V (Voltage Range 7-14)
Inlet: 3/8"FPT
Outlet: 3/8"OD
Material: Noryl (Front and Rear Housings), Nylon (Impeller), Carbon/Teflon (Thrust Washer), Buna N (O-Ring), 316 Stainless Steel (Shaft), Ceramic Magnet
System | US | Metric |
---|---|---|
Max Flow | 2.7 GPM | 11 LPM |
Max Head | 10.6 FT | 3.3 M |
Electrical/Air: 24V (Voltage Range 12-28)
Inlet: 3/8"FPT
Outlet: 3/8"OD
Material: Noryl (Front and Rear Housings), Nylon (Impeller), Carbon/Teflon (Thrust Washer), Buna N (O-Ring), 316 Stainless Steel (Shaft), Ceramic Magnet
System | US | Metric |
---|---|---|
Max Flow | 2.7 GPM | 11 LPM |
Max Head | 10.6 FT | 3.3 M |
Electrical/Air: 12V (Voltage Range 7-14)
Inlet: 3/8"FPT
Outlet: 3/8"OD
Material: Noryl (Front and Rear Housings), Nylon (Impeller), Carbon/Teflon (Thrust Washer), Buna N (O-Ring), 316 Stainless Steel (Shaft), Ceramic Magnet
Submersible: Yes
System | US | Metric |
---|---|---|
Max Flow | 2.7 GPM | 11 LPM |
Max Head | 10.6 FT | 3.3 M |
Electrical/Air: 24V (Voltage Range 12-28)
Inlet: 3/8"FPT
Outlet: 3/8"OD
Material: Noryl (Front and Rear Housings), Nylon (Impeller), Carbon/Teflon (Thrust Washer), Buna N (O-Ring), 316 Stainless Steel (Shaft), Ceramic Magnet
Submersible: Yes
System | US | Metric |
---|---|---|
Max Flow | 2.7 GPM | 11 LPM |
Max Head | 10.6 FT | 3.3 M |
Electrical/Air: 12V (Voltage Range 5.5-17.5)
Inlet: 3/8" FPT
Outlet: 3/8" OD
Material: Noryl (Front and Rear Housings), Polypropylene (Impeller), Carbon/Teflon (Thrust Washer), Buna N (O-Ring), 316 Stainless Steel (Shaft)
System | US | Metric |
---|---|---|
Max Flow | 2.7 GPM | 11 LPM |
Max Head | 10.6 FT | 3.3 M |
Electrical/Air: 24V (Voltage Range 8.5-28)
Inlet: 3/8" FPT
Outlet: 3/8" OD
Material: Noryl (Front and Rear Housings), Polypropylene (Impeller), Carbon/Teflon (Thrust Washer), Buna N (O-Ring), 316 Stainless Steel (Shaft)
System | US | Metric |
---|---|---|
Max Flow | 2.7 GPM | 11 LPM |
Max Head | 10.6 FT | 3.3 M |
Electrical/Air: 12V (Voltage Range 5.5-17.5)
Inlet: 3/8" FPT
Outlet: 3/8" OD
Material: Noryl (Front and Rear Housings), Polypropylene (Impeller), Carbon/Teflon (Thrust Washer), Buna N (O-Ring), 316 Stainless Steel (Shaft)
Submersible: Yes
System | US | Metric |
---|---|---|
Max Flow | 2.7 GPM | 11 LPM |
Max Head | 10.6 FT | 3.3 M |
Electrical/Air: 24V (Voltage Range 8.5-28)
Inlet: 3/8"FPT
Outlet: 3/8" OD
Material: Noryl (Front and Rear Housings), Polypropylene (Impeller), Carbon/Teflon (Thrust Washer), Buna N (O-Ring), 316 Stainless Steel (Shaft)
Submersible: Yes
System | US | Metric |
---|---|---|
Max Flow | 2.7 GPM | 11 LPM |
Max Head | 10.6 FT | 3.3 M |
Electrical/Air: 12V (Voltage Range 5.5-17.5)
Inlet: 3/8" FPT
Outlet: 3/8" OD
Material: Noryl (Front and Rear Housings), Polypropylene (Impeller), Carbon/Teflon (Thrust Washer), Buna N (O-Ring), 316 Stainless Steel (Shaft)
System | US | Metric |
---|---|---|
Max Flow | 2.7 GPM | 11 LPM |
Max Head | 10.6 FT | 3.3 M |
Electrical/Air: 24V (Voltage Range 8.5-28)
Inlet: 3/8" FPT
Outlet: 3/8" OD
Material: Noryl (Front and Rear Housings), Polypropylene (Impeller), Carbon/Teflon (Thrust Washer), Buna N (O-Ring), 316 Stainless Steel (Shaft)
