893-11 Brushless 12V DC Pump
March Pump’s industrial 893-11 is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and heat transfer. It is capable of generating a maximum flow of 2.7 gallons per minute at 1 foot, and its maximum head is 10.6 Feet (4.5PSI).
|Max Flow||2.7 GPM||11 LPM|
|Max Head||10.6 FT||3.3 M|
|Power||0.006 HP||0.004 KW|
- Wet End: Noryl (Front and Rear Housings), Polypropylene (Impeller), Carbon/Teflon (Thrust Washer), Buna N (O-Ring), 316 Stainless Steel (Shaft)
- Max Internal Pressure: 50 PSI / 3.4 bar
- Max Liquid Temperature: 190 °F / 87 °C
- Note: Product image may be different than actual product received.
Pump Curves & General Installation Sheets

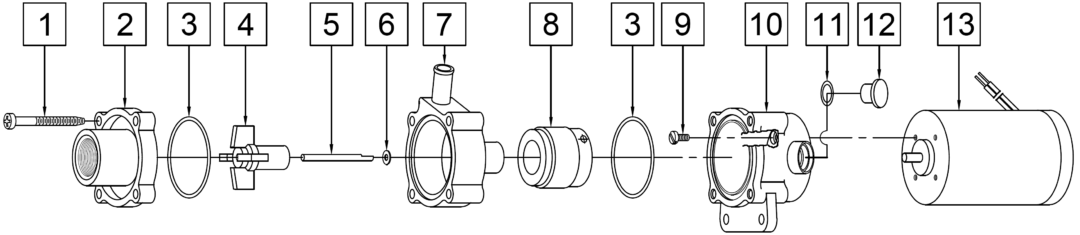

|P/N||Pump Description||Modified With|
|0893-0067-0100||1||893-11 Complete Standard Pump|
|1||0115-0062-1000||4||#7-19 x 1-7/16″ Long Self Tapping Screw (Stainless)|
|2||0893-0004-1000||1||Cover with 3/8″ FPT Inlet (Noryl)|
|3||0115-0018-1000||2||1/16″ CS x 1-7/16″ OD O-Ring (Buna N)|
|5||0115-0032-1000||1||Shaft (316 Stainless Steel)|
|6||0115-0033-1000||1||Rear Thrust Washer (Carbon/Teflon)|
|7||0893-0003-1000||1||Rear Housing with 3/8″ OD Outlet (Noryl)|
|9||0893-0066-1000||4||#4-40 x 0.147" Long Screw (Stainless)|
|10||0893-0035-1000||1||Motor Bracket (Plastic)|
|11||0210-0008-1000||1||1/16″ CS x 7/16″ OD O-Ring (Viton)|
|13||0893-0062-1000||1||12V DC Brushless Motor (Paragon)|
|3||0115-0061-1000||2||1/16″ CS x 1-7/16″ OD O-Ring (Viton)|
|3||0115-0069-1000||2||1/16″ CS x 1-7/16″ OD O-Ring (Teflon)|
|3||0750-0146-1000||2||1/16″ CS x 1-7/16″ OD O-Ring (EPDM)|
|0750-1011-1000||1||Stainless Steel Tag w/Customer's Desired Information (Not Shown)|
|Available Tests||Hydraulic, Hydrostatic, and or Mechanical|
Series 1-MD Wet Ends may be used on Series 893
19″ Leads, IP54
12V, 0.85 AMPS, 4000 RPM, 0.006 HP / 0.004 kW
Voltage Range 5.5-17.5V
Perfect for Applications Including
Applications for the 893-11 Magnetic Drive Pump include computer cooling, photographic processing equipment, refrigeration systems, and water displays.
Great for Chemicals Including
The 893-11 has pumped many chemicals. The 893-11 may have been modified to handle certain chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the 893-11. Chemical Resistance Chart
March Pump’s industrial 893-11 is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and heat transfer. It is capable of generating a maximum flow of 2.7 gallons per minute at 1 foot, and its maximum head is 10.6 Feet (4.5PSI). The standard wet end (the materials that come into contact with the solution) is composed of Noryl, Polypropylene, Carbon/Teflon, Buna N, and Stainless Steel. The inlet connection is 3/8 inch female pipe thread, and the outlet is 3/8 inch smooth. The standard motor is a 0.006 Horsepower 12V DC Brushless Motor. The motor is IP54. The 12 Volt Motor has an operating range from of 5.5V to 17.5 Volts. Above or below this voltage range, the motor will not operate. The maximum internal pressure the pump can tolerate is 50PSI, and the maximum liquid temperature is 190 Fahrenheit or 87 Celsius. The March 893-11 centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March 893-11 is suitable for your application, please contact March Pump.
