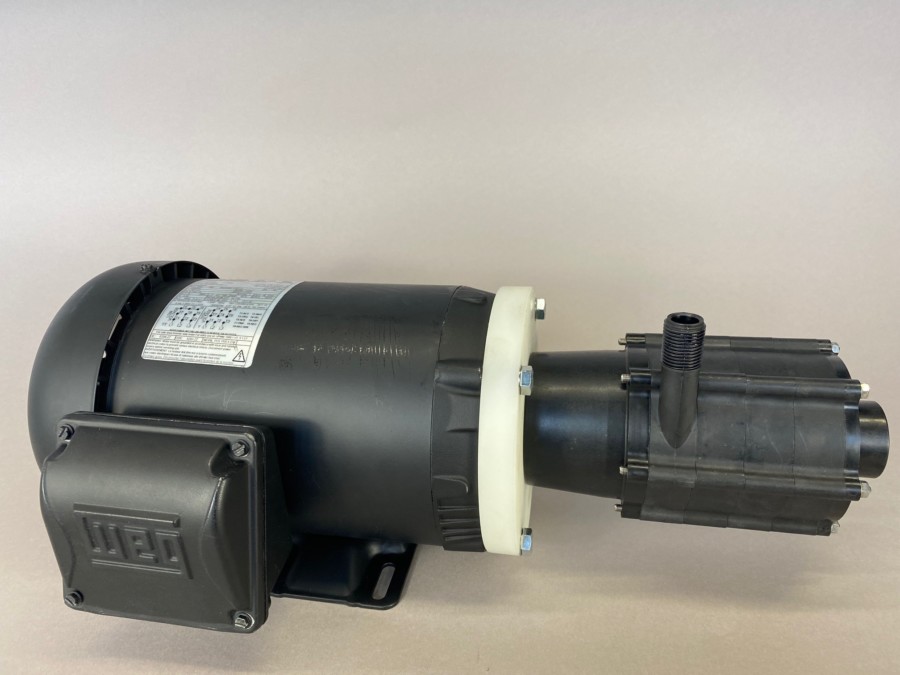

TE-4MSR-MD Magnetic Drive Pump
March Pump’s industrial TE-4MSR-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and deionized water systems. It is capable when running on 60Hz of generating a maximum flow of 10.5 gallons per minute at 5 feet, and its maximum head is 96 Feet (41.5PSI).
Unit System |
60Hz US |
Metric |
---|---|---|
Max Flow | 10.5 GPM | 39 LPM |
Max Head | 96 FT | 29.2 M |
Power | 1.5 HP | 1.11 KW |
50Hz US |
Metric |
21.5 GPM | 81 LPM |
76 FT | 23.1 M |
1 HP | 0.745 KW |
- Wet End: Ryton (Front Housing, Stage Housings, Rear Housings, Impeller), Viton (O-Ring), Ceramic (Thrust Washers), 316 Stainless Steel (Shaft)
- Additional Motor Options: Available in 1HP,1.5HP, 2HP, Explosion Proof, or Washdown
- Max Liquid Temperature: 190 °F / 87 °C
- Max Internal Pressure: 87 PSI / 6 bar
- Note: Product image may be different than actual product received.
Pump Curves & General Installation Sheets
Part Numbers
Parts Breakdown
Options
Dimensional Drawings
Motor Information
Perfect for Applications Including
Applications for the TE-4MSR-MD Magnetic Drive Pump include chemical recirculation, chemical transfer, deionized water systems, refrigerators, scrubber systems, detergent mixers, computer cooling, carbon arc furnace cooling, silver recovery systems, and marine air conditioners.
Great for Chemicals Including
The TE-4MSR-MD has pumped Acetic Acid, Citric Acid, Ethylene Glycol, Formaldehyde, Potassium Chloride, Potassium Hydroxide, Sodium Hydroxide (Caustic Soda), Sodium Chloride, Sulfuric Acid (up to 75%), Fresh Water, Salt Water, DI Water, and many more chemicals. The TE-4MSR-MD may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the TE-4MSR-MD for any of the above listed chemicals. Chemical Resistance Chart
Summary Paragraph
March Pump’s industrial TE-4MSR-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and deionized water systems. It is capable of generating a maximum flow on 60Hz of 10.5 gallons per minute at 5 feet, and its maximum head is 96 Feet (41.5PSI). The standard wet end (the materials that come into contact with the solution) is composed of Ryton, Viton, Ceramic, and 316 Stainless Steel. The inlet connection is 1 inch BSP female pipe thread, and the outlet is 1/2 inch BSP male pipe thread. The maximum internal pressure the pump can tolerate is 87 PSI, and the maximum liquid temperature is 190 Fahrenheit or 87 Celsius. The minimum flow needed leaving the pump is 4 gallons per minute on 60Hz and 3 gallons per minute on 50Hz. The March TE-4MSR-MD centrifugal magnetic drive pump is capable of handling mildly, or highly corrosive chemicals, acids, and solvents. To determine if the March TE-4MSR-MD is suitable for your application, please contact March Pump.
Request Additional Product Info
Information on this website may contain technical inaccuracies or typographical errors. Information may be changed or updated without notice. March may also make improvements and/or changes in the products described in this information at any time without notice.
Warranty: March Manufacturing Inc. Warranty and Warranty Registration
