5C-MD Magnetic Drive Pump (Submersible Only)
March Pump’s industrial 5C-MD is an American submersible seal-less centrifugal magnetic drive pump. It is capable of generating a maximum flow of 15 gallons per minute at 2 feet, and its maximum head is 27 Feet (11PSI). The 5C-MD pump must be submerged.
| Unit System |
60Hz US |
Metric |
|---|---|---|
| Max Flow | 14.5 GPM | 54.9 LPM |
| Max Head | 27 FT | 8.2 M |
| Power | 0.125 HP | 0.093 KW |
| 50Hz US |
Metric |
| 14.5 GPM | 54.8 LPM |
| 19.6 FT | 6 M |
| 0.125 HP | 0.093 KW |
- Wet End: Polypropylene (Front and Rear Housing, Impeller), Buna N (O-Ring), Ceramic (Shaft, Thrust Washers), Ceramic Magnet
- Uses: Submersible only
- When submerged, the following is also in contact with the solution: Epoxy, Stainless Steel, Noryl, Cord
- Max Internal Pressure: 50 PSI / 3.4 bar
- Max Liquid Temperature: 130 °F / 54 °C
- Note: Product image may be different than actual product received.
Pump Curves & General Installation Sheets
Part Numbers

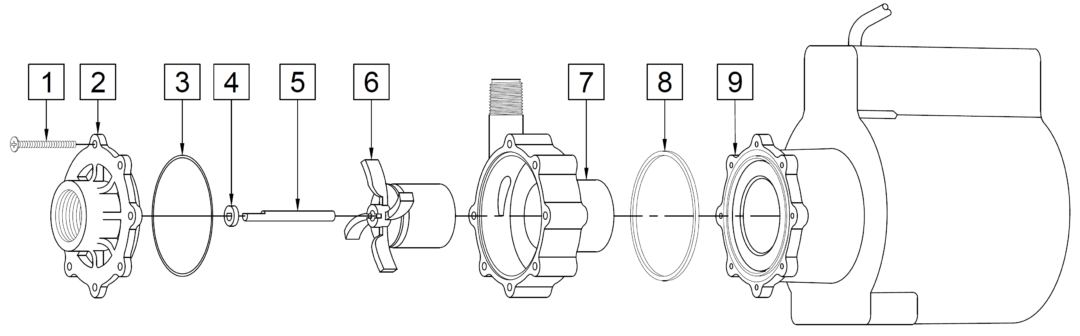

Parts Breakdown
Options
Dimensional Drawings
Motor Information
Perfect for Applications Including
The most common applications for the 5C-MD Magnetic Drive Pump is fountains.
Great for Chemicals Including
The 5C-MD has pumped Fresh Water and Salt Water. The 5C-MD may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the 5C-MD. Chemical Resistance Chart
Summary Paragraph
March Pump’s industrial 5C-MD is an American submersible seal-less centrifugal magnetic drive pump. It is capable of generating a maximum flow of 15 gallons per minute at 2 feet, and its maximum head is 27 Feet (11PSI). The 5C-MD pump must be submerged. The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, Buna N, Ceramic, and Ceramic Magnet. When submerged, Epoxy, Stainless Steel, Noryl, and the Cord are also in contact with the solution. The inlet connection is 1 inch female pipe thread, and the outlet is 1/2 male pipe thread. The standard motor is a 1 Phase 115V or 230V 0.125 Horsepower motor, which can be run on either 50 or 60 hertz (there are performance differences between the hertz options). The maximum internal pressure the pump can tolerate is 50PSI, and the maximum liquid temperature is 130 Fahrenheit or 54 Celsius. The March 5C-MD centrifugal magnetic drive pump is capable of handling fresh water, salt water, and mild chemicals. To determine if the March 5C-MD is suitable for your application, please contact March Pump.
