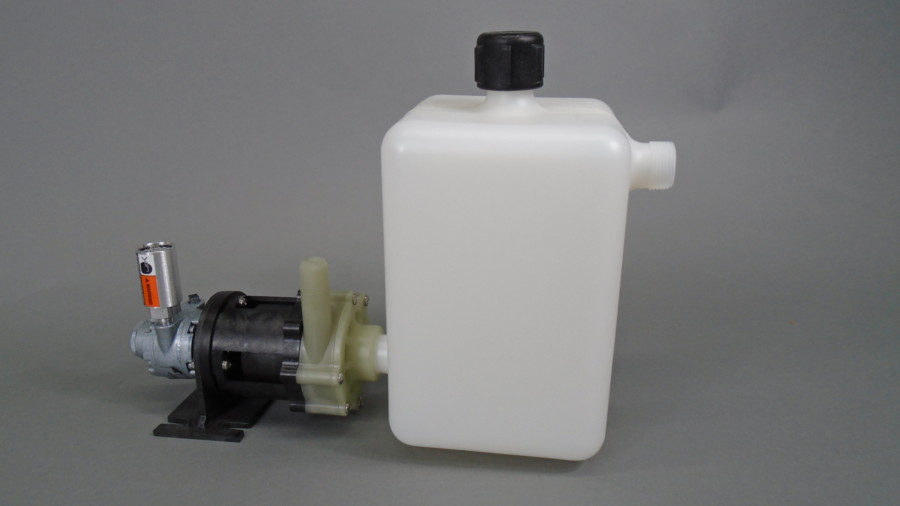

TE-5C-MD-AM with 750 Self Priming Chamber

Perfect for Applications Including

Applications for the TE-5C-MD-AM with 750 Self Priming Chamber Magnetic Drive Pump include chemical recirculation, chemical transfer, rail cars, tankers trucks, and small scrubbers.

Great for Chemicals Including

The TE-5C-MD-AM with 750 Self Priming Chamber has pumped Acetic Acid, Citric Acid, Ethylene Glycol, Formaldehyde, Hydrochloric Acid (Muriatic), Nitric Acid, Phosphoric Acid, Potassium Chloride, Potassium Hydroxide, Sodium Hydroxide (Caustic Soda), Sodium Chloride, Sulfuric Acid, Fresh Water, Salt Water, DI Water, and many more chemicals.  The TE-5C-MD-AM with 750 Self Priming Chamber may have been modified to handle these chemicals.  This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water.  Please contact March Pump to review your application before using the TE-5C-MD-AM with 750 Self Priming Chamber for any of the above listed chemicals. Chemical Resistance Chart

Summary Paragraph

March Pump’s industrial TE-5C-MD-AM with 750 Self Priming Chamber is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 17 gallons per minute at 4 feet, and its maximum head is 50 Feet (21PSI). The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, High Density Polyethylene, Viton, and Ceramic. The inlet connection is 1 inch female pipe thread, and the outlet is 1/2 inch male pipe thread.  The standard motor is a 0.125 Horsepower compressed air motor which requires 60PSI.  The maximum internal pressure the pump can tolerate is 25PSI, and the maximum liquid temperature is 130 Fahrenheit or 54 Celsius. The March TE-5C-MD-AM with 750 Self Priming Chamber centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March TE-5C-MD-AM with 750 Self Priming Chamber is suitable for your application, please contact March Pump.
