TE-5C-MD with 750 Self Priming Chamber
March Pump’s industrial TE-5C-MD with 750 Self Priming Chamber is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation and chemical transfer It is capable of generating a maximum flow of 17 gallons per minute at 4 feet, and its maximum head is 29 Feet (12PSI). It has a maximum suction lift of 10 feet.
| Unit | 60Hz | |
|---|---|---|
| System | US | Metric |
| Max Flow | 18 GPM | 68.1 LPM |
| Max Head | 29 FT | 8.85 M |
| Power | 0.2 HP | 0.149 KW |
| 50Hz | |
|---|---|
| US | Metric |
| 15.9 GPM | 60.5 LPM |
| 20.7 FT | 6.3 M |
| 0.2 HP | 0.149 KW |
- Wet End: Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), High Density Polyethylene (Self Priming Chamber)
- Max Internal Pressure: 25 PSI / 1.7 bar
- Max Liquid Temperature: 130 °F / 54 °C
- Motor Options: Available in Explosion Proof
Pump Curves & General Installation Sheets
Part Numbers

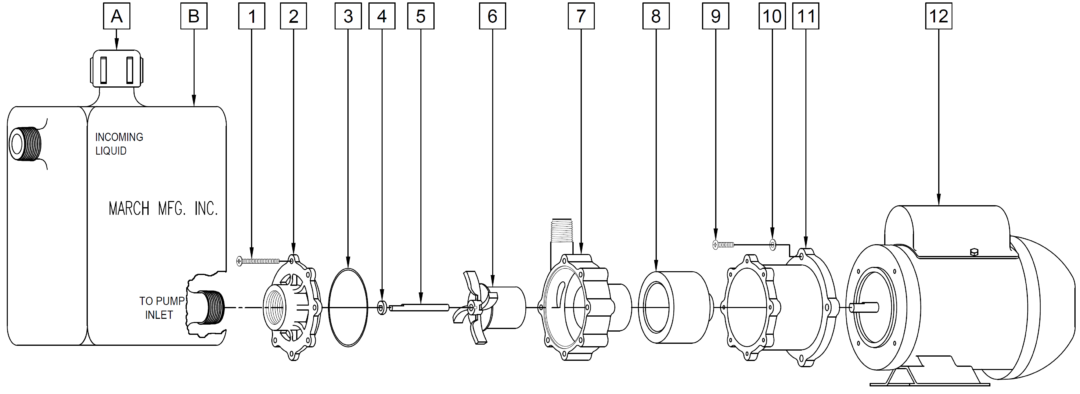

Parts Breakdown
Options
Motor Information
Perfect for Applications Including
Applications for the TE-5C-MD with 750 Self Priming Chamber Magnetic Drive Pump include chemical recirculation and chemical transfer.
Great for Chemicals Including
The TE-5C-MD with 750 Self Priming Chamber has pumped various chemicals. The TE-5C-MD with 750 Self Priming Camber may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the TE-5C-MD with 750 Self Priming Chamber. Chemical Resistance Chart and Supplemental HDPE Chemical Resistance Chart
Summary Paragraph
March Pump’s industrial TE-5C-MD with 750 Self Priming Chamber is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 17 gallons per minute at 4 feet, and its maximum head is 29 Feet (12PSI). The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, High Density Polyethylene, Viton, and Ceramic. The inlet connection is 1 inch female pipe thread, and the outlet is 1/2 inch male pipe thread. There are two standard motors. The first is a 1 Phase 60 hertz 115/230V and 50 hertz 110/220V 0.2 horsepower totally enclosed fan cooled motor. The second is a 3 Phase 60/50HZ 230/460V IEC totally enclosed 0.17 horsepower fan cooled motor. There are performance differences between the hertz options. The maximum internal pressure the pump can tolerate is 25PSI, and the maximum liquid temperature is 130 Fahrenheit or 54 Celsius. The March TE-5C-MD with 750 Self Priming Chamber centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March TE-5C-MD with 750 Self Priming Chamber is suitable for your application, please contact March Pump.
Request Additional Product Info
Information on this website may contain technical inaccuracies or typographical errors. Information may be changed or updated without notice. March may also make improvements and/or changes in the products described in this information at any time without notice.
Warranty: March Manufacturing Inc. Warranty and Warranty Registration
