TE-5SSB-MD Beer Magnetic Drive Pump
March Pump’s TE-5SSB-MD Beer Pump is an American seal-less centrifugal magnetic drive pump ideal for homebrewing. It is capable of generating a maximum flow of 18 gallons per minute at 1 foot, and its maximum head is 29 Feet (12PSI).
|Max Flow||18 GPM||68.1 LPM|
|Max Head||29 FT||6.3 M|
|Power||.2 HP||.149 KW|
|Max Flow||15.9 GPM||60 LPM|
|Max Head||20.7 FT||8.9 M|
|Power||.2 HP||.149 KW|
- Wet End: Polysulfone (Impeller), 316 Stainless Steel (Front and Rear Housing, Magnet Shell, Shaft), Buna N (O-Ring), Ceramic (Thrust Washers), Carbon (Bushing)
- Max Internal Pressure: 200 PSI / 13.7 bar
- Max Liquid Temperature: 250 °F / 121 °C
- Materials are FDA Food Compliant: Components are UL Recognized
- Note: Product image may be different than actual product received.
Pump Curves & General Installation Sheets

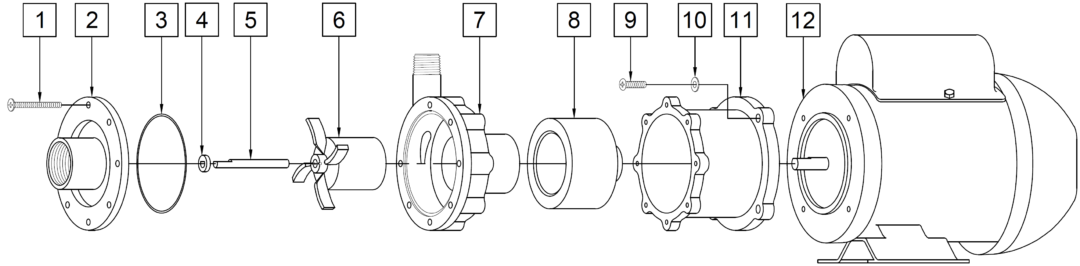

0150-0214-0700, TE-5SSB-MD 1 Phase with Weg Motor
|0150-0214-0700||1||TE-5SSB-MD, 1 Phase, Complete Standard Pump|
|1||0150-0021-1000||7||#8-32 x 1-3/4” Long Screw (Stainless)|
|2||0150-0111-0010||1||Cover with 1” FPT Inlet (316 Stainless)|
|3||0750-0981-1000||1||“O” Ring (Buna N)|
|4||0130-0028-1000||1||Thrust Washer (Ceramic)|
|6||0150-0173-0300||1||Impeller with Shell & Carbon Bushing (Polysulfone / Stainless)|
|7||0150-0110-0010||1||Rear Housing with 1/2" MPT Outlet (Stainless)|
|9||0150-0050-1000||4||#10-32 x 3/4" Long Screw (Stainless)|
|10||0150-0051-1000||4||#10 Washer (Stainless)|
|11||0150-0126-0100||1||Motor Bracket (Plastic)|
|12||0150-0213-1000||1||Motor, TEFC, 1 Phase, 115/230V, 50/60 Hz|
|0750-1011-1000||1||Stainless Steel Tag w/Customer's Desired Information (Not Shown)|
|Epoxy Protective Finish For Drive Magnet|
|Available Tests||Hydraulic, Hydrostatic, and or Mechanical|
Conduit Box, TEFC, IP44
60Hz: 1Ph 0.2HP/0.149kW, 115/230V, 2.6/1.3AMPS, 3450 RPM
50Hz: 1Ph 0.2HP/0.149kW, 110/220V, 2.4/1.2AMPS, 2850 RPM
Great for Chemicals Including
The TE-5SSB-MD Beer Pump has pumped Hot Water and Hot Wort. The TE-5SSB-MD Beer Pump may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the TE-5SSB-MD Beer Pump.
March Pump’s TE-5SSB-MD Beer Pump is an American seal-less centrifugal magnetic drive pump ideal for homebrewing. It is capable of generating a maximum flow of 18 gallons per minute at 1 foot, and its maximum head is 29 Feet (12PSI). The standard wet end (the materials that come into contact with the solution) is composed of Stainless Steel, Polysulfone, Buna N, Ceramic, and Ceramic Magnet. The inlet connection is 1 inch female pipe thread, and the outlet is 1/2 inch male pipe thread. There are two standard motors. The first is a 1 Phase 60 hertz 115/230V and 50 hertz 110/220V 0.2 horsepower totally enclosed fan cooled motor. The second is a 3 Phase 60/50HZ 230/460V IEC totally enclosed 0.17 horsepower fan cooled motor. There are performance differences between the hertz options. The maximum internal pressure the pump can tolerate is 200PSI, and the maximum liquid temperature is 250 Fahrenheit or 121 Celsius. To determine if the March TE-5SSB-MD Beer Pump is suitable for your application, please contact March Pump.
