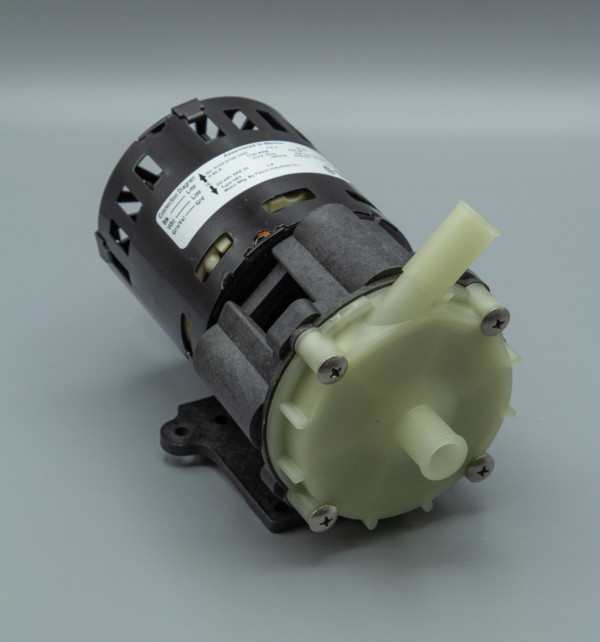

MDX-5/8 Magnetic Drive Pump
March Pump’s industrial MDX-5/8 is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation and chemical transfer. It is capable of generating a maximum flow of 6 gallons per minute at 1 foot, and its maximum head is 7 Feet (3PSI).
Unit System |
60Hz US |
Metric |
---|---|---|
Max Flow | 6 GPM | 22.7 LPM |
Max Head | 7 FT | 2.1 M |
Power | 0.025 HP | 0.019 KW |
50Hz US |
Metric |
5.8 GPM | 22 LPM |
5.2 FT | 1.6 M |
0.025 HP | 0.019 KW |
- Wet End: Polypropylene (Front Housing, Impeller), Carbon Filled Kynar (Rear Housing, Shaft), Buna N (O-Ring), Ceramic Magnet
- Max Internal Pressure: 50 PSI / 3.4 bar
- Max Liquid Temperature: 190 °F / 87 °C
- Note: Product image may be different than actual product received.
Pump Curves & General Installation Sheets
Part Numbers

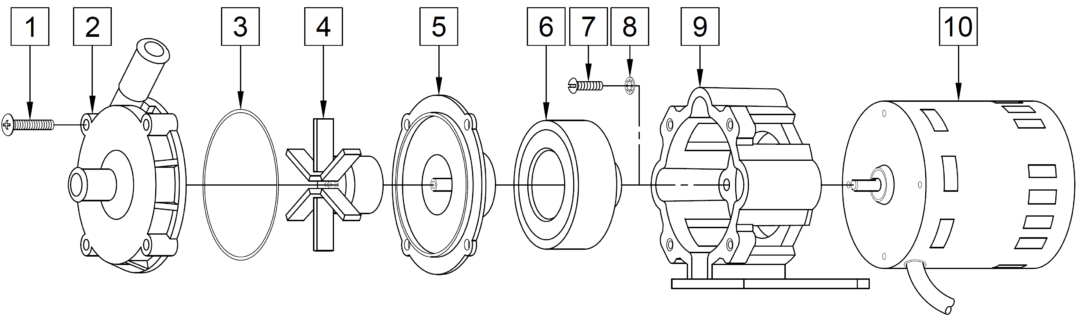

Parts Breakdown
Options
Dimensional Drawings
Motor Information
Perfect for Applications Including
Applications for the MDX-5/8 Magnetic Drive Pump include etching equipment, photographic processing equipment, ice flakers, plate processors, and marine air conditioning.
Great for Chemicals Including
The MDX-5/8 has pumped Acetic Acid, Ammonium Hydroxide, Potassium Carbonate, Sodium Chloride, Sodium Cyanide, Sodium Nitrate, Zinc Sulfate, Fresh Water, Salt Water, and many more chemicals. The MDX-5/8 may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the MDX-5/8. Chemical Resistance Chart
Summary Paragraph
March Pump’s industrial MDX-5/8 is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation and chemical transfer. It is capable of generating a maximum flow of 6 gallons per minute at 1 foot, and its maximum head is 7 Feet (3PSI). The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, carbon filled Kynar (PVDF) Buna N, and Ceramic Magnet. The inlet connection is 5/8 inch smooth, and the outlet is 5/8 inch smooth. The standard motor is a 1 Phase 115V or 230V 0.025 Horsepower fan cooled motor, which can be run on 60 hertz on 115V or 50 and 60 hertz on 230V (there are performance differences between the hertz options). The maximum internal pressure the pump can tolerate is 50PSI, and the maximum liquid temperature is 190 Fahrenheit or 87 Celsius. The March MDX-5/8 centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March MDX-5/8 is suitable for your application, please contact March Pump.
