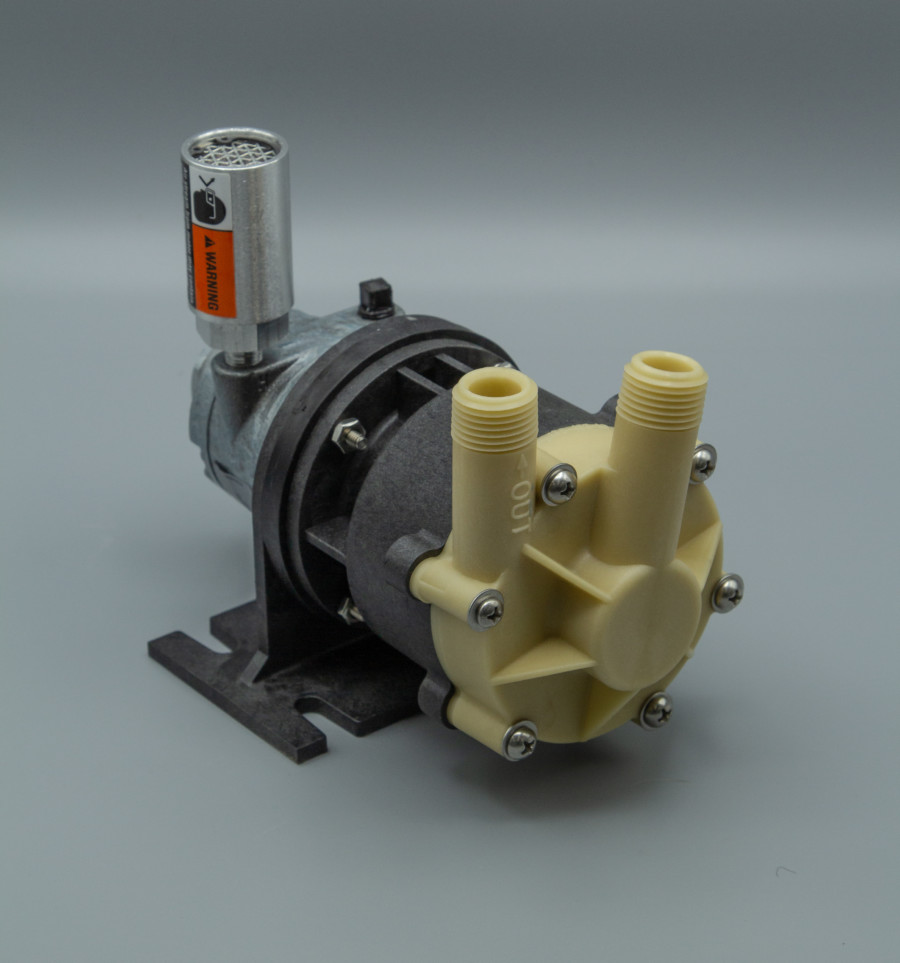

MDK-MT3-AM Magnetic Drive Pump
March Pump’s industrial MDK-MT3-AM is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation and chemical transfer. It is capable of generating a maximum flow of 9 gallons per minute at 1 foot, and its maximum head is 28 Feet (12PSI).
|Max Flow||9 GPM||34 LPM|
|Max Head||28 FT||8.5 M|
|Power||0.125 HP||0.093 KW|
- Wet End: Carbon filled Kynar (Front and Rear Housing, Impeller), Ceramic (Shaft, Thrust Washer), Viton (O-Ring)
- Max Internal Pressure: 75 PSI / 5.2 bar
- Max Liquid Temperature: 200 °F / 93 °C
- Note: Product image may be different than actual product received.
Pump Curves & General Installation Sheets
|P/N||Pump Description||Modified With|
|0135-0036-0300||1||MDK-MT3-AM Complete Standard Pump|
|1||0135-0181-1000||6||#10-32 x 1-1/8" Lg. Screw (Stainless)|
|3||0135-0152-1000||1||Front Housing with 1/2" MPT Inlet & Outlet (Kynar)|
|4||0135-0046-1000||1||1/16" CS x 2-7/8" OD "O" Ring (Viton)|
|5||0130-0028-1000||1||Thrust Washer (Ceramic)|
|8||0135-0153-1000||1||Rear Housing (Kynar)|
|9||0130-0043-0300||1||0.375" Bore Drive Magnet|
|10||0135-0135-0000||1||Motor Bracket (Plastic)|
|12||0858-0003-1000||4||#8 Split Lock Washer|
|14||0210-0038-1000||2||#8-32 Set Screw|
|17||0115-0023-1000||4||#8-32 x 1-1/8" Long Screw|
|4||0135-0122-1000||1||1/16” CS x 2-7/8” OD “O” Ring (Teflon)|
|4||0750-0150-1000||1||1/16” CS x 2-7/8” OD “O” Ring (EPDM)|
|0750-1011-1000||1||Stainless Steel Tag w/Customer's Desired Information (Not Shown)|
|Epoxy Protective Finish For Drive Magnet|
|Available Tests||Hydraulic, Hydrostatic, and or Mechanical|
0.125HP/0.093kW, 21PSI and 3CFM, 1/8″NPT Air Connection
Perfect for Applications Including
Applications for the MDK-MT3-AM Magnetic Drive Pump include chemical transfer and chemical recirculation.
Great for Chemicals Including
The MDK-MT3-AM has pumped Acetic Acid, Citric Acid, Ethylene Glycol, Formaldehyde, Hydrochloric Acid (Muriatic), Hydrofluoric Acid, Hydrogen Peroxide, Nitric Acid, Phosphoric Acid, Potassium Chloride, Sodium Chloride, Sodium Hypochlorite, Sulfuric Acid, Fresh Water, Salt Water, DI Water, and many more chemicals. The MDK-MT3-AM may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the MDK-MT3-AM. Chemical Resistance Chart
March Pump’s industrial MDK-MT3-AM is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation and chemical transfer. It is capable of generating a maximum flow of 9 gallons per minute at 1 foot, and its maximum head is 28 Feet (12PSI). The standard wet end (the materials that come into contact with the solution) is composed of glass filled Kynar (PVDF), Viton, and Ceramic. The inlet connection is 1/2 inch male pipe thread, and the outlet is 1/2 inch male pipe thread. The standard motor is a 0.125 Horsepower Compressed Air Motor which requires 21PSI. The maximum internal pressure the pump can tolerate is 75PSI, and the maximum liquid temperature is 200 Fahrenheit or 93 Celsius. The March MDK-MT3-AM centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March MDK-MT3-AM is suitable for your application, please contact March Pump.
