TE-7.5K-MD-AM
| System | US | Metric |
|---|---|---|
| Max Flow | 68 GPM | 257 LPM |
| Max Head | 65 FT | 19.8 M |
| Power | 5 HP | 3.72 KW |
- Wet End: Natural Kynar (Front Housing, Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing)
- Max Internal Pressure: 60 PSI / 4.1 bar
- Max Liquid Temperature: 190 °F / 87°C

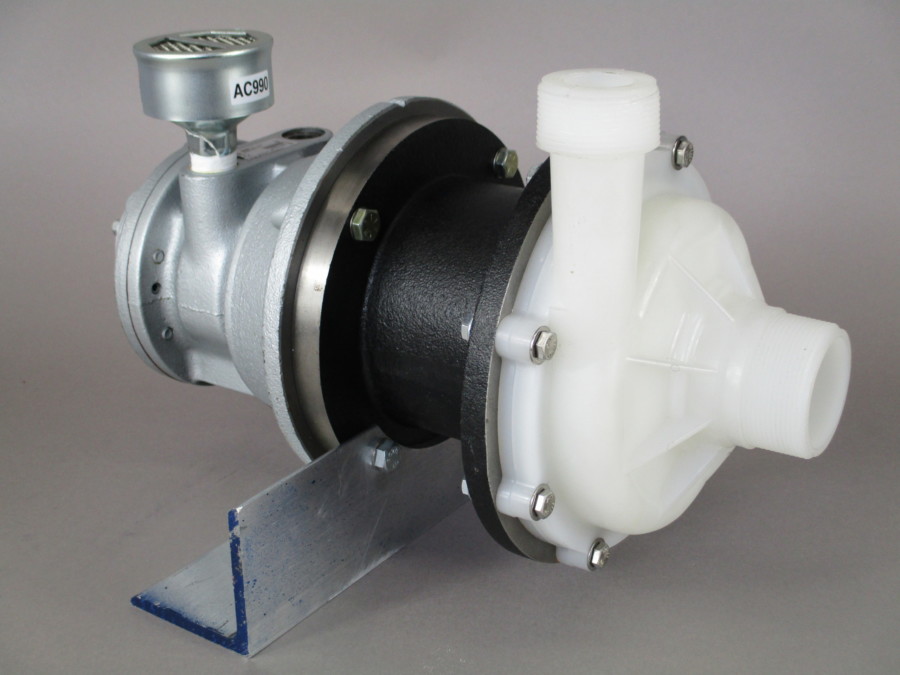

- Note: Product image may be different than actual product received.
Pump Curves & General Installation Sheets
Part Numbers
Options
Dimensional Drawings
Motor Information
Perfect for Applications Including
Applications for the TE-7.5K-MD-AM Magnetic Drive Pump include chemical recirculation, chemical transfer, bicarbonate systems, deionized water systems, refrigerators, scrubber systems, detergent mixers, computer cooling, carbon arc furnace cooling, ion exchange recovery, and aquariums.
Great for Chemicals Including
The TE-7.5K-MD-AM has pumped Acetic Acid, Citric Acid, Ethylene Glycol, Formaldehyde, Hydrochloric Acid (Muriatic), Hydrofluoric Acid, Hydrogen Peroxide, Nitric Acid, Phosphoric Acid, Potassium Chloride, Sodium Chloride, Sodium Hypochlorite, Sulfuric Acid, Fresh Water, Salt Water, DI Water, and many more chemicals. The TE-7K-MD-AM may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the TE-7.5K-MD-AM. Chemical Resistance Chart
Summary Paragraph
March Pump’s industrial TE-7.5K-MD-AM is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 68 gallons per minute at 20 feet, and its maximum head is 65 Feet (28 PSI). The standard wet end (the materials that come into contact with the solution) is composed of Natural Kynar, Viton, Carbon, and Ceramic. The inlet connection is 2 inch female pipe thread, and the outlet is 1.5 inch male pipe thread. The standard motor is a Compressed Air Motor which may require 62 PSI and 130 CFM. The maximum internal pressure the pump can tolerate is 60 PSI, and the maximum liquid temperature is 190 Fahrenheit or 87 Celsius. The March TE-7.5K-MD-AM centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March TE-7.5K-MD-AM is suitable for your application, please contact March Pump.
