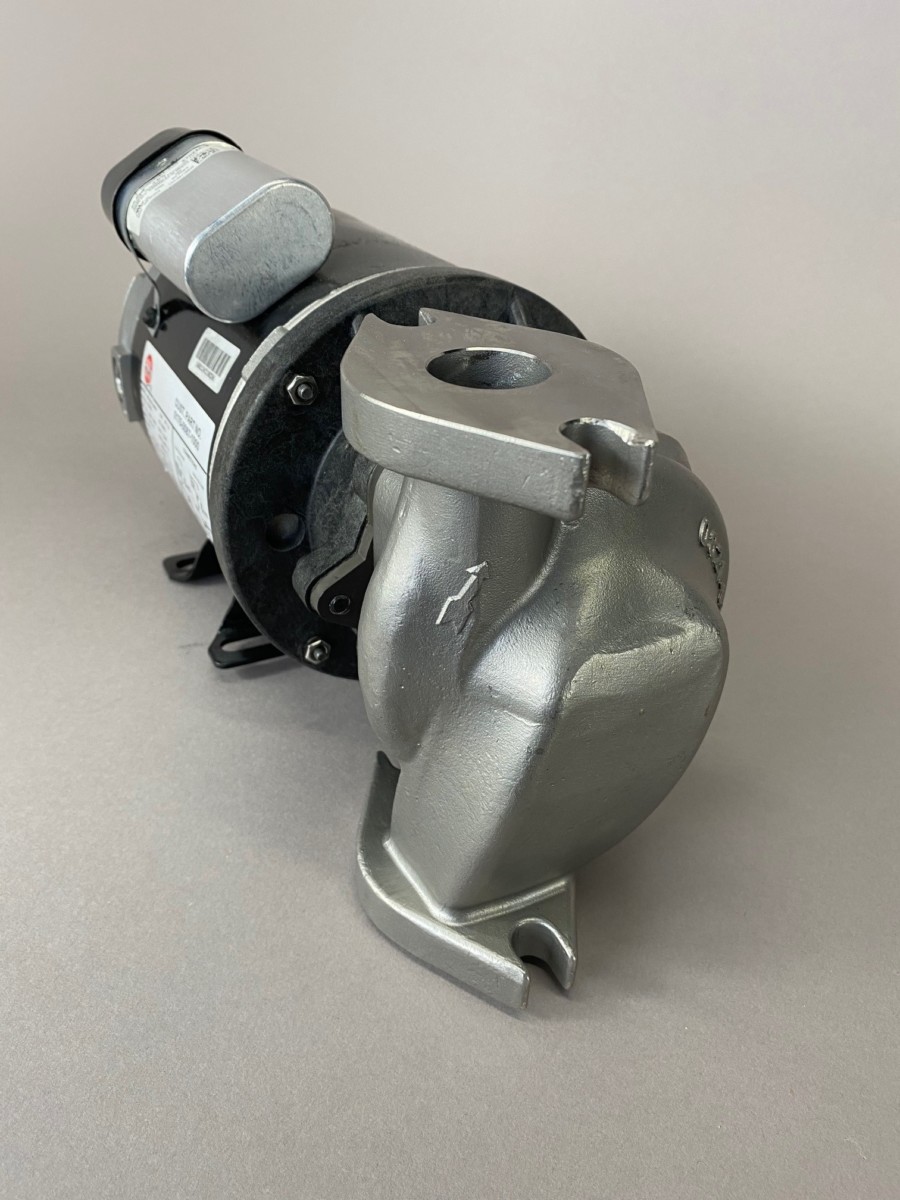

830-SS Magnetic Drive Pump
March Pump’s industrial 830-SS is an American seal-less centrifugal magnetic drive pump ideal for applications such as hot water systems. It is capable of generating a maximum flow of 30 gallons per minute at 6 feet, and its maximum head is 30.5 Feet (13PSI).
Unit System |
60Hz US |
Metric |
---|---|---|
Max Flow | 30 GPM | 113.5 LPM |
Max Head | 30.5 FT | 9.3 M |
Power | 0.2 HP | 0.149 KW |
50Hz US |
Metric |
22 GPM | 83.2 LPM |
21.3 FT | 6.5 M |
0.2 HP | 0.149 KW |
- Wet End: 304 Stainless Steel (Front Housing, Rear Housing, Shaft), Ceramic (Thrust Washer), Ryton/Teflon/Carbon (Impeller), Nitrile/Fibre (Gasket)
- Max Internal Pressure: 150 PSI / 10.3 bar
- Max Liquid Temperature: 250 °F / 121 °C
- Note: Product image may be different than actual product received.
Pump Curves & General Installation Sheets
Part Numbers

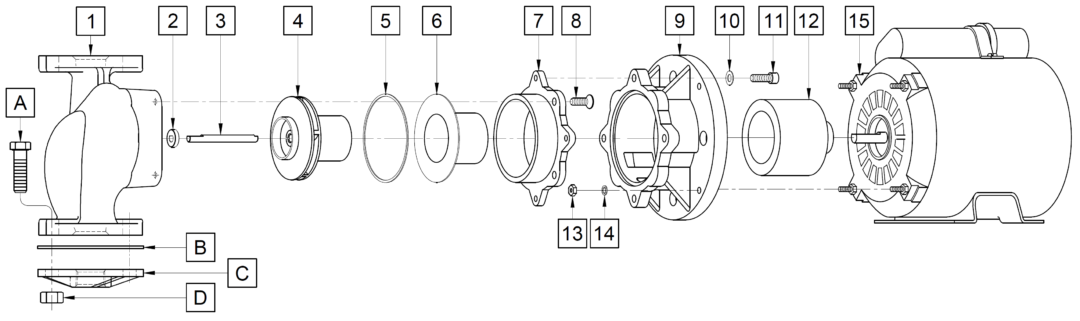

Parts Breakdown
Options
Dimensional Drawings
Motor Information
Perfect for Applications Including
Applications for the 830-SS Magnetic Drive Pump include hot water and hot oil systems.
Great for Chemicals Including
The 830-SS has pumped Cutting Oils, Ethylene Glycol, Hot Water and Salt Water. The 830-SS may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the 830-SS. Chemical Resistance Chart
Summary Paragraph
March Pump’s industrial 830-SS is an American seal-less centrifugal magnetic drive pump ideal for applications such as hot water systems. It is capable of generating a maximum flow of 30 gallons per minute at 6 feet, and its maximum head is 30.5 Feet (13PSI). The standard wet end (the materials that come into contact with the solution) is composed of 304 Stainless Steel, Ceramic, Ryton/Teflon/Carbon, and Nitrile/Fibre. The inlet connection is a flange, and the outlet is a flange. The standard motor is a 1 Phase 115/230V 0.2 Horsepower fan cooled motor, which can be run on either 50 or 60 hertz (there are performance differences between the hertz options). The maximum internal pressure the pump can tolerate is 150PSI, and the maximum liquid temperature is 250 Fahrenheit or 121 Celsius. To determine if the March 830-SS is suitable for your application, please contact March Pump.
