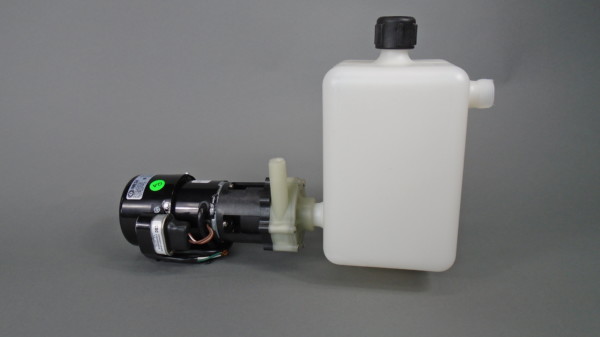

BC-4C-MD with 750 Self Priming Chamber

Perfect for Applications Including

Applications for the BC-4C-MD Magnetic Drive Pump include  chemical transfer, chemical recirculation, and plating.

Great for Chemicals Including

The BC-4C-MD with 750 Self Priming Chamber has pumped numerous chemicals.  The BC-4C-MD with 750 Self Priming Chamber may have been modified to handle these chemicals.  This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water.  Please contact March Pump to review your application before using the BC-4C-MD with 750 Self Priming Chamber. Chemical Resistance Chart and Supplemental HDPE Chemical Resistance Chart

Summary Paragraph

March Pump’s industrial BC-4C-MD with 750 Self Priming Chamber is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation and chemical transfer. It is capable of generating a maximum flow of 14 gallons per minute at 1 feet, and its maximum head is 21.5 Feet (9PSI).  It has a maximum suction lift of 10 feet. The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, Viton, Ceramic, and High Density Polyethylene. The inlet connection is 1 inch male pipe thread on the 750 self priming chamber, and the outlet is 1/2 inch male pipe thread on the pump. The standard motor is a 1 Phase 115V or 230V 0.1 horsepower blast cooled motor, which can be run on either 50 or 60 hertz (there are performance differences between the hertz options).  The maximum internal pressure the pump can tolerate is 25PSI, and the maximum liquid temperature is 130 Fahrenheit or 54 Celsius. The March BC-4C-MD with 750 Self Priming Chamber centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March BC-4C-MD with 750 Self Priming Chamber is suitable for your application, please contact March Pump.
