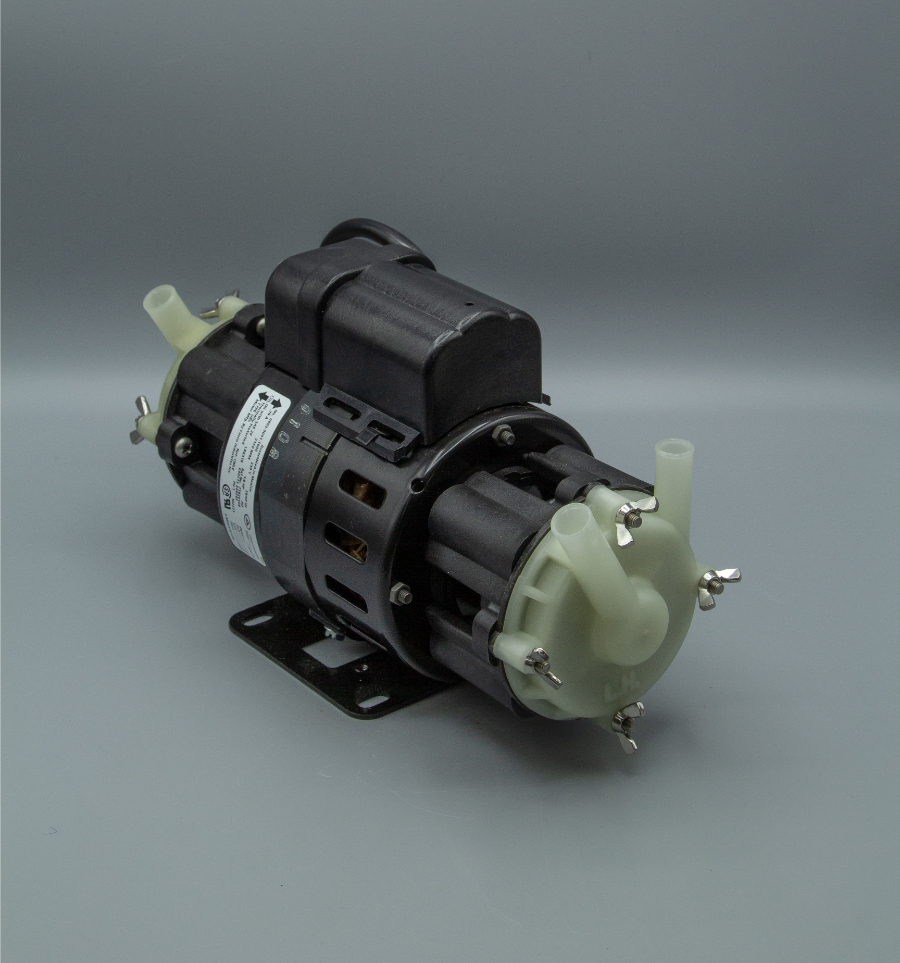

802 Dual Head Magnetic Drive Pump
March Pump’s industrial 802 is an American seal-less Dual Head centrifugal magnetic drive pump ideal for applications such as chemical recirculation and chemical transfer. It is capable of generating a maximum flow of 8 gallons per minute at 3 feet, and its maximum head is 16.5 Feet (7PSI).
|Max Flow||8 GPM||30.3 LPM|
|Max Head||16.5 FT||5 M|
|Power||0.125 HP||0.093 KW|
|Max Flow||6.9 GPM||26 LPM|
|Max Head||12.8 FT||3.9 M|
|Power||0.125 HP||0.093 KW|
- Wet End: Polypropylene (Front Housing, Impeller), Carbon Filled Kynar (Rear Housing), Ryton/Teflon/Carbon (Thrust Washer), Ethylene Propylene (O-Ring), 316 Stainless Steel (Screw), Ceramic Magnet
- P/N: 0802-0036-0700
- Note: Product image may be different than actual product received.
- *: This product has been discontinued. This page is online for technical assistance.
Pump Curves & General Installation Sheets
March Pump’s industrial 802 is an American seal-less Dual Head centrifugal magnetic drive pump ideal for applications such as chemical recirculation and chemical transfer. It is capable of generating a maximum flow of 8 gallons per minute at 3 feet, and its maximum head is 16.5 Feet (7PSI). The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, carbon filled Kynar (PVDF), Ryton/Teflon/Carbon, Ethylene Propylene, Stainless Steel, and Ceramic Magnet. The inlet connection is 1/2 inch smooth, and the outlet is 1/2 inch smooth. The standard motor is a 1 Phase 230V 0.125 Horsepower fan cooled motor, which can be run on either 50 or 60 hertz (there are performance differences between the hertz options). The maximum internal pressure the pump can tolerate is 50PSI, and the maximum liquid temperature is 190 Fahrenheit or 87 Celsius. The March 802 centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March 802 is suitable for your application, please contact March Pump.
Perfect for Applications Including
The 802 dual head magnetic drive pump is ideal for applications requiring simultaneous pumping of two different solutions.
Great for Chemicals Including
The 802 has pumped Developers for the Photographic Industry. The 802 may have been modified to handle these chemicals. Please contact March Pump to review your application before using the 802 for any of the above listed chemicals.
Request Additional Product Info
Information on this website may contain technical inaccuracies or typographical errors. Information may be changed or updated without notice. March may also make improvements and/or changes in the products described in this information at any time without notice.
