TE-8K-MD-HF Magnetically Coupled Pump
March Pump’s industrial TE-8K-MD-HF is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 150 gallons per minute at 15 feet, and its maximum head is 95 Feet (41PSI).
|Max Flow||150 GPM||--|
|Max Head||95 FT||--|
|Max Flow||--||470 LPM|
|Max Head||--||20 M|
- Inlet: 2"MPT
- Outlet: 1-1/2"MPT

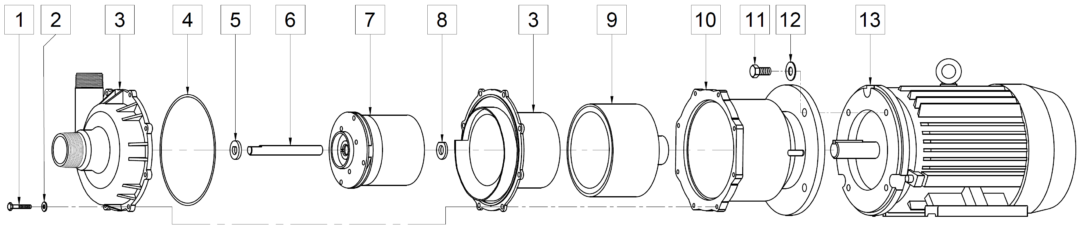

- Wet End: Glass filled Kynar (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing)
- Motor Options: Available in 5HP Explosion Proof and 575V
- P/N: 0157-0109-0100 with Metal Motor Bracket
- P/N: 0157-0133-0100 with Plastic Motor Bracket
- Note: Product image may be different than actual product received.
