TE-7S-MD 1&3 Ph Magnetic Drive Pump
March Pump’s industrial TE-7S-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 53 gallons per minute at 10 feet, and its maximum head is 57.5 Feet (25PSI)
Unit System |
60Hz US |
Metric |
---|---|---|
Max Flow | 53 GPM | 200 LPM |
Max Head | 57.5 FT | 17.5 M |
Power | 1 HP | 0.745 KW |
50Hz US |
Metric |
47.5 GPM | 180 LPM |
39.4 FT | 12 M |
1 HP | 0.745 KW |
- Wet End: 316 Stainless Steel (Front Housing, Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing)
- Additional Motor Options: Available in 1HP, 1.5HP, 1HP Explosion Proof, 1.5HP Explosion Proof, or Washdown
- Max Internal Pressure: 200 PSI / 13.7 bar
- Max Liquid Temperature: 250 °F / 121 °C
- Note: Product image may be different than actual product received.
Pump Curves & General Installation Sheets
Part Numbers

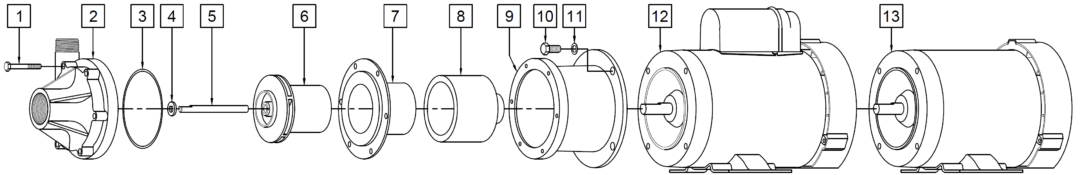

Parts Breakdown
Options
Dimensional Drawings
Motor Information
Perfect for Applications Including
Applications for the TE-7S-MD Magnetic Drive Pump include chemical recirculation, chemical transfer, refrigerators, scrubber systems, detergent mixers, computer cooling, carbon arc furnace cooling, silver recovery systems, and marine air conditioners.
Great for Chemicals Including
The TE-7S-MD has pumped Acetic Acid, Citric Acid, Ethylene Glycol, Formaldehyde, Potassium Chloride, Potassium Hydroxide, Sodium Chloride, Sodium Hydroxide (Caustic Soda), Fresh Water, Salt Water, and many more chemicals. The TE-7S-MD may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the TE-7S-MD. Chemical Resistance Chart
Summary Paragraph
March Pump’s industrial TE-7S-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 53 gallons per minute at 10 feet, and its maximum head is 57.5 Feet (25PSI). The standard wet end (the materials that come into contact with the solution) is composed of 316 Stainless Steel, Viton, Carbon, and Ceramic. The inlet connection is 1-1/2 inch female pipe thread, and the outlet is 1 inch male pipe thread. There are two standard motors. The first is a 1 Phase 60 hertz 115/208/230V and 50 hertz 110/220V 1 horsepower totally enclosed fan cooled motor. The second is a 3 Phase 60 hertz 208/230/460V and 50 hertz 190/380V 1 horsepower totally enclosed fan cooled motor. There are performance differences between the hertz options. The maximum internal pressure the pump can tolerate is 200PSI, and the maximum liquid temperature is 250 Fahrenheit or 121 Celsius. The March TE-7S-MD centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March TE-7S-MD is suitable for your application, please contact March Pump.
Request Additional Product Info
