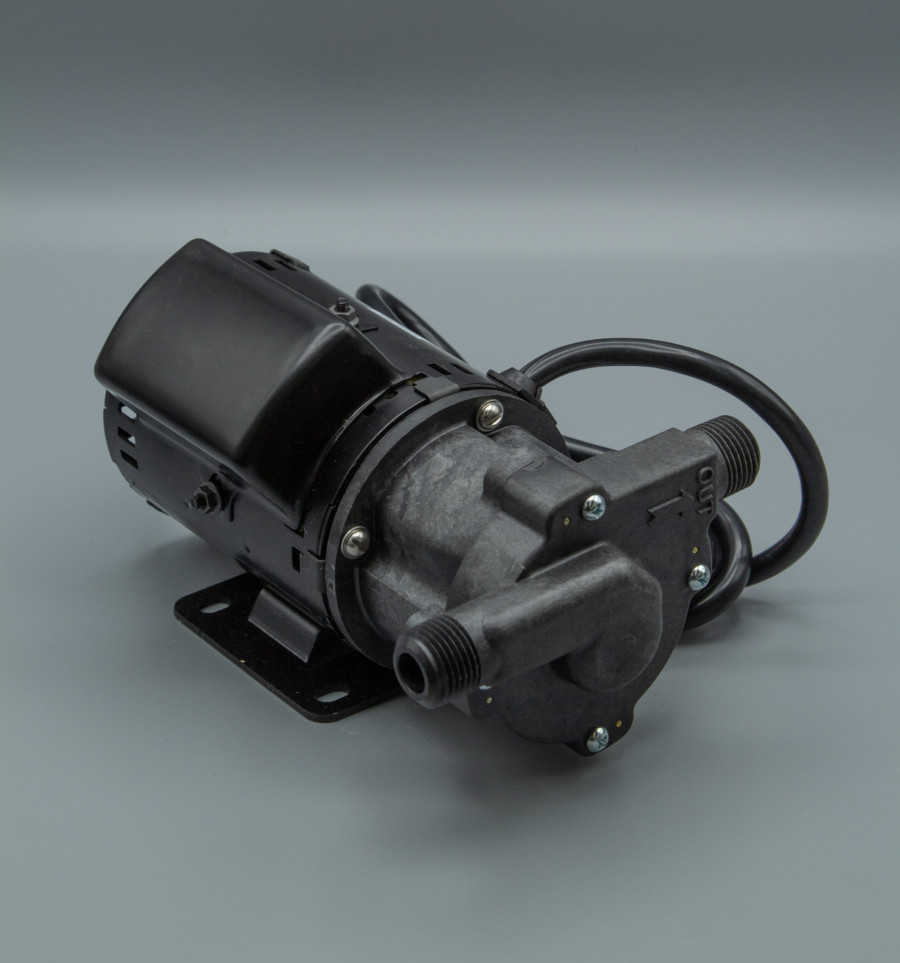

815-PL Beer Magnetic Drive Pump
March Pump’s 815-PL Beer Pump is an American seal-less centrifugal magnetic drive pump ideal for home brewing. It is capable of generating a maximum flow of 7 gallons per minute at 4.5 feet, and its maximum head is 18.6 Feet (8PSI).
|Max Flow||7 GPM||22.7 LPM|
|Max Head||18.6 FT||4.1 M|
|Power||.04 HP||.029 KW|
|Max Flow||6 GPM||26.5 LPM|
|Max Head||13.5 FT||5.7 M|
|Power||.04 HP||.029 KW|
- Wet End: Polysulfone (Front Housing), Stainless Steel (Rear Housing and Shaft), Teflon (Thrust Washer), Silicone (O-Ring), Ryton/Teflon/Glass (Impeller)
- Materials are FDA Food Compliant: Components are UL Recognized
- Max Internal Pressure: 50 PSI / 3.4 bar
- Max Liquid Temperature: 250 °F / 121 °C
- Note: Product image may be different than actual product received.
Pump Curves & General Installation Sheets

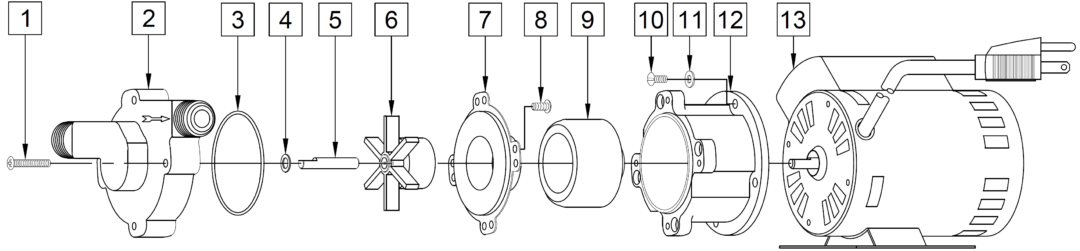

|P/N||Pump Description||Modified With|
|0809-0196-0600||815-PL 115V Beer Pump||Standard|
|0809-0196-0600||1||815-PL, 1 Phase, 115V, Complete Standard Pump|
|1||0923-0003-1000||4||#8-32 x 1" Long Housing Screw (Steel)|
|2||0809-0079-0100||1||Pump Housing with Inline Inlet & Outlet (Polysulfone)|
|3||0809-0027-1000||1||1/16" CS x 2-3/8" ID "O" Ring (Silicone)|
|4||0809-0043-1000||1||Thrust Washer (Teflon)|
|5||0809-0161-1000||1||"D" Flat Shaft (Stainless)|
|6||0809-0107-0200||1||2-5/32" Diameter Impeller (Ryton/Teflon/Glass)|
|7||0809-0012-1000||1||Rear Housing (Stainless)|
|8||0135-0040-1000||4||#8-32 x 3/8" Long Rear Housing Screw (Stainless)|
|10||0135-0040-1000||4||#8-32 x 3/8" Long Screw (Stainless)|
|11||0858-0004-1000||4||#8 Washer (Stainless)|
|12||0809-0058-1000||1||Motor Bracket (Plastic)|
|13||0809-0218-1000||1||Motor, 1 Phase, 115V, 50/60 Hz, with Base|
|0750-1011-1000||1||Stainless Steel Tag w/Customer's Desired Information (Not Shown)|
6 Foot Cord and Plug
60Hz: 1Ph 115V 0.04HP / 0.029kW, 0.5 AMPS, 3450 RPM
50Hz: 1Ph 115V 0.04HP / 0.029kW, 0.4 AMPS, 2850 RPM
Great for Chemicals Including
The 815-PL Beer Pump has pumped Hot Water and Hot Wort. The 815-PL Beer Pump may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the 815-PL Beer Pump.
March Pump’s 815-PL Beer Pump is an American seal-less centrifugal magnetic drive pump ideal for home brewing. It is capable of generating a maximum flow of 7 gallons per minute at 4.5 feet, and its maximum head is 18.6 Feet (8PSI). The standard wet end (the materials that come into contact with the solution) is composed of Polysulfone, Stainless Steel, Teflon, Silicone and Ryton/Teflon/Glass. The inlet connection is 1/2 inch male pipe thread, and the outlet is 1/2 inch male pipe thread. The standard motor is a 1 Phase 115V or 230V 0.04 Horsepower fan cooled motor, which can be run on either 50 or 60 hertz (there are performance differences between the hertz options). The 815-PL Beer Pump motor has a six foot cord, a plug, and a base. The maximum internal pressure the pump can tolerate is 50PSI, and the maximum liquid temperature is 250 Fahrenheit or 121 Celsius. To determine if the March 815-PL Beer Pump is suitable for your application, please contact March Pump.
