TE-7SSB-MD Magnetic Drive Pump
March Pump’s TE-7SSB-MD Beer Pump is an American seal-less centrifugal magnetic drive pump ideal for food and beverage industry applications. It is capable of generating a maximum flow of 53 gallons per minute at 10 feet, and its maximum head is 57.5 Feet (25PSI).
| Unit System |
60Hz US |
Metric |
|---|---|---|
| Max Flow | 53 GPM | 200 LPM |
| Max Head | 57.5 FT | 17.5 M |
| Power | 1 HP | .75 KW |
| 50Hz US |
Metric |
| 47.5 GPM | 180 LPM |
| 39.4 FT | 12.3 M |
| 1 HP | .75 KW |
- Wet End: 316 Stainless Steel (Front Housing, Rear Housing, Shaft), Glass Filled Kynar (Impeller), EPDM (O-Ring), Ceramic (Thrust Washers), Carbon (Bushing)
- Additional Motor Options: Available in Explosion Proof or Washdown
- Max Internal Pressure: 200 PSI / 13.7 bar
- Max Liquid Temperature: 225 °F / 107 °C
- Motor Options: Available in 3/4HP, 1HP, 1.5HP, 1HP Explosion Proof or 1.5HP Explosion Proof.
- Materials are FDA Food Compliant: Components are UL Recognized. Motors have UL File Numbers
- Note: Product image may be different than actual product received.
Pump Curves & General Installation Sheets
Part Numbers

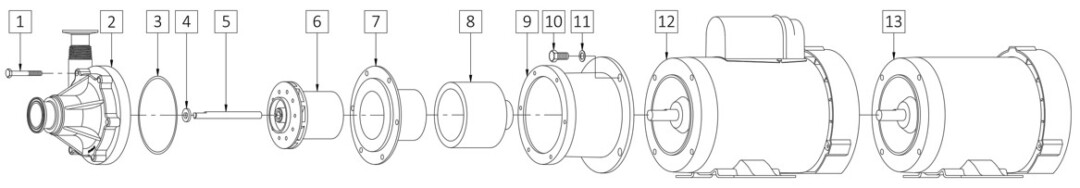

Parts Breakdown
Options
Dimensional Drawings
Motor Information
Great for Chemicals Including
The TE-7SSB-MD Beer Pump has pumped Hot Water and Hot Wort. The TE-7SSB-MD Beer Pump may have to modified to handle other chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the TE-7SSB-MD Beer Pump.
Summary Paragraph
March Pump’s TE-7SSB-MD Beer Pump is an American seal-less centrifugal magnetic drive pump ideal for homebrewing. It is capable of generating a maximum flow of 53 gallons per minute at 10 feet, and its maximum head is 57.5 Feet (25PSI). The standard wet end (the materials that come into contact with the solution) is composed of 316 Stainless Steel, Glass Filled Kynar, EPDM, Mica Teflon, and Ceramic. The inlet connection is 1.5 inch Tri Clamp, and the outlet is 1.5 inch Tri Clamp. The standard motor is a 1 Phase 115V/230V 1 Horsepower totally enclosed fan cooled motor, which can be run on either 50 or 60 hertz (there are performance differences between the hertz options). The maximum internal pressure the pump can tolerate is 200PSI, and the maximum liquid temperature is 225 Fahrenheit or 107 Celsius. To determine if the March TE-7SSB-MD Beer Pump is suitable for your application, please contact March Pump.
