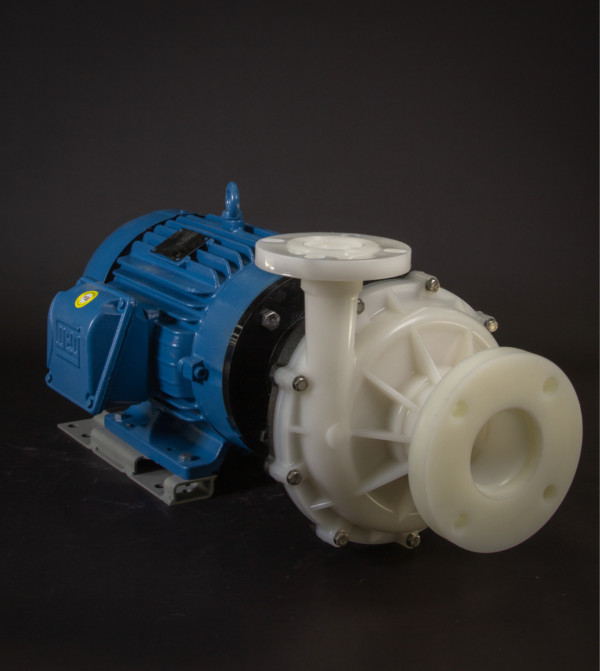

TE-10K-MD with Flanges Magnetic Drive Pump

Perfect for Applications Including

Applications for the TE-10K-MD with Flanges Magnetic Drive Pump include chemical recirculation, chemical transfer, deionized water systems, scrubber systems, detergent mixers, computer cooling, waste treatment plants, and plating operations.

Great for Chemicals Including

The TE-10K-MD with Flanges has pumped Acetic Acid, Citric Acid, Ethylene Glycol, Formaldehyde, Hydrochloric Acid (Muriatic), Hydrofluoric Acid, Hydrogen Peroxide, Nitric Acid, Phosphoric Acid, Potassium Chloride, Sodium Chloride, Sodium Hypochlorite, Sulfuric Acid, Fresh Water, Salt Water, DI Water, and many more chemicals.  The TE-10K-MD with Flanges may have been modified to handle these chemicals.  This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water.  Please contact March Pump to review your application before using the TE-10K-MD with Flanges. Chemical Resistance Chart

Summary Paragraph

March Pump’s industrial TE-10K-MD with Flanges is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 200 gallons per minute at 70 feet, and its maximum head is 160 Feet (70PSI). The standard wet end (the materials that come into contact with the solution) is composed of natural Kynar (PVDF), carbon filled Kynar (PVDF), Viton, Carbon, and Ceramic. The inlet connection is 3 inch ANSI class 150 flange, and the outlet is 2 inch ANSI class 150 flange. The standard motor is a 3 Phase 10 Horsepower totally enclosed fan cooled motor, which can be run on either 50 or 60 hertz (there are performance differences between the hertz options). The maximum internal pressure the pump can tolerate is 75PSI, and the maximum liquid temperature is 190 Fahrenheit or 87 Celsius. The March TE-10K-MD with Flanges centrifugal magnetic drive pump is capable of handling mildly, or highly corrosive chemicals, acids, and solvents. To determine if the March TE-10K-MD with Flanges is suitable for your application, please contact March Pump.
