March Pump

HTP-C-SS

March Pump’s Turbine Pump is a magnetic drive pump. It is capable of generating a maximum flow of 3 gallons per minute at 5 feet, and its maximum head is 84 Feet (36PSI).

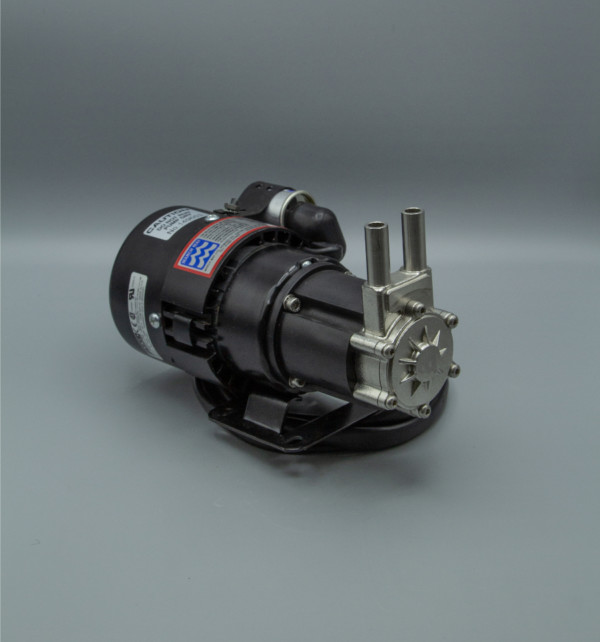

March Turbine Pump Enlarge Image
Unit
System		 60Hz
US
Metric
Max Flow 3 GPM 11.3 LPM
Max Head 84 FT 25.6 M
Power 0.125 HP 0.16 KW
Unit
System		 50Hz
US
Metric
Max Flow 2.4 GPM 9.1 LPM
Max Head 72.5 FT 22.1 M
Power 0.12 HP 0.09 KW
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 1/2"OD or 3/8" MPT
Outlet: 1/2"OD or 3/8"MPT
  • Wet End: 316 Stainless Steel (Front Housing, Rear Housing, Shaft), Ryton (Impeller), Viton (O-Ring), Ceramic (Thrust Washer)
  • Max Internal Pressure: 300 PSI / 20.7 bar
  • Max Liquid Temperature: 212 °F / 100 °C
  • Note: Product image may be different than actual product received.

Pump Curves & General Installation Sheets

Part Numbers

P/NPump DescriptionModified With
1273-0004-0100March HTP-C-SS 115V with Smooth FittingsStandard
1273-0004-0200

March HTP-C-SS 115V with 3/8″ MPT Fittings

Standard
1273-0001-0100March HTP-C-SS 230V with Smooth FittingsStandard
1273-0001-0200

March HTP-C-SS 230V with 3/8″ MPT Fittings

Standard

Motor Information

60Hz: 1Ph 239V 0.125HP/0.093kW, 0.75 AMPS, 3450 RPM
50Hz: 1Ph 239V 0.125HP/0.093kW, 0.75 AMPS, 2850 RPM

Please contact us for alternative motor data

March Pump’s Turbine Pump is a magnetic drive pump. It is capable of generating a maximum flow of 3 gallons per minute at 5 feet, and its maximum head is 84 Feet (36PSI). The standard wet end (the materials that come into contact with the solution) is composed of 316 Stainless Steel, Ryton, Viton and Ceramic. The standard inlet connection is 1/2 inch smooth, and the outlet is 1/2 inch smooth.  The pump can also be equipped with 3/8 inch male pipe thread fittings. The motor is a 1 Phase 115V 50/60Hz or 230V 50/60HZ motor.  The maximum internal pressure the pump can tolerate is 300PSI, and the maximum liquid temperature is 212 Fahrenheit or 100 Celsius. The March Turbine magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March Turbine Pump is suitable for your application, please contact March Pump.

Please Contact us for 3D drawings and drawings of Pumps with alternative motors.
