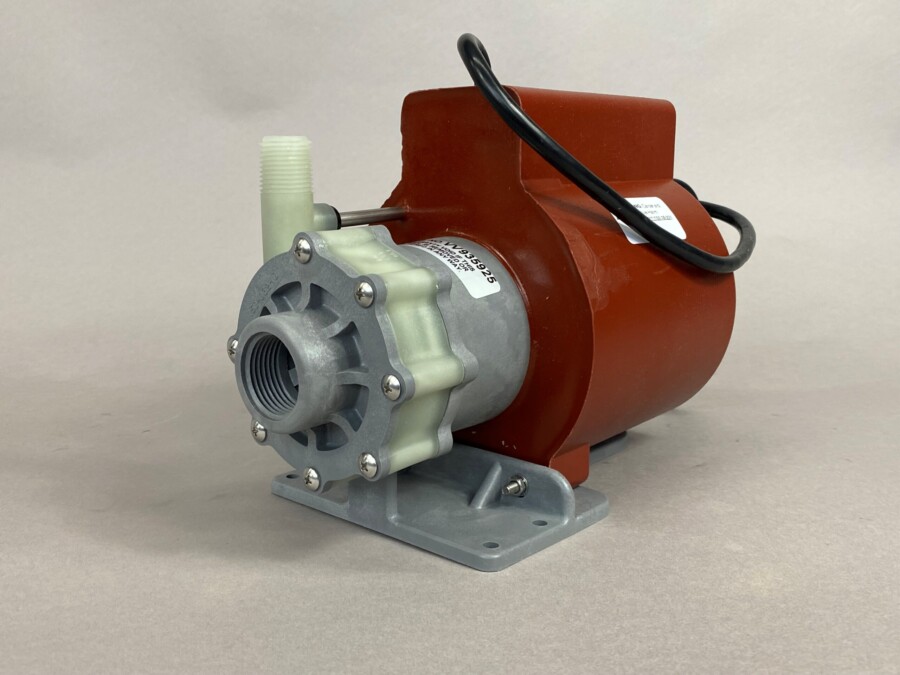

LC-5M-MD Magnetic Drive Pump
March Pump’s industrial LC-5M-MD is an American submersible seal-less centrifugal magnetic drive marine pump. It is capable of generating a maximum flow of 15 gallons per minute at 2 feet, and its maximum head is 27 Feet (11PSI). The LC-5M-MD pump may be used submerged or not submerged. It is capable of 45,000 BTU a hour.
| Unit System |
60Hz US |
Metric |
|---|---|---|
| Max Flow | 14.5 GPM | 54.9 LPM |
| Max Head | 27 FT | 8.2 M |
| Power | 0.125 HP | 0.093 KW |
| 50Hz US |
Metric |
| 14.5 GPM | 54.8 LPM |
| 19.6 FT | 6 M |
| 0.125 HP | 0.093 KW |
- Wet End: Polypropylene (Rear Housing, Impeller), Noryl (Front Housing) Buna N (O-Ring, Cooling Tube Seal), 316 Stainless Steel (Shaft, Cooling Tube), Carbon (Impeller Bushing), Ceramic (Thrust Washers), Ceramic Magnet
- Uses: Submersible or Open Air
- When submerged, the following is also in contact with the solution: Epoxy, Noryl, Cord
- Max Internal Pressure: 25 PSI / 1.7 bar
- Max Liquid Temperature: 130 °F / 54 °C
- Ignition Protected per SAE J1171 and ISO 8846: Rated IP67
- UL Listed Motor:
- Note: Product image may be different than actual product received.
Pump Curves & General Installation Sheets
Part Numbers
Parts Breakdown
Dimensional Drawings
Motor Information
Summary Paragraph
March Pump’s industrial LC-5M-MD is an American submersible seal-less centrifugal magnetic drive marine pump. It is capable of generating a maximum flow of 15 gallons per minute at 2 feet, and its maximum head is 27 Feet (11PSI). It is capable of 45,000 BTU a hour. The LC-5C-MD pump may be used submerged or not submerged. The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, Noryl, Buna N, Stainless Steel, Carbon, Ceramic, and Ceramic Magnet. When submerged, Epoxy, Noryl, and the Cord are also in contact with the solution. The inlet connection is 1 inch female pipe thread, and the outlet is 1/2 inch male pipe thread. The standard motor is a 1 Phase 115V or 230V 0.125 Horsepower motor, which can be run on either 50 or 60 hertz (there are performance differences between the hertz options). The maximum internal pressure the pump can tolerate is 50PSI, and the maximum liquid temperature is 130 Fahrenheit or 54 Celsius.
The pump is Ignition Protected per SAE J1171 and ISO 8846. The impeller has a carbon bushing allowing the pump to run dry longer before suffering damage.
