LC-3M-MD Marine Pump
March Pump’s industrial LC-3M-MD is an American submersible seal-less centrifugal magnetic drive marine pump. It is capable of generating a maximum flow of 8.5 gallons per minute at 4 feet, and its maximum head is 19 Feet (8PSI). The LC-3M-MD pump may be used submerged or not submerged. The pump is Ignition Protected per SAE J1171 and ISO 8846, and has extended run dry protection thru the use of a carbon bushing. It is capable of 24,000 BTU a hour.
| Unit System |
60Hz US |
Metric |
|---|---|---|
| Max Flow | 8.5 GPM | 32.2 LPM |
| Max Head | 19 FT | 5.8 M |
| Power | 0.05 HP | 0.037 KW |
| 50Hz US |
Metric |
| 8.2 GPM | 31 LPM |
| 14.1 FT | 4.3 M |
| 0.05 HP | 0.037 KW |
- Wet End: Polypropylene (Front and Rear Housing, Impeller), Cupric Nickel (Cooling Tube), Buna N (O-Ring, Cooling Tube Seal), Carbon (Impeller Bushing) Ceramic (Shaft, Thrust Washer), Ceramic Magnet
- Uses: Submersible or Open Air
- When submerged, the following is also in contact with the solution: Epoxy, Stainless Steel, Polysulfone, Cord
- Max Internal Pressure: 25 PSI / 1.7 bar
- Max Liquid Temperature: 130 °F / 54 °C
- Ignition Protected per SAE J1171 and ISO 8846: Rated IP 67
- UL Listed Motor:
- Note: Product image may be different than actual product received.
Pump Curves & General Installation Sheets
Part Numbers

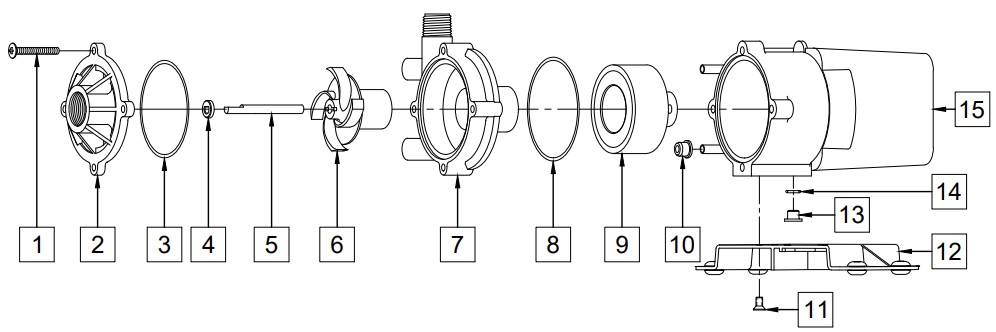

Parts Breakdown
Dimensional Drawings
Motor Information
Summary Paragraph
March Pump’s industrial LC-3M-MD is an American submersible seal-less centrifugal magnetic drive pump. It is capable of generating a maximum flow of 8.5 gallons per minute at 4 feet, and its maximum head is 19 Feet (8PSI). It is capable of 24,000 BTU a hour. The LC-3M-MD pump may be used submerged or not submerged. The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, Buna N, Cupric Nickel, Carbon, Ceramic, and Ceramic Magnet. When submerged, Epoxy, Stainless Steel, Polysulfone, and the Cord are also in contact with the solution. The inlet connection is 3/4 inch female pipe thread, and the outlet is 1/2 inch male pipe thread. The standard motor is a 1 Phase 115V or 230V 0.05 Horsepower motor, which can be run on either 50 or 60 hertz (there are performance differences between the hertz options). The maximum internal pressure the pump can tolerate is 25PSI, and the maximum liquid temperature is 130 Fahrenheit or 54 Celsius.
The pump is Ignition Protected per SAE J1171 and ISO 8846. The impeller has a carbon bushing allowing the pump to run dry longer before suffering damage.
Request Additional Product Info
Information on this website may contain technical inaccuracies or typographical errors. Information may be changed or updated without notice. March may also make improvements and/or changes in the products described in this information at any time without notice.
Warranty: March Manufacturing Inc. Warranty and Warranty Registration
