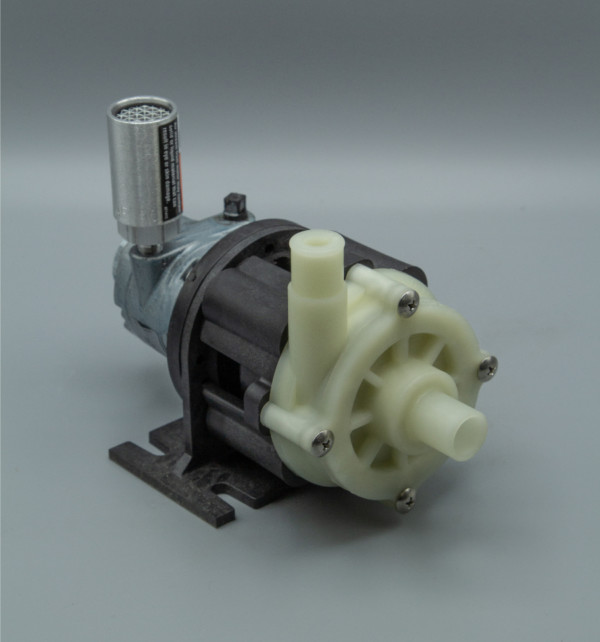

March Pumps with Air Motors are centrifugal magnetic drive pumps which have air powered motors. The maximum flow rate for these pumps is 97GPM and the max head is 86 feet. Different Wet End materials include Polypropylene, Kynar, and 316 Stainless Steel. Available inlet sizes are 3/8″, 1/2″, 3/4″, 1″, and 2″.

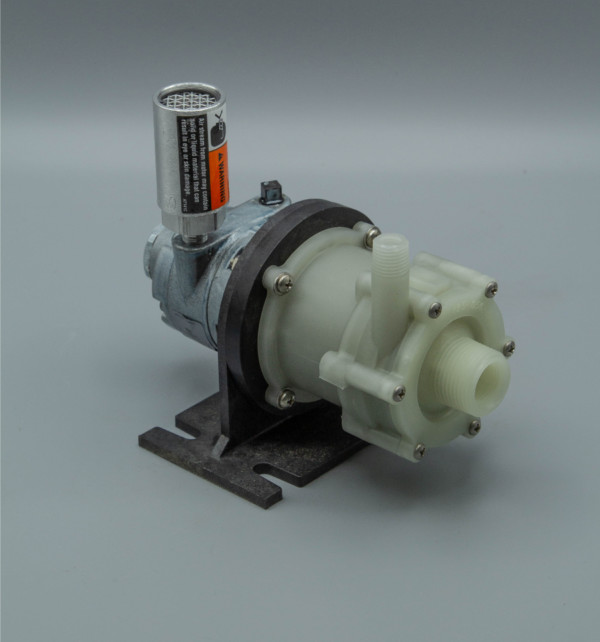

System | US | Metric |
---|---|---|
Max Flow | 7.2 GPM | 27.2 LPM |
Max Head | 40 FT | 12.1 M |
Electrical/Air: 23PSI and 4CFM
Inlet: 3/8"FPT & 3/4"MPT
Outlet: 1/4"MPT
Material: Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washer)
Unit System | 60Hz | 50Hz |
---|---|---|
Max Flow | 7.2 GPM | 27.2 LPM |
Max Head | 40 FT | 12.1 M |
Electrical/Air: 23PSI and 4CFM
Inlet: 3/8"FPT & 3/4"MPT
Outlet: 1/4"MPT
Material: Glass Filled Kynar (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washer)

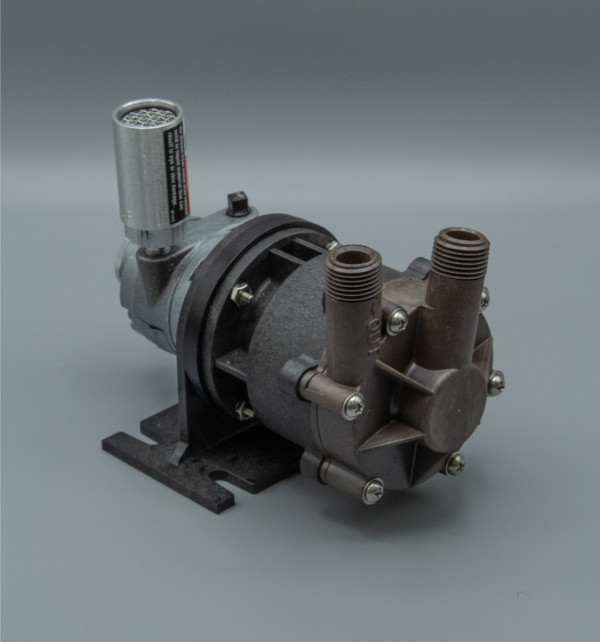

System | US | Metric |
---|---|---|
Max Flow | 9 GPM | 34 LPM |
Max Head | 28 FT | 8.8 M |
Electrical/Air: 21PSI and 3CFM
Inlet: 1/2"MPT
Outlet: 1/2"MPT
Material: Ryton (Front and Rear Housing, Impeller), Ceramic (Shaft, Thrust Washer), Viton (O-Ring)

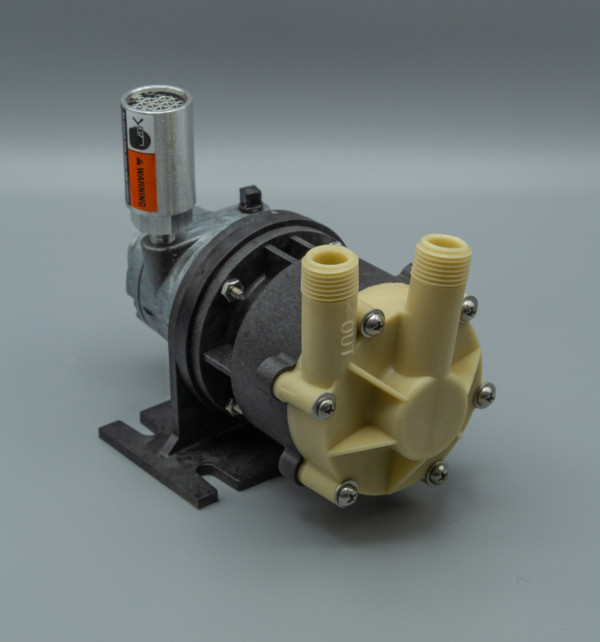

System | US | Metric |
---|---|---|
Max Flow | 9 GPM | 34 LPM |
Max Head | 28 FT | 8.5 M |
Electrical/Air: 21PSI and 3CFM
Inlet: 1/2"MPT
Outlet: 1/2"MPT
Material: Carbon filled Kynar (Front and Rear Housing, Impeller), Ceramic (Shaft, Thrust Washer), Viton (O-Ring)
System | US | Metric |
---|---|---|
Max Flow | 10.5 GPM | 39 LPM |
Max Head | 42 FT | 12.8 M |
Electrical/Air: 29 PSI or 4CFM
Inlet: 3/4"OD
Outlet: 3/4"OD
Material: Polypropylene (Front and Rear Housing. Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washer)
System | US | Metric |
---|---|---|
Max Flow | 10.5 GPM | 39 LPM |
Max Head | 42 FT | 12.8 M |
Electrical/Air: 29 PSI and 4 CFM
Inlet: 3/4"FPT
Outlet: 1/2"MPT
Material: Polypropylene (Front and Rear Housing. Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washer)
System | US | Metric |
---|---|---|
Max Flow | 18 GPM | 68 LPM |
Max Head | 50 FT | 15.2 M |
Electrical/Air: 65 PSI and 8CFM
Inlet: 1"FPT
Outlet: 1/2"MPT
Material: Polypropylene (Front and Rear Housing, Impeller), Ceramic (Shaft, Thrust Washers), Viton (O-Ring)
System | US | Metric |
---|---|---|
Max Flow | 18 GPM | 68 LPM |
Max Head | 50 FT | 15.2 M |
Electrical/Air: 65 PSI and 8CFM
Inlet: 1"OD
Outlet: 3/4"OD
Material: Polypropylene (Front and Rear Housing, Impeller), Ceramic (Shaft, Thrust Washers), Viton (O-Ring)

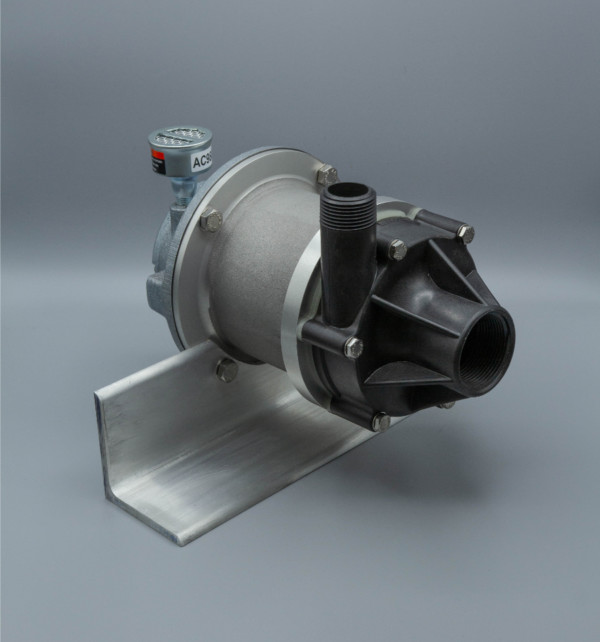

System | US | Metric |
---|---|---|
Max Flow | 18 GPM | 68 LPM |
Max Head | 50 FT | 15.2 M |
Electrical/Air: 60PSI and 7CFM
Inlet: 1"FPT
Outlet: 1/2"MPT
Material: Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers)

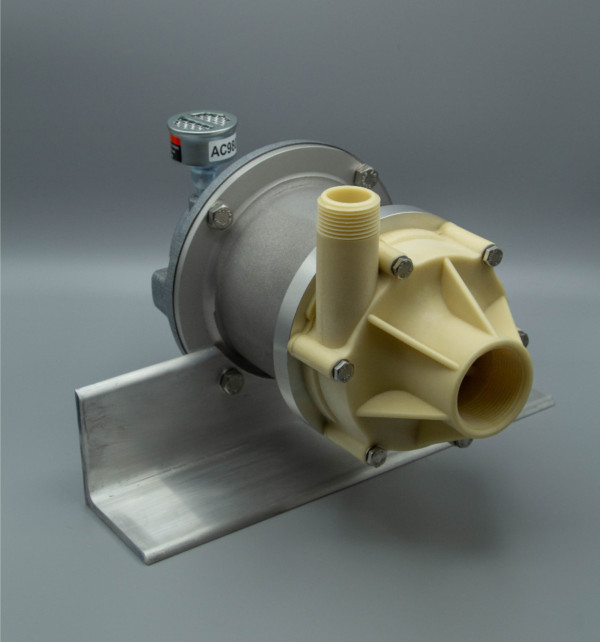

System | US | Metric |
---|---|---|
Max Flow | 18 GPM | 68 LPM |
Max Head | 50 FT | 15.2 M |
Electrical/Air: 60PSI and 7CFM
Inlet: 1"FPT
Outlet: 1/2"MPT
Material: Glass Filled Kynar (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers)
System | US | Metric |
---|---|---|
Max Flow | 18 GPM | 68 LPM |
Max Head | 50 FT | 15.2 M |
Electrical/Air: 60PSI and 7CFM
Inlet: 1"FPT
Outlet: 1/2"MPT
Material: 316 Stainless Steel (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing)

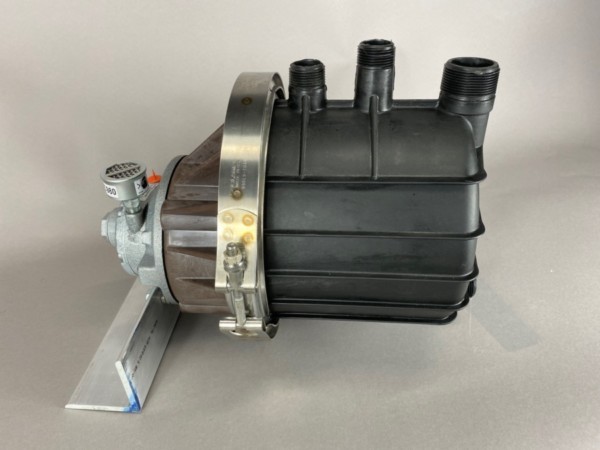

System | US | Metric |
---|---|---|
Max Flow | 18 GPM | 68 LPM |
Max Head | 50 FT | 15.2 M |
Electrical/Air: 60PSI and 7CFM
Inlet: 1"MPT (750 Self Priming Chamber)
Outlet: 1/2"MPT
Material: Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers)
System | US | Metric |
---|---|---|
Max Flow | 44 GPM | 166 LPM |
Max Head | 86 FT | 26.2 M |
Electrical/Air: 95PSI and 30 CFM
Inlet: 1-1/2"FPT
Outlet: 1"MPT
Material: Polypropylene (Impeller,Front Housing, Rear Housing), Viton (O-Ring), Ceramic (Shaft, Thrust Washer), Ryton/Teflon/Carbon (Bushing)
System | US | Metric |
---|---|---|
Max Flow | 44 GPM | 166 LPM |
Max Head | 86 FT | 26.2 M |
Electrical/Air: 95PSI and 30CFM
Inlet: 1-1/2"FPT
Outlet: 1"MPT
Material: Glass Filled Kynar (Front Housing, Rear Housing),Glass Filled Kynar (Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing)
System | US | Metric |
---|---|---|
Max Flow | 44 GPM | 166 LPM |
Max Head | 86 FT | 26.2 M |
Electrical/Air: 95PSI and 30 CFM
Inlet: 1-1/2"FPT
Outlet: 1"MPT
Material: 316 Stainless Steel (Impeller,Front Housing, Rear Housing), Viton (O-Ring), Ceramic (Shaft, Thrust Washer),Carbon (Bushing)
System | US | Metric |
---|---|---|
Max Flow | 40 GPM | 151 LPM |
Max Head | 65 FT | 19.8 M |
Electrical/Air: 95PSI and 30 CFM
Inlet: 1-1/2"MPT
Outlet: 1"MPT
Material: Polypropylene (Housings, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing)
System | US | Metric |
---|---|---|
Max Flow | 40 GPM | 151 LPM |
Max Head | 65 FT | 19.8 M |
Electrical/Air: 95PSI and 30 CFM
Inlet: 1-1/2"MPT
Outlet: 1"MPT
Material: Glass Filled Kynar (Impeller, Housings), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing)

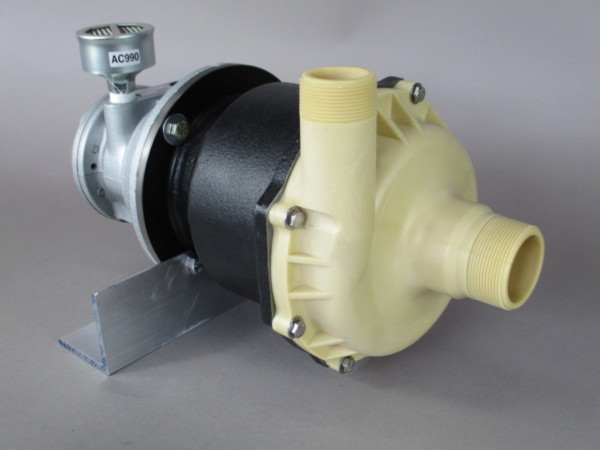

System | US | Metric |
---|---|---|
Max Flow | 68 GPM | 257 LPM |
Max Head | 65 FT | 19.8 M |
Electrical/Air: 62PSI and 130CFM
Inlet: 2"MPT
Outlet: 1-1/2"MPT
Material: Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing)
System | US | Metric |
---|---|---|
Max Flow | 68 GPM | 257 LPM |
Max Head | 65 FT | 19.8 M |
Electrical/Air: 62PSI and 130CFM
Inlet: 2"MPT
Outlet: 1-1/2"MPT
Material: Natural Kynar (Front Housing, Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing)
System | US | Metric |
---|---|---|
Max Flow | 97 GPM | 367 LPM |
Max Head | 63 FT | 19.2 M |
Electrical/Air: 65PSI and 125CFM
Inlet: 2"MPT
Outlet: 1-1/2"MPT
Material: (Front Housing, Impeller), Carbon Filled Polypropylene (Rear Housing), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Teflon/Ryton/Carbon (Bushing)
System | US | Metric |
---|---|---|
Max Flow | 97 GPM | 367 LPM |
Max Head | 63 FT | 19.2 M |
Electrical/Air: 65PSI and 125CFM
Inlet: 2"MPT
Outlet: 1-1/2"MPT
Material: Glass filled Kynar (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing)

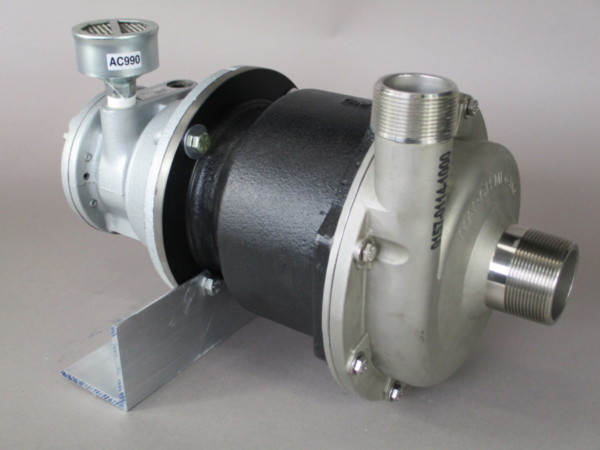

System | US | Metric |
---|---|---|
Max Flow | 97 GPM | 367 LPM |
Max Head | 63 FT | 19.2 M |
Electrical/Air: 65PSI and 125CFM
Inlet: 2"MPT
Outlet: 1-1/2"MPT
Material: 316 Stainless Steel (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers) Carbon (Bushing)
